Milbank TS10-0109 10 Pole Test Switch Configuration 0109 600V 20A

Product Description

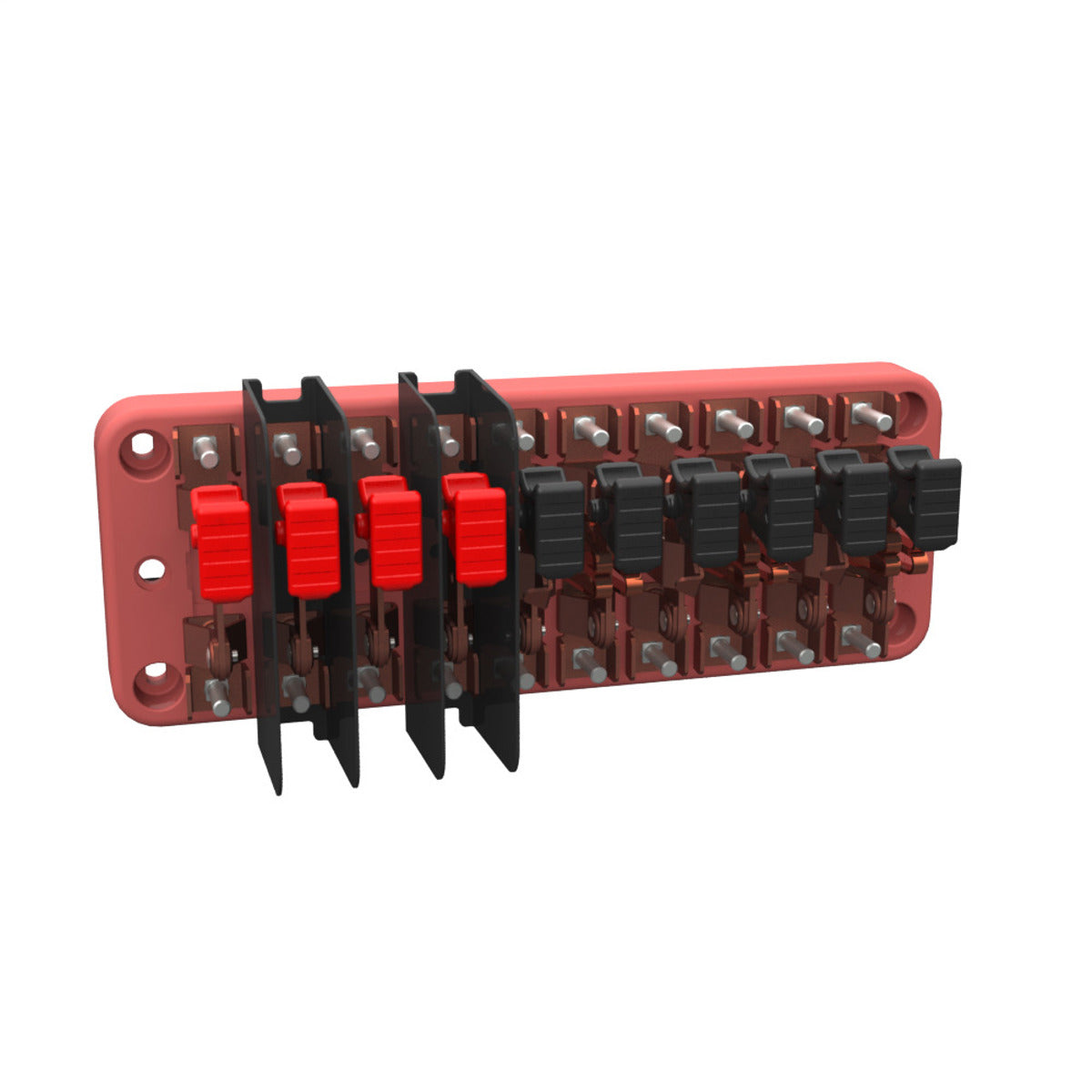

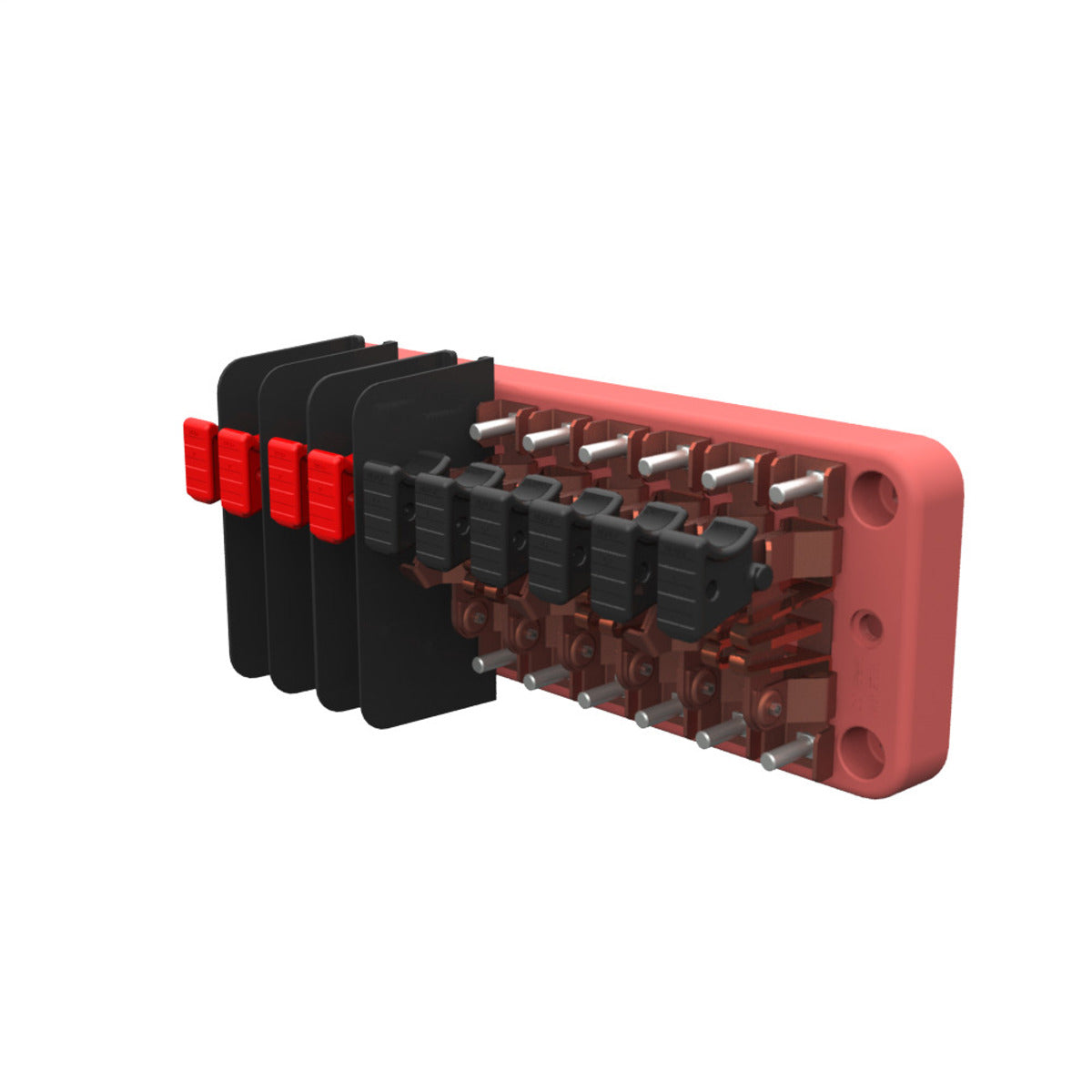

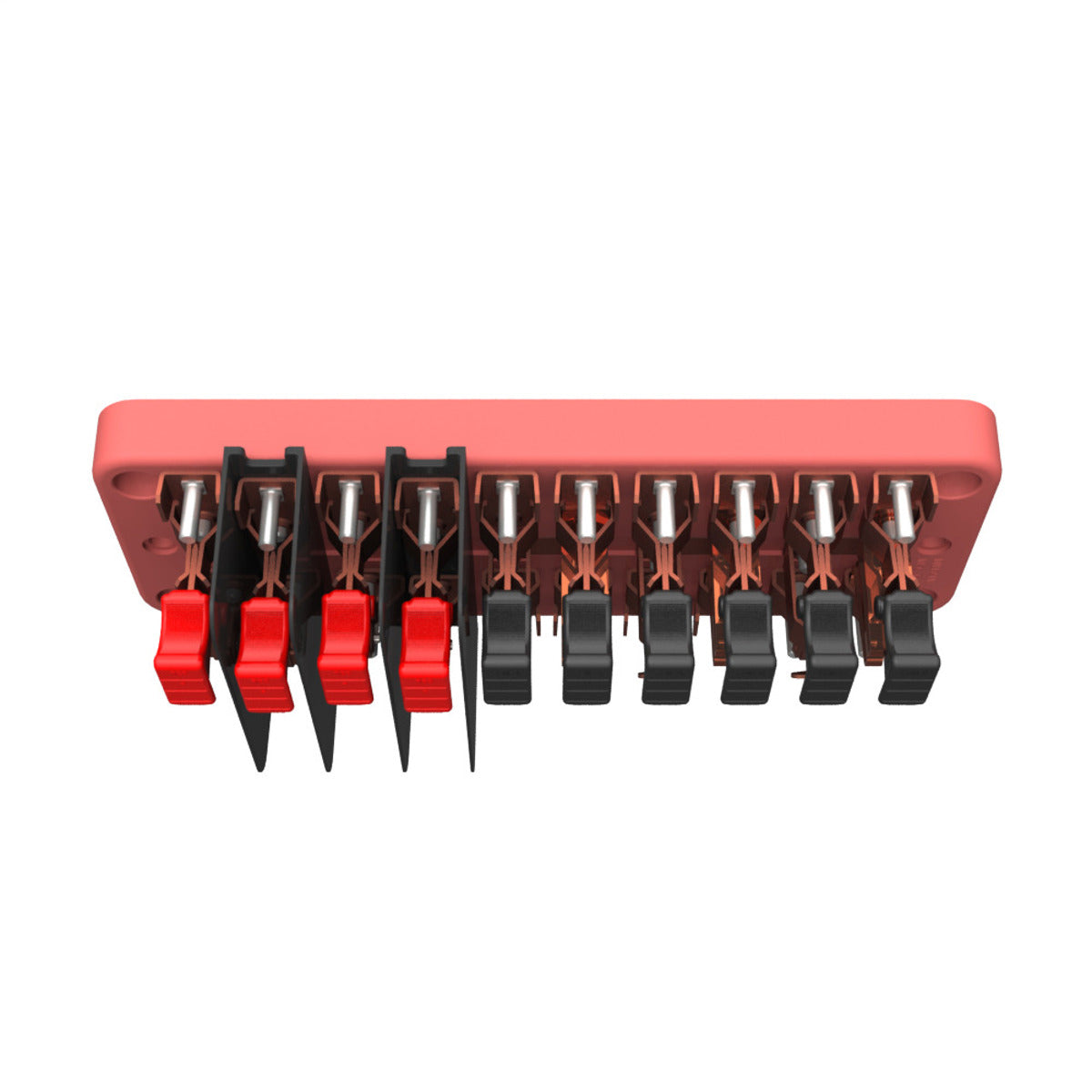

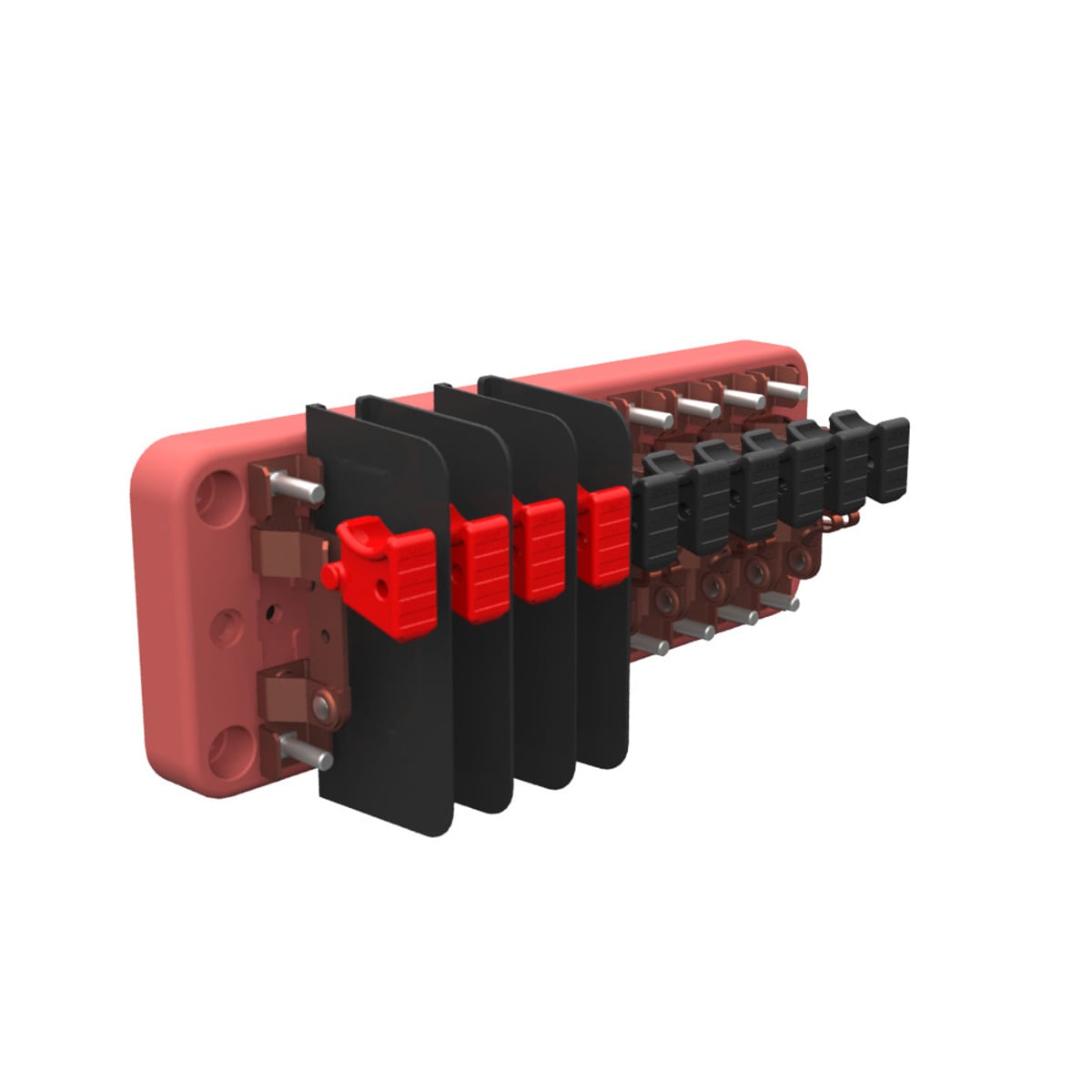

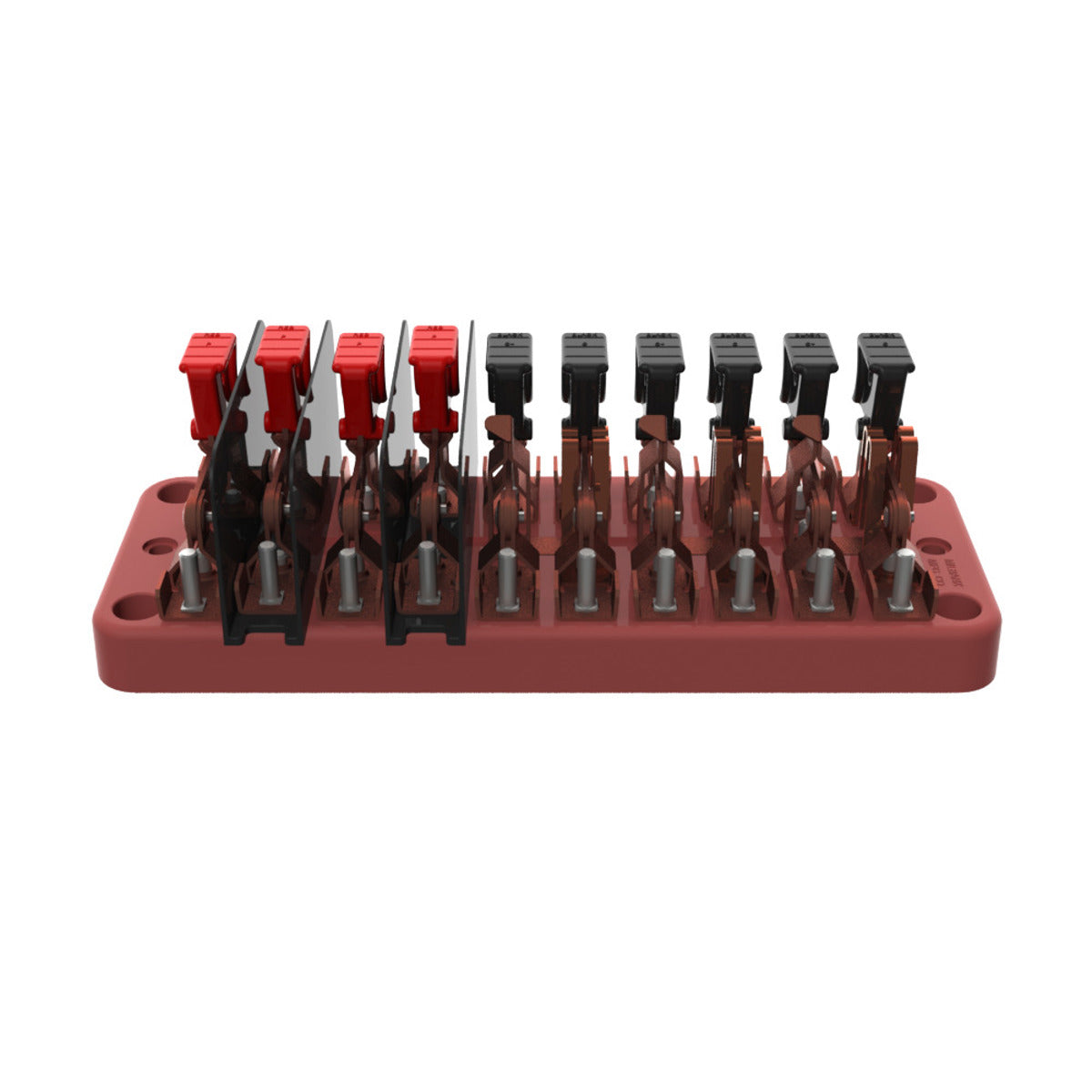

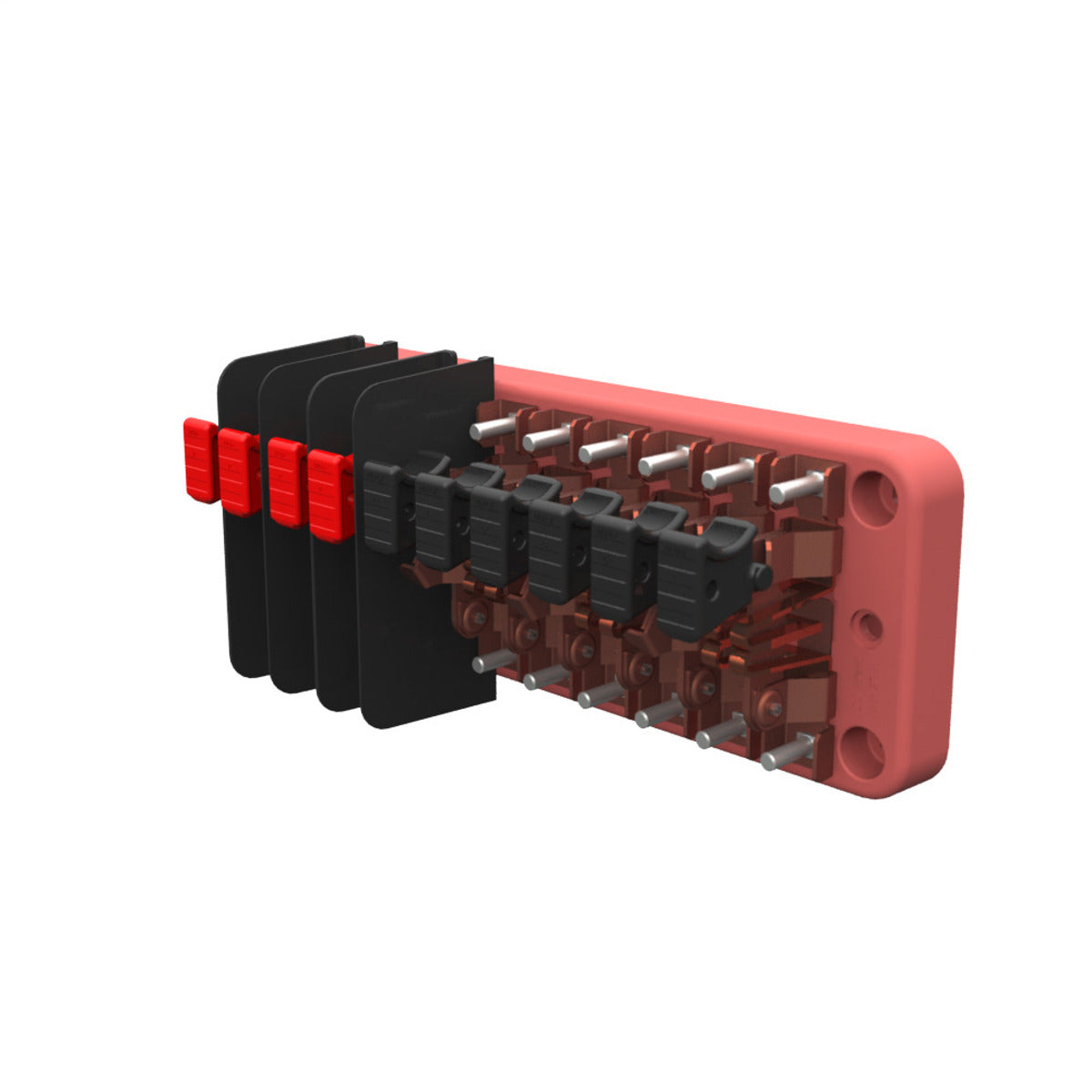

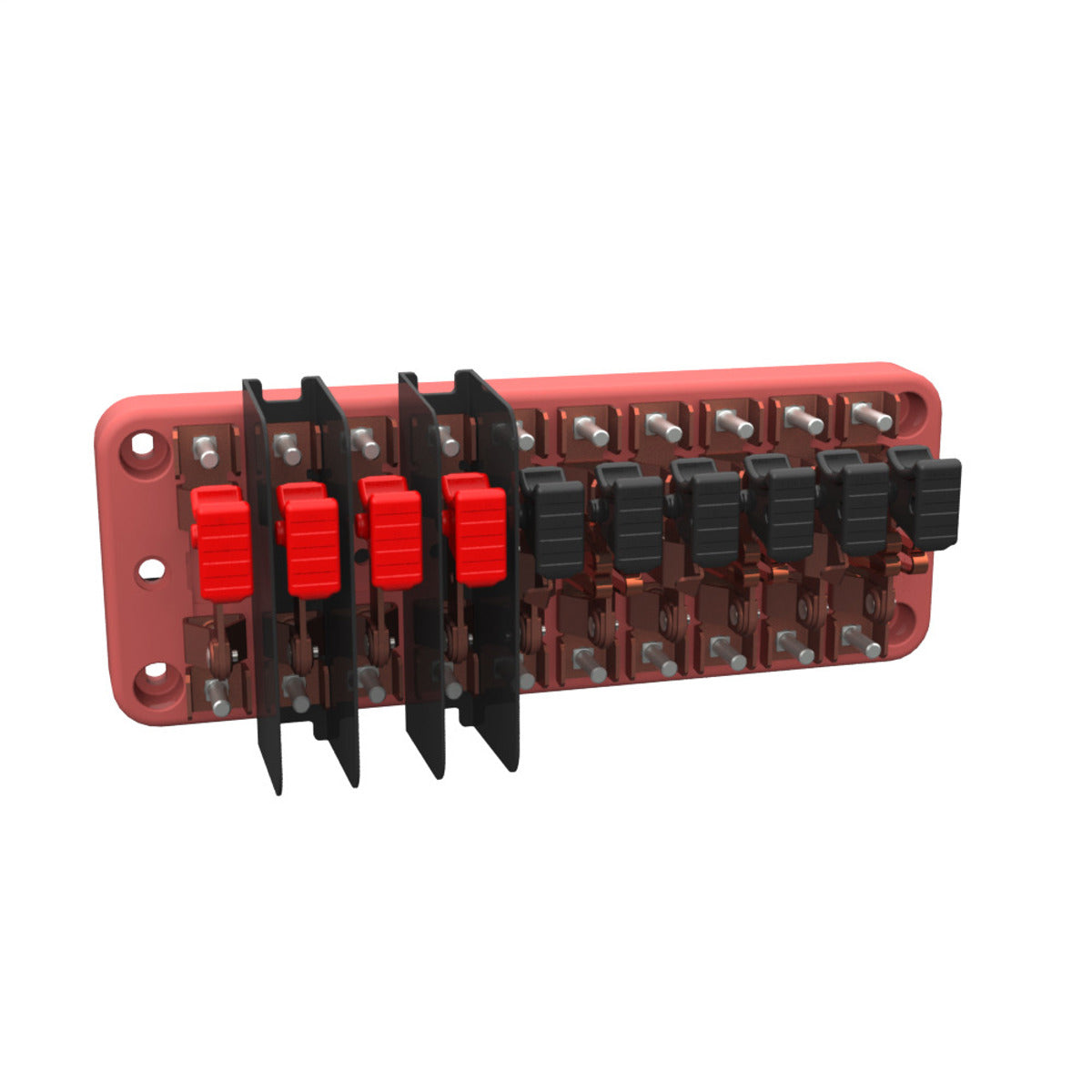

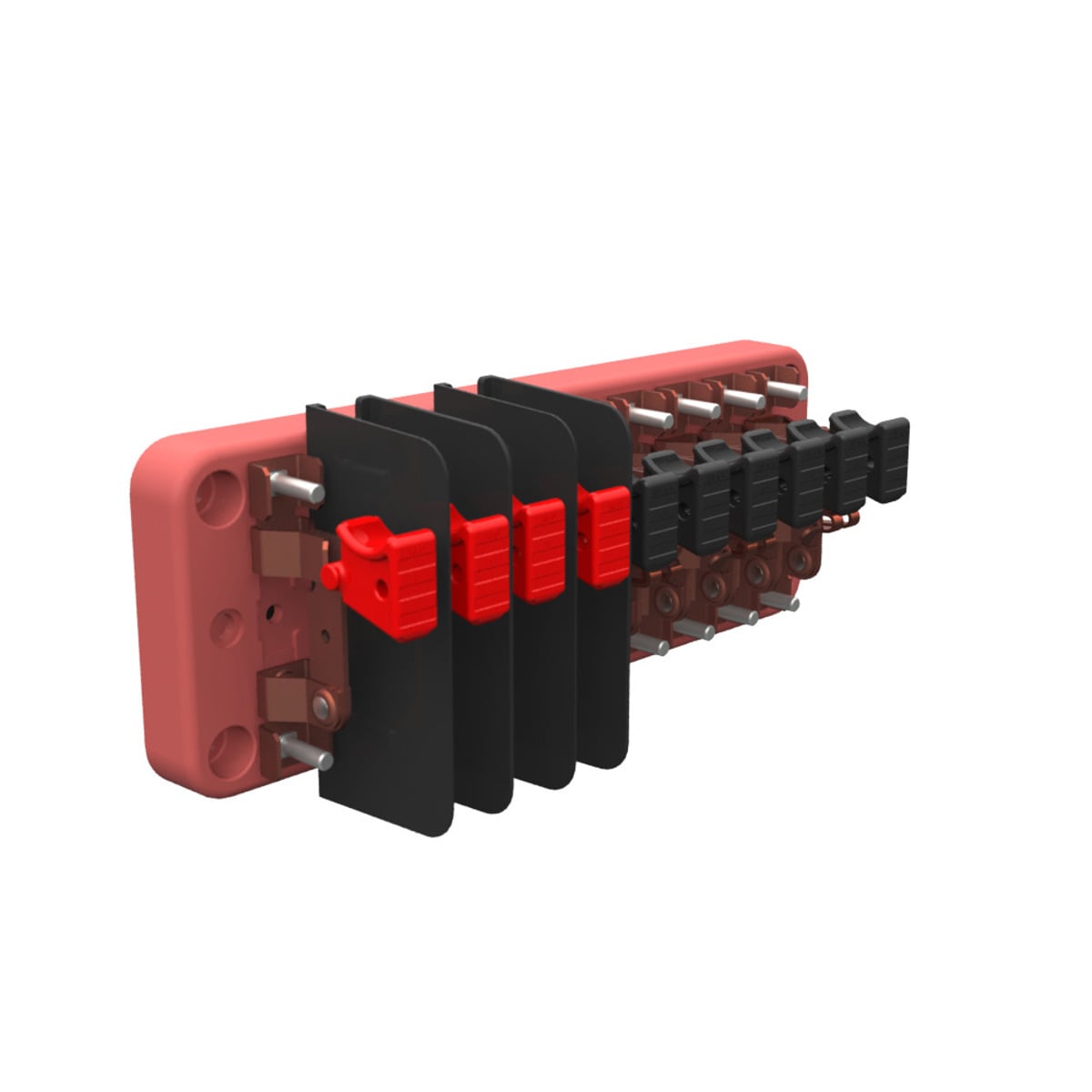

The MILBANK TS10-0109 is an instrument rated metering test switch designed for metering accessory applications. This 10-pole switch, configured as 0109, operates at 600 Volts and 20 Amperes. It features a stud connection and non-metallic insulation, constructed from bronze alloy. The switch is UL Listed, ensuring compliance with safety standards for electrical equipment.

• UL Listed for safety and compliance.
• Instrument rated for precise metering applications.
• Features 10 poles with a 20 Ampere amperage rating and 600 Volts Alternating Current voltage rating.

Product Highlights

This MILBANK TS10-0109 test switch is a UL Listed, 10-pole instrument rated device with 600V 20A capacity, ideal for metering accessory use.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: TS10-0109
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 20 A
• Application: Metering Accessory
• Connection Type: Stud
• Enclosure: No Enclosure
• Frequency: 60 Hz
• Insulation Type: Non-Metallic
• Material: Bronze Alloy
• Number of Poles: 10
• Standard: UL Listed
• Type: Instrument Rated Metering Test Switch
• Voltage Rating: 600 V
• Handle Color: Red; Red; Red; Red; Black; Black; Black; Black; Black; Black
• Pole Arrangement: Potenial; Barrier; Potential; Barrier; Potential; Barrier; Potential; Barrier; Current; Current Return; Current; Current Return; Current; Current Return
