Milbank NU8980-O-SF100-KK-LP 4 Term, Ringless, PlainTop, Horn Bypass, 1-100 Amp, Main Breaker, Single Pedestal Direct Bury, Low Profile

Brand: MILBANK
SKU: NU8980-O-SF100-KK-LP
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
LTL Delivery

This product weighs 70 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

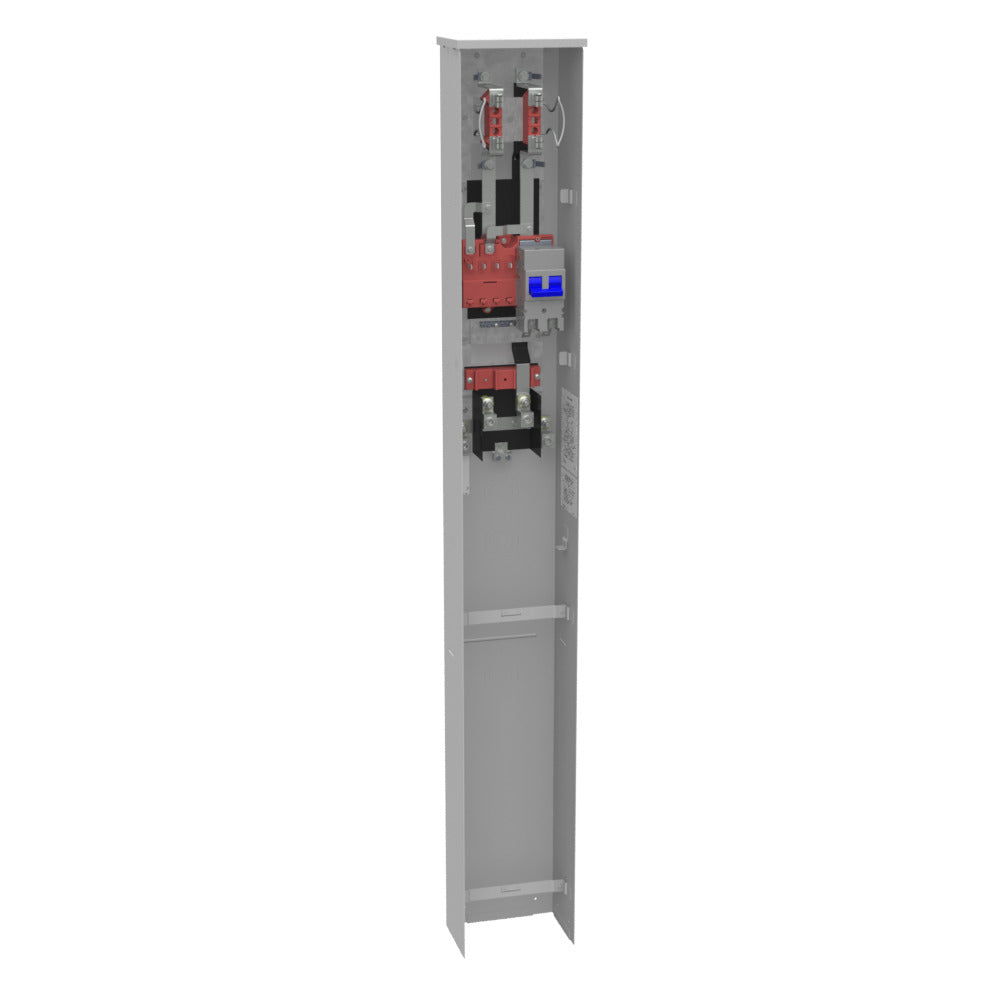

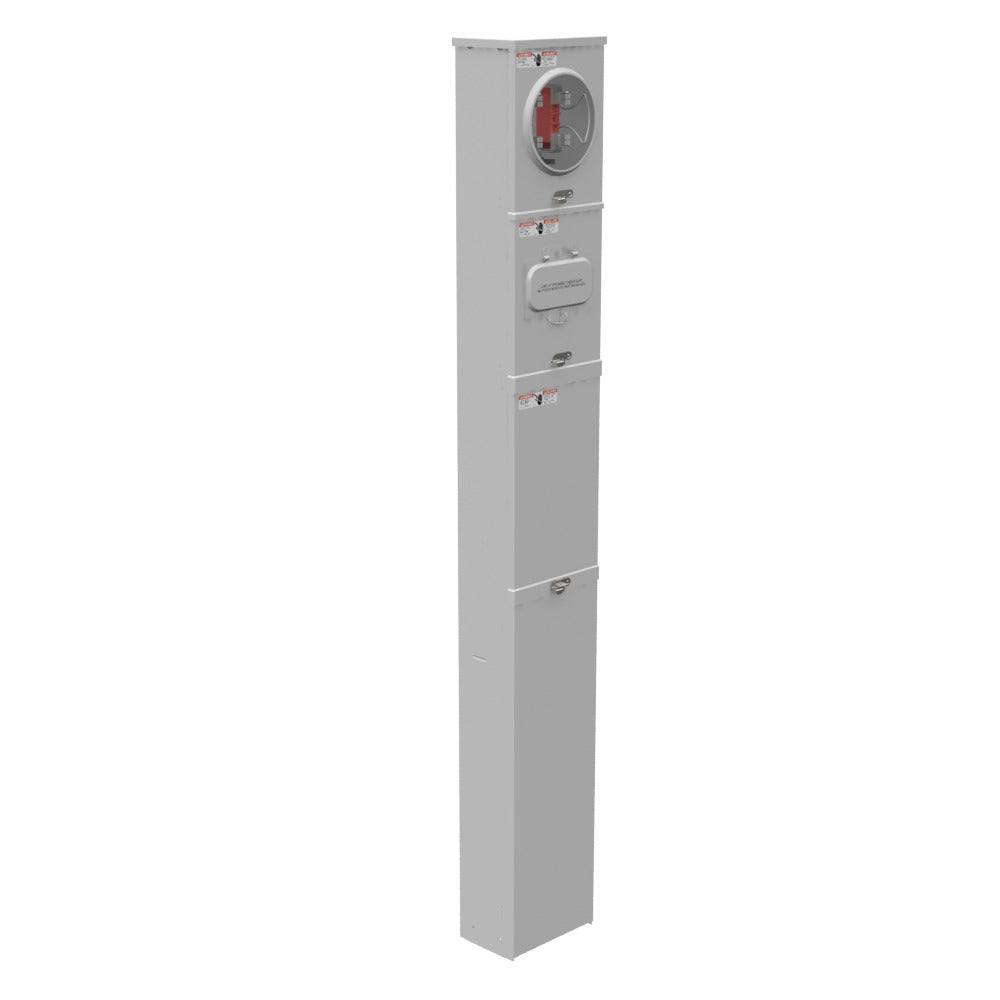

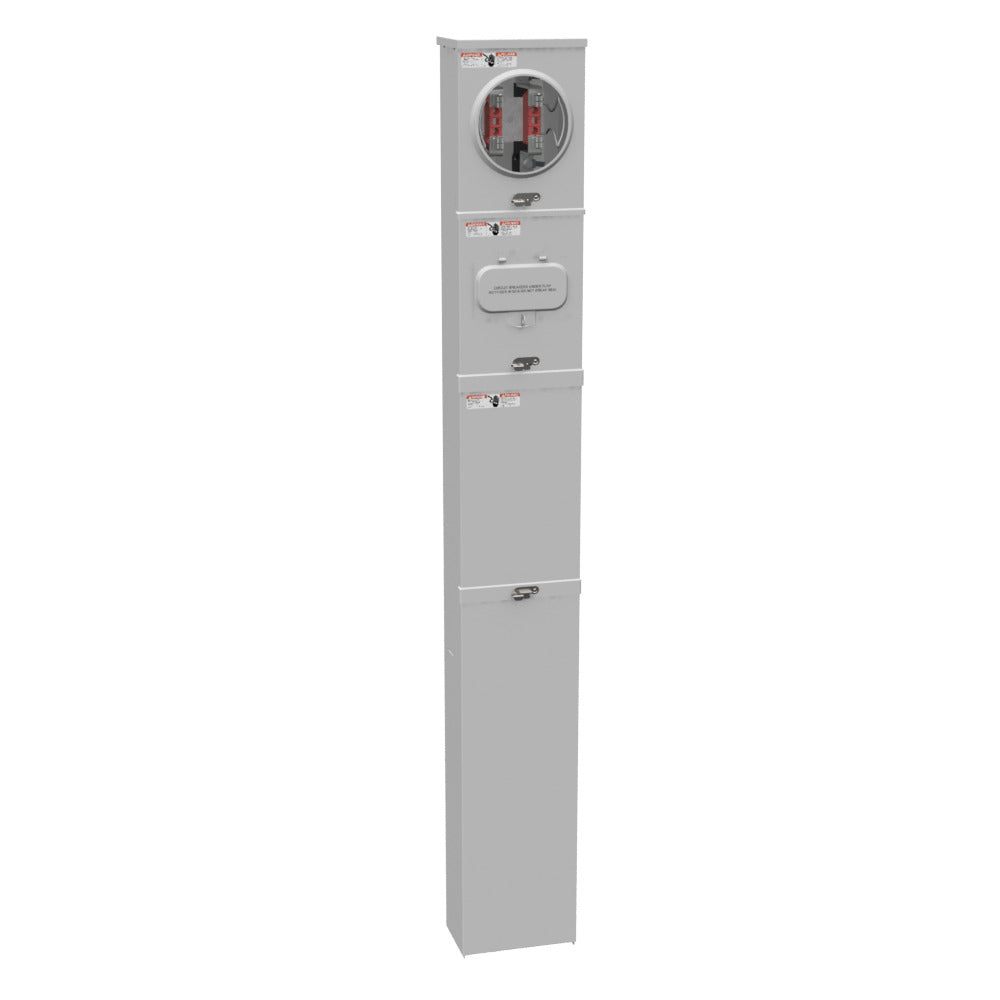

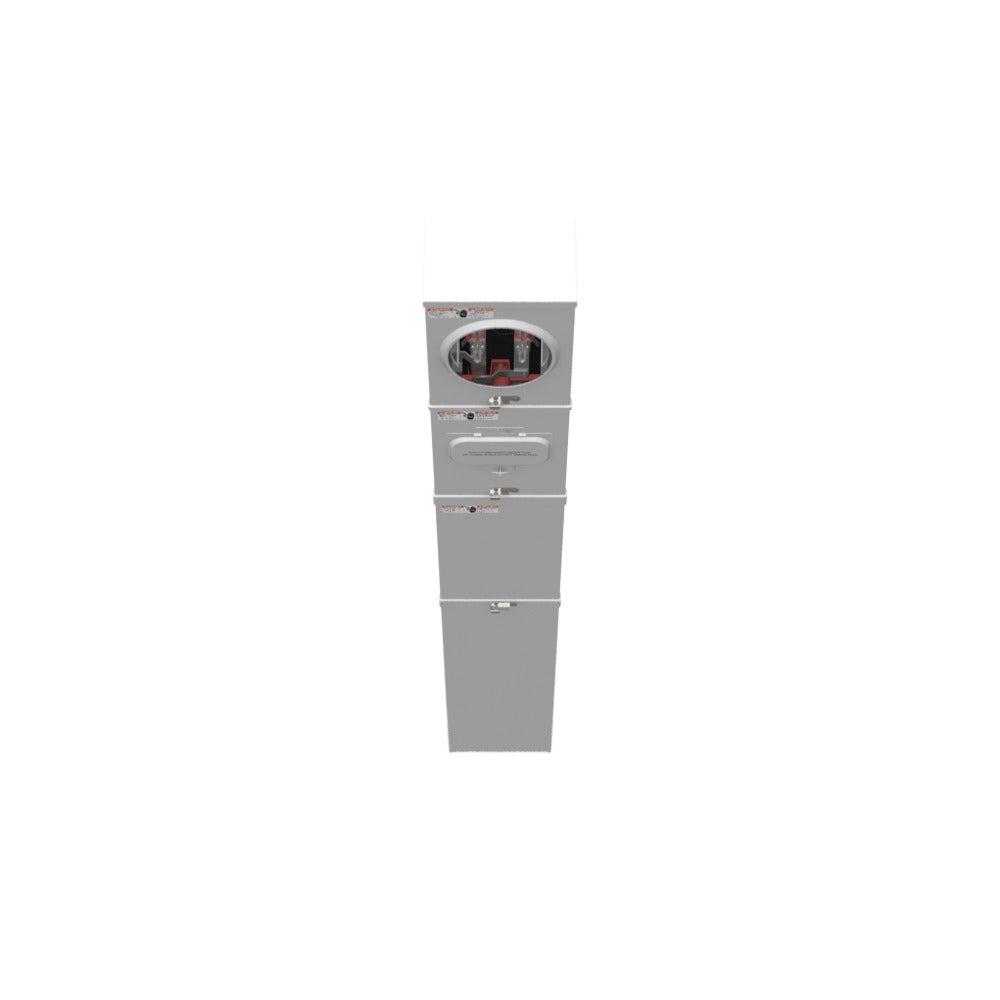

The Milbank NU8980-O-SF100-KK-LP is a ringless meter socket designed for underground applications. It includes four terminals and supports a main breaker rated for one hundred amps. This low-profile design makes it suitable for direct burial installations.

  • Rated for 200 amp amperage
  • UL Listed and conforms to Type 3R standards
  • Constructed from durable G90 galvanized steel with powder coat finish

Product Highlights

This meter socket is ideal for residential installations where space is limited. It offers a robust design, ensuring safety and reliability in electrical distribution.

Product Information

Standard Information

  • Brand: Milbank
  • Catalog Number: NU8980-O-SF100-KK-LP

Technical Specifications

  • Amperage Rating: 200
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Application: Meter Socket With Main And Load Center
  • Bypass Type: Horn
  • Cable Entry: Underground
  • Enclosure: G90 Galvanized Steel with Powder Coat Finish
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Material: G90 Galvanized Steel
  • Mounting: Pedestal
  • Number of Jaws: 4 Terminal
  • Phase: 1
  • Size: 6L x 9W x 70H
  • Standard: UL Listed; Type 3R
  • Country of Origin: United States
  • Made in USA: Yes
  • Length: 6 inches
  • Width: 9 inches
  • Height: 70 inches
