Milbank NU8980-O-KK 4 term, ringless, plain top, horn bypass, 1-200 amp, main breaker provision, single pedestal direct bury, pedestal

Product Description

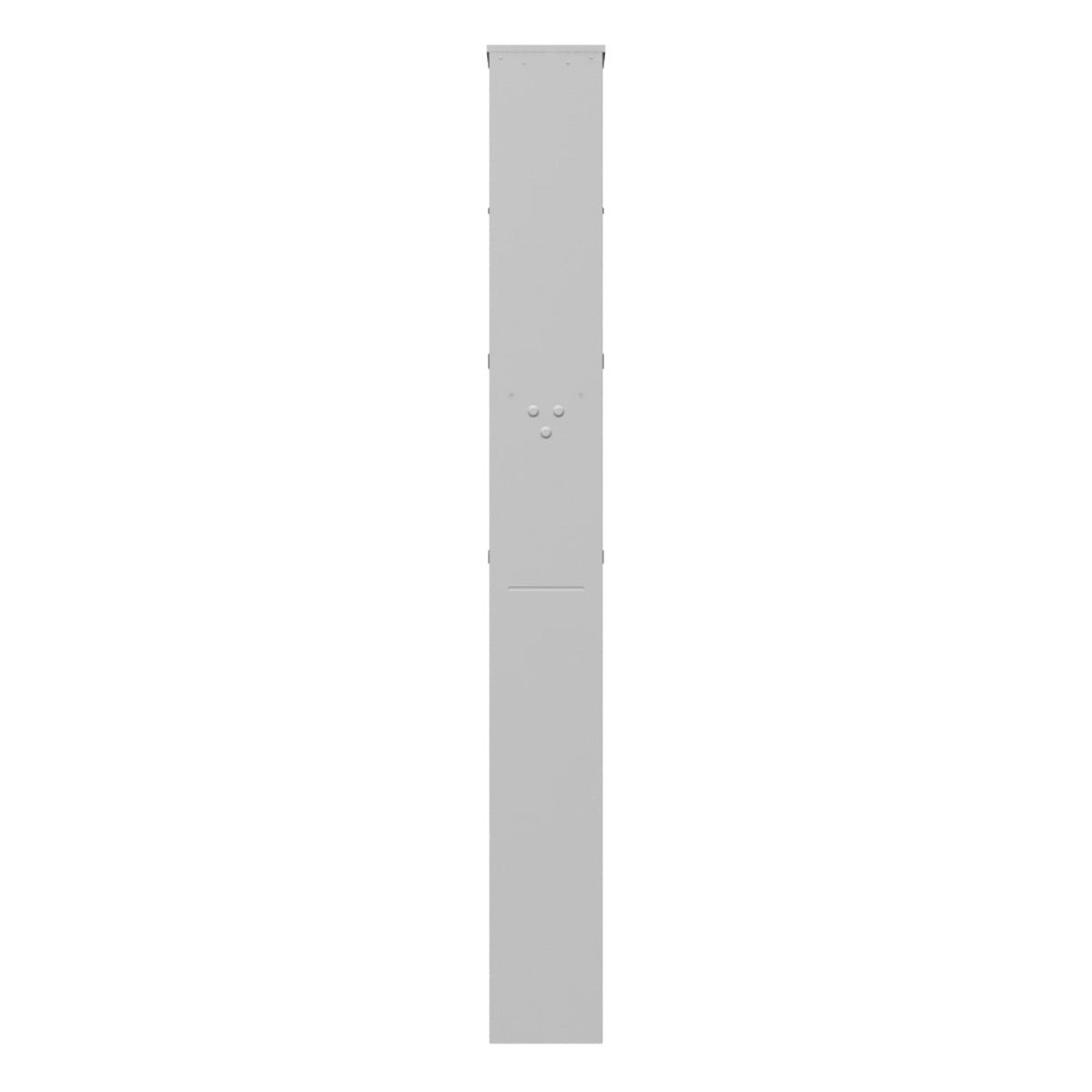

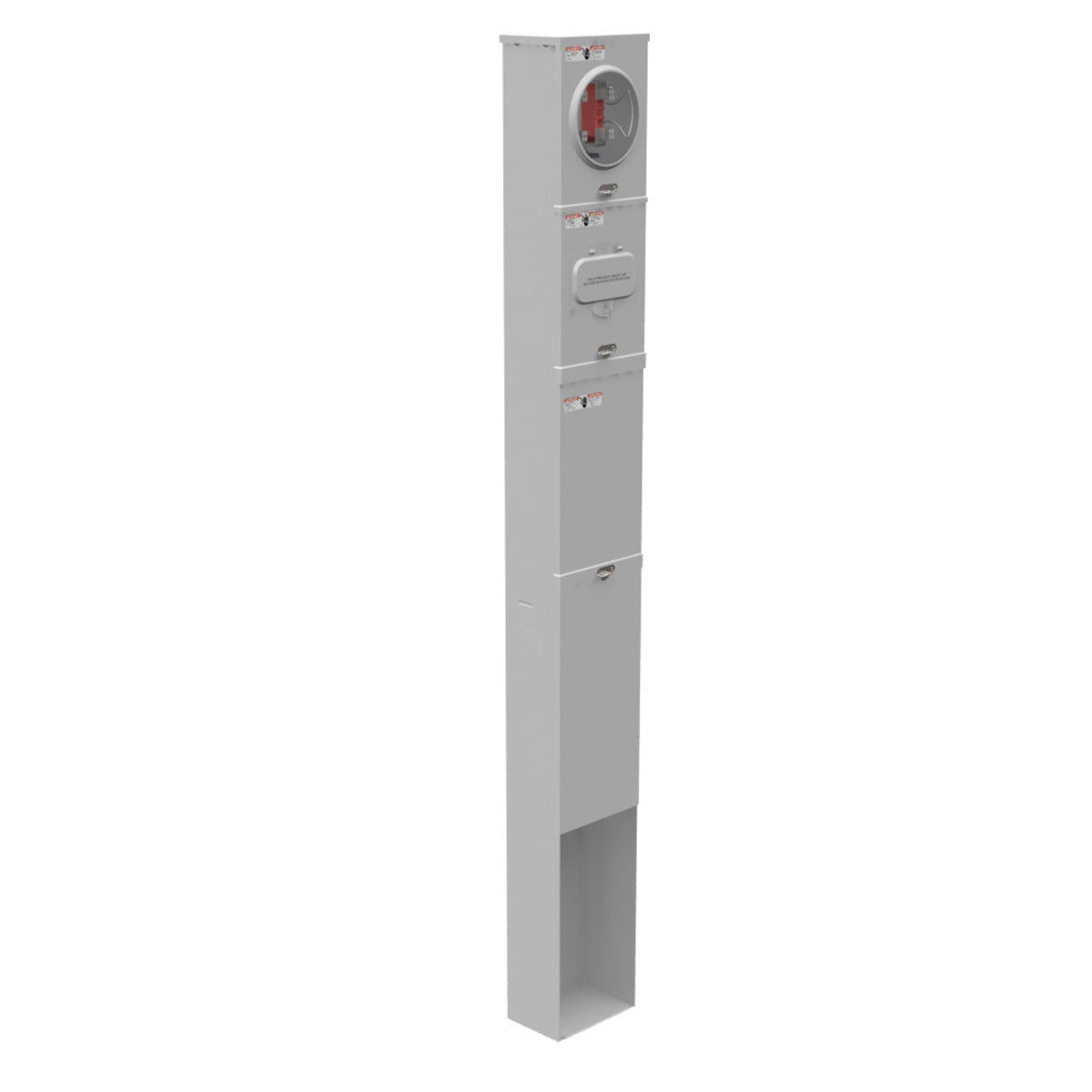

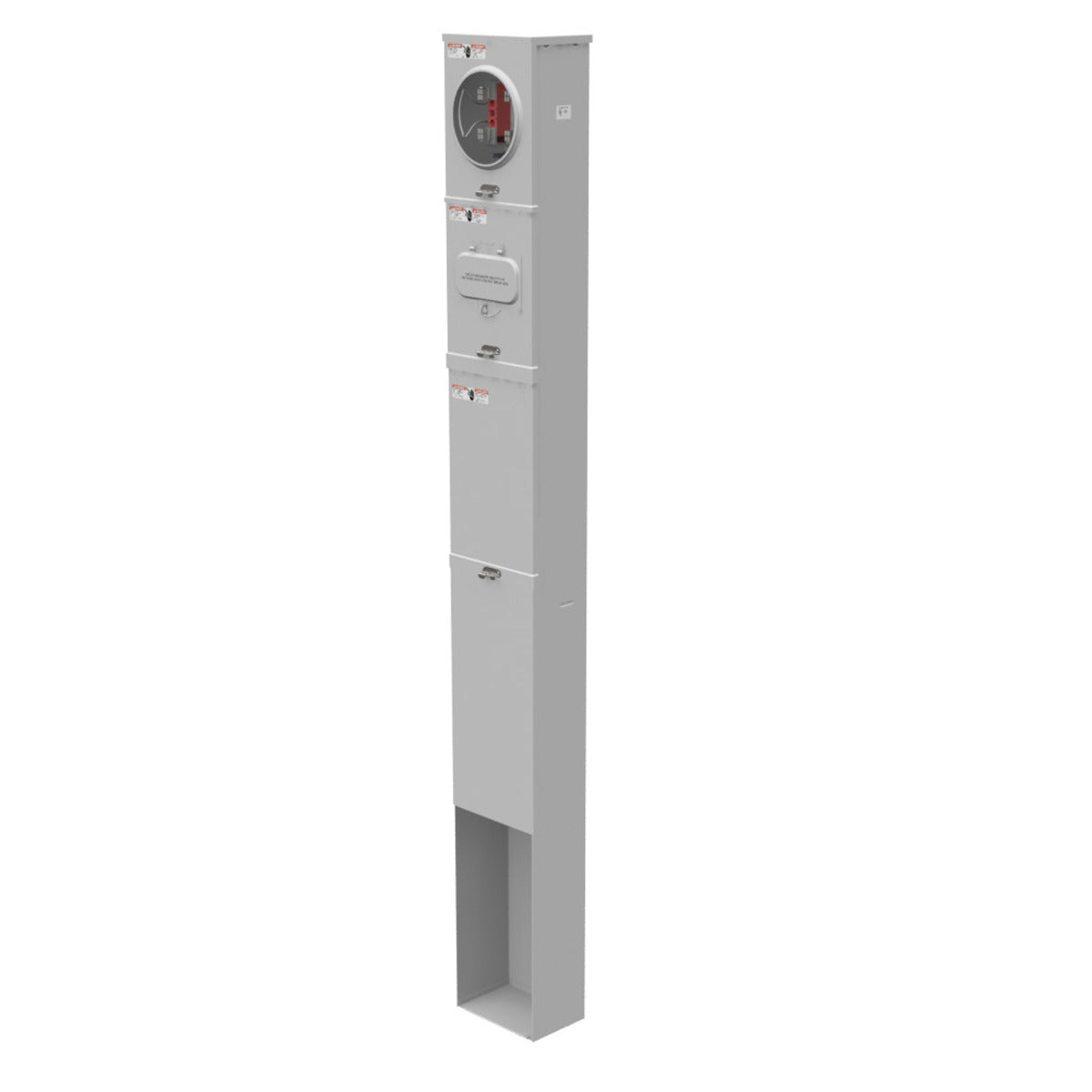

The Milbank NU8980-O-KK is a 4 terminal, ringless meter socket designed for load center applications, featuring a single pedestal for direct burial. It includes a plain top, horn bypass, and provision for a 1-200 Ampere main breaker. Constructed from G90 galvanized steel with a powder coat finish, this unit is UL Listed and Type 3R standard, suitable for underground cable entry and operating up to 240 Volts AC at 60 Hertz.

• 4 Terminal, ringless meter socket with horn bypass.
• Designed for single pedestal direct burial with underground cable entry.
• UL Listed and Type 3R standard, supporting up to 240 Volts AC and 200 Amps.

Product Highlights

This meter socket provides a robust solution for underground electrical service with main breaker provision and durable construction.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: NU8980-O-KK
• Country of Origin: United States

Technical Specifications

• Catalog Number: NU8980-O-KK
• Manufacturer: Milbank
• Brand: Milbank
• Made in USA: Yes
• Amperage Rating: 200
• Application: Meter Socket With Load Center
• Bypass Type: Horn
• Cable Entry: Underground
• Material: G90 Galvanized Steel With Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation Material: Glass Polyester
• Mounting Type: Pedestal
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• Product Type: Ringless Meter Socket
• Terminal Type: Single Mechanical
• Voltage Rating: Up to 240 Volts Alternating Current
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121102
• Main Breaker Provision: Breaker Provision
• Equipment Ground: 2 Barrel Ground Lug
• Hub/Closing Plate: Plain Top
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Number of Branch Circuits: 5
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
