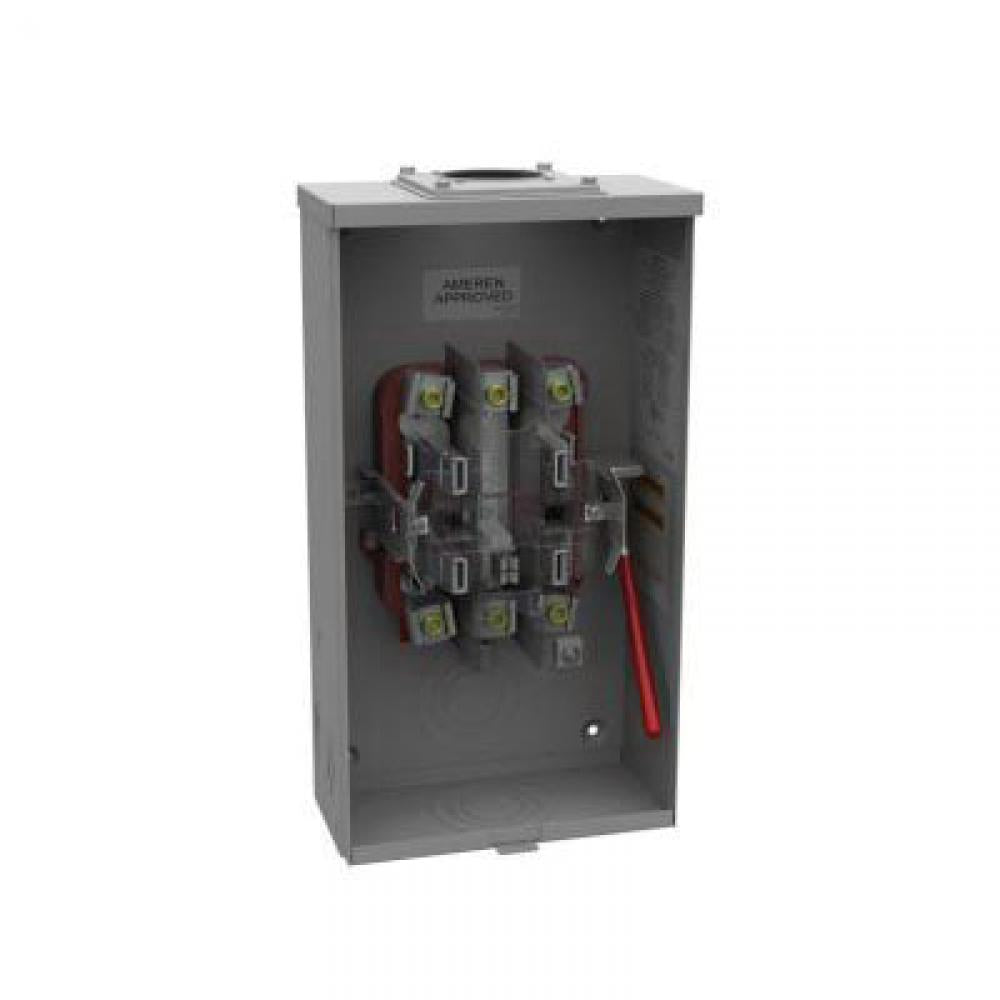

Milbank Manufacturing U9550-RRL-QG-AMS Ringless Meter Socket 600 VAC 200 Ampere Large Hub Opening Adapted to Small Hub Opening

Product Description

The Milbank U9550-RRL-QG-AMS ringless meter socket operates at 600 VAC and 200 Ampere, and features a NEMA 3R enclosure. Designed with a 5 terminal configuration and a lever bypass, this meter socket includes a large hub opening adapted to small hub opening. It is suitable for 1 phase systems.

• Ringless Meter Socket
• 5 Terminal
• Large Hub Opening Adapted to Small Hub Opening
• Lever Bypass

Product Highlights

This Milbank ringless meter socket is built for heavy-duty applications, ensuring reliable performance and safety in various electrical installations. UL Listed and NEMA 3R rated.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: U9550-RRL-QG-AMS
• Country of Origin: USA

Technical Specifications

• Voltage: 600 VAC
• Amperage: 200 Ampere
• Phase: 1 Phase
• Enclosure: NEMA 3R
• Terminal: 5 Terminal
• Bypass: Lever Bypass
• Hub Opening: Large Hub Opening Adapted to Small Hub Opening
• Type: Ringless Meter Socket
• Manufacturer: Milbank Manufacturing
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Feed Type: Overhead
• Number of Jaws: 5
• Wire Size: 6 AWG - 350 kcmil
• Hub Type: Large Hub Opening Adapted to Small Hub Opening
• Hub Size: Large
• Terminal Type: Lay in
• Insulation: Glass Polyester
• Mounting Type: Surface
• Series: Ameren Approved
• Standard/Approvals: UL Listed
