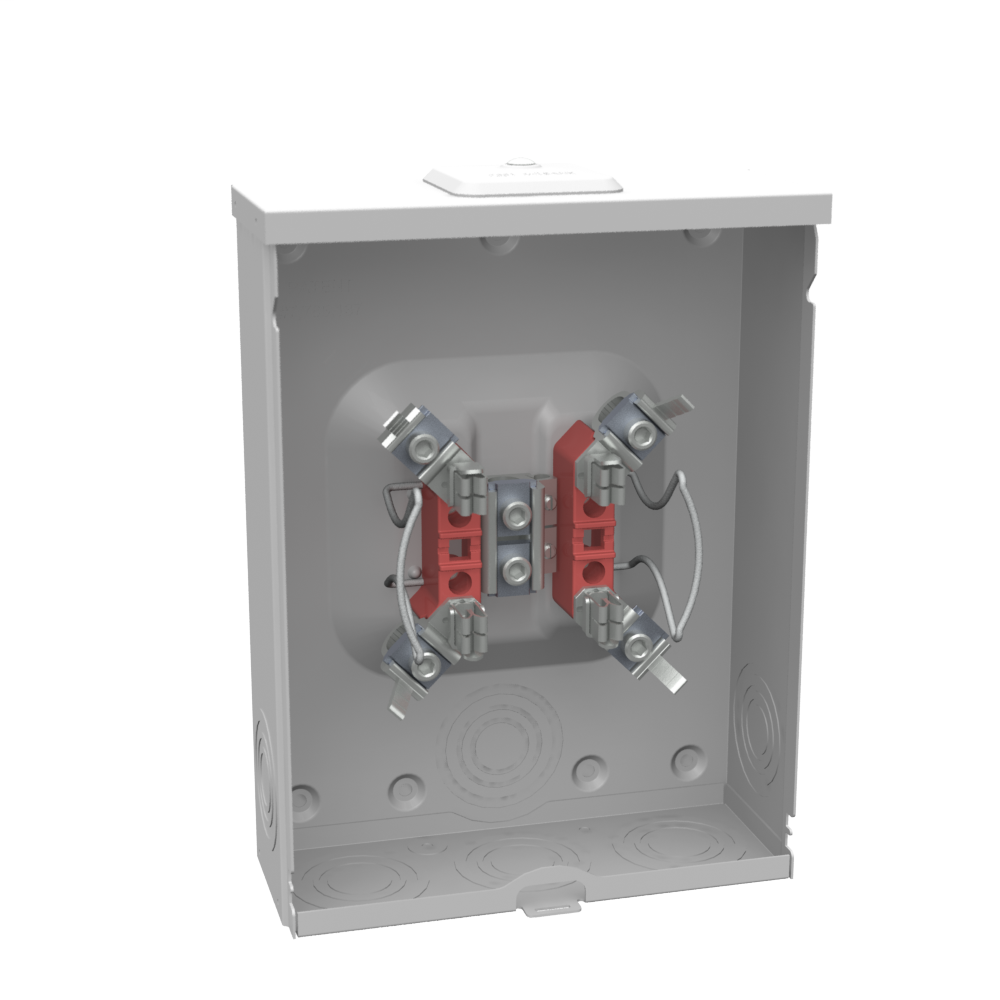

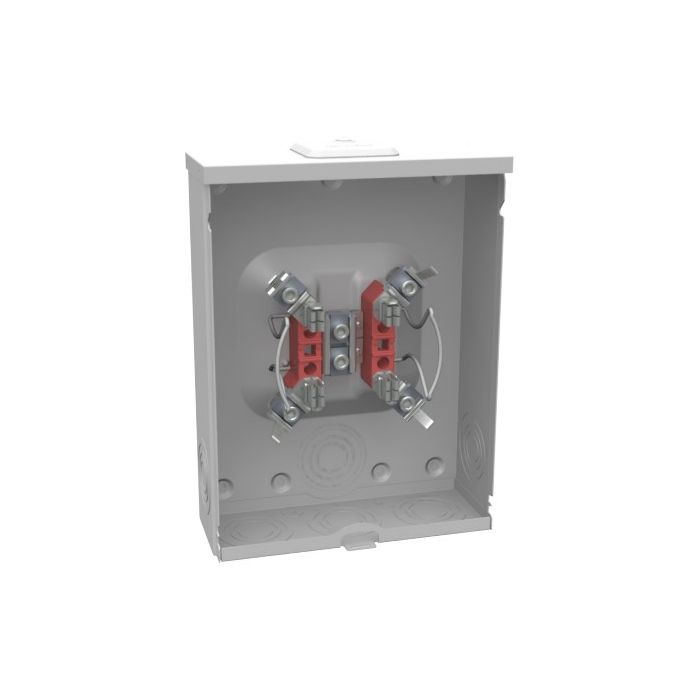

Milbank Manufacturing U7040-XL-QG-KK Ringless Meter Socket 600 Volt 200 Amp Small Closing Plate

Product Description

The MILBANK MANUFACTURING U7040-XL-QG-KK is a ringless meter socket designed for meter socket applications. It supports 600 Volt and 200 Amp, and features a small closing plate hub style. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and is suitable for overhead or underground cable entry.

• Ringless Meter Socket with Horn Bypass
• 4 Terminal Jaws
• NEMA 3R Enclosure

Product Highlights

Designed for 1 phase systems and surface mounting, this meter socket provides a reliable connection with lay-in terminals and glass polyester insulation.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: U7040-XL-QG-KK

Technical Specifications

• Type: Ringless Meter Socket
• Brand: Milbank Manufacturing
• Width: 11 in
• Height: 14.563 Inch
• Length: 4-1/8 Inch
• Voltage: 600 Volt
• Amperage: 200 Amp
• Material: Steel
• Standard: Type 3R,UL Listed
• Enclosure: G90 Galvanized Steel With Powder Coat Finish,Type 3R
• Frequency: 60 Hz
• Hub Style: Small Closing Plate
• Cable Entry: Overhead Or Underground
• Applications: Meter Socket
• Mounting Type: Surface Mount
• Terminal Type: Lay In
• Insulation Type: Glass Polyester
• Number of Phases: 1 Phase
• Number of Terminations: 4
• Bypass Type: Horn Bypass
• Socket Type: Ringless
• Closing Plate: Small Closing Plate
• Amperage Rating: 200 A
• Voltage Rating: 600 VAC
• Enclosure Type: NEMA 3R
• Frequency Rating: 60 Hz
• Feed Type: Overhead, Underground
• Number of Jaws: 4
• Wire Size: 6 AWG - 350 kcmil
• Hub Type: Small Closing Plate
• Hub Size: Small
• Terminal: 4 Terminal
• Insulation: Glass Polyester
