Milbank Manufacturing U7021-DL-QG-KK Ringless Meter Socket 200 Ampere

Product Description

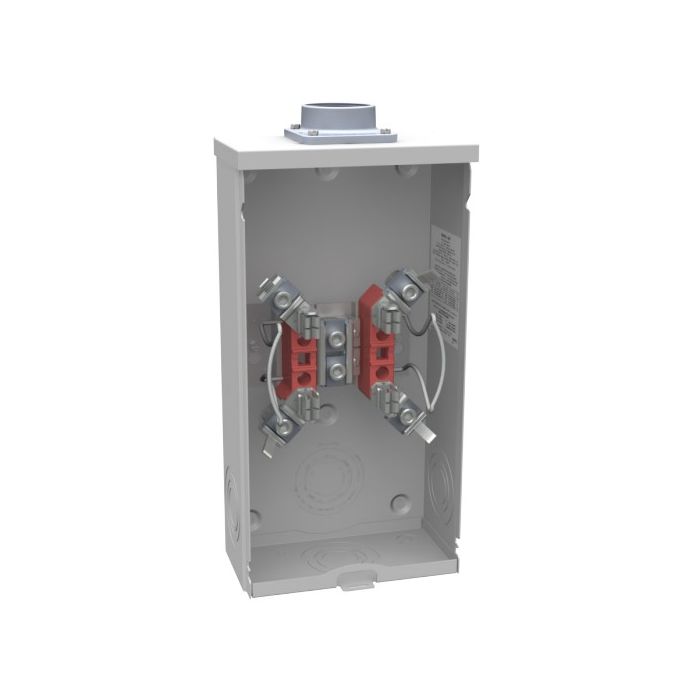

The Milbank Manufacturing U7021-DL-QG-KK is a ringless meter socket rated for 600 VAC and 200 Amperes. It features a NEMA 3R enclosure, 4 terminal jaws, and a horn bypass type. Designed with an overhead cable entry and lay in terminal, this meter socket ensures secure and efficient connectivity. Suitable for surface mounting applications.

• Ringless Meter Socket with Horn Bypass
• Overhead Cable Entry
• 4 Terminal Jaws

Product Highlights

Ringless meter socket with 2 inch hub opening, NEMA 3R enclosure, and 4 terminals. UL Listed.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: U7021-DL-QG-KK

Technical Specifications

• Application: Ringless Meter Socket
• Amperage: 200 Ampere
• Voltage: 600 VAC
• Enclosure: NEMA 3R
• Hub Opening: 2 Inch
• Terminal: 4 Terminal
• Bypass Type: Horn Bypass
• Manufacturer: Milbank Manufacturing
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Feed Type: Overhead
• Number of Jaws: 4
• Wire Size: 6 AWG - 350 kcmil
• Hub Type: 2 Inch Hub
• Hub Size: 2 Inch
• Terminal Type: Lay in
• Mounting Type: Surface
