Milbank Manufacturing U4496-XL-WC-41-AMS Meter Socket 80A

Product Description

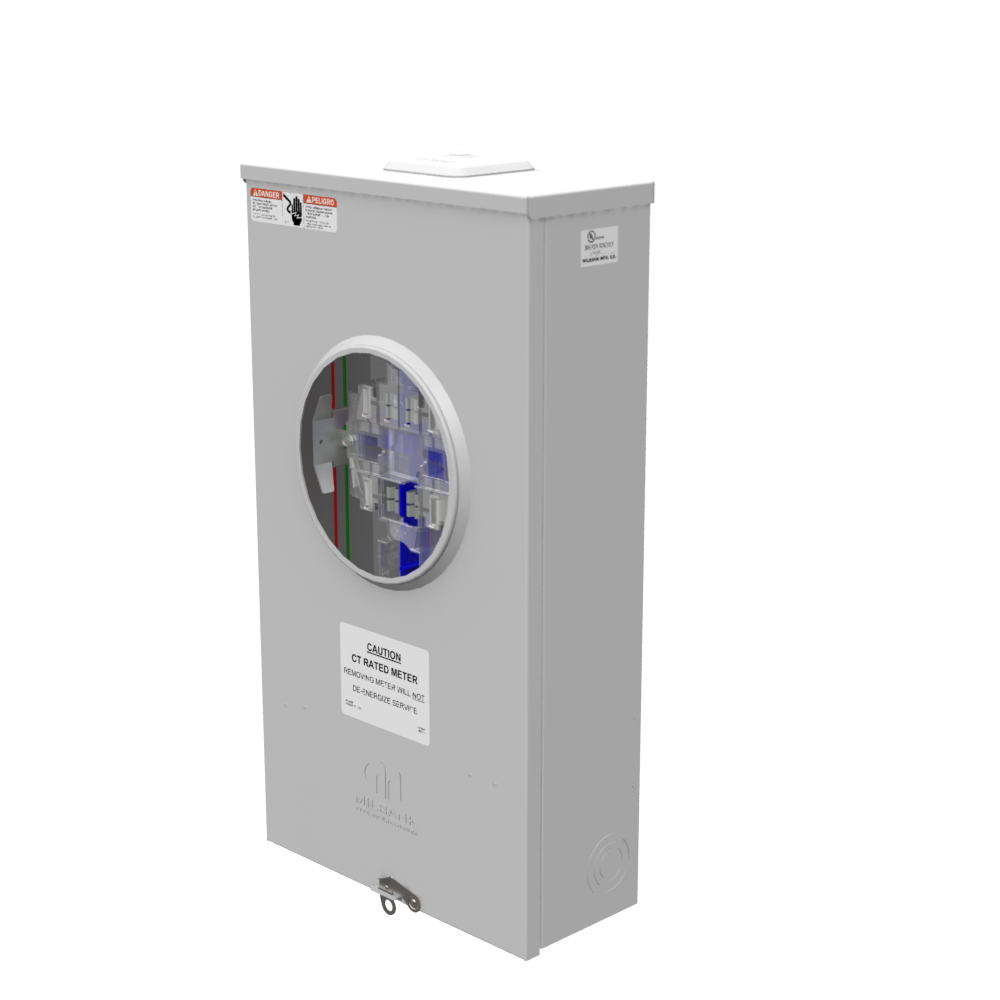

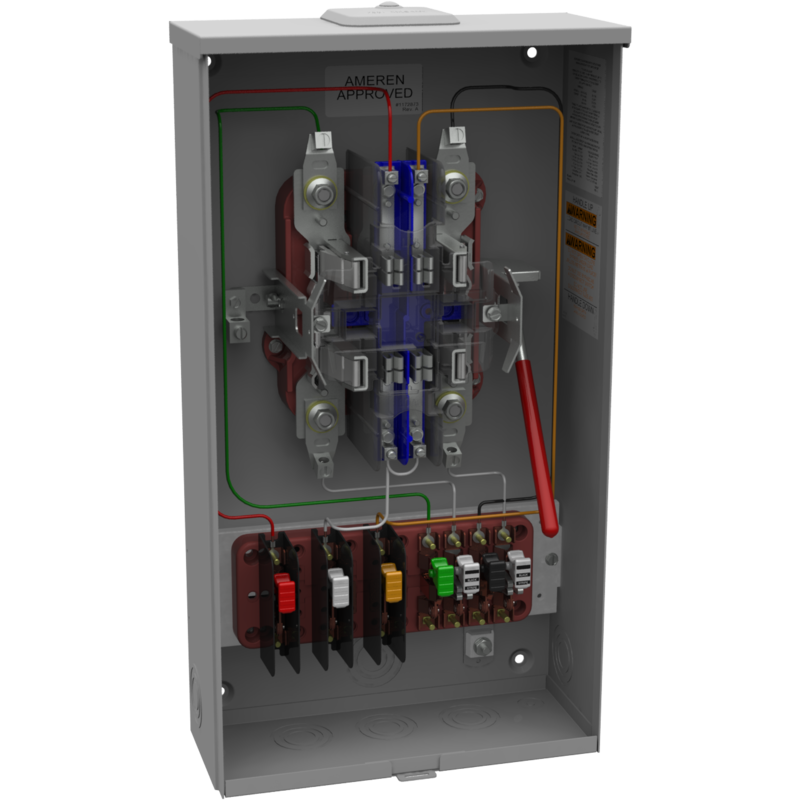

The Milbank Manufacturing U4496-XL-WC-41-AMS is a meter socket rated for a maximum of eighty amperes and six hundred volts. This transformer-rated component is specifically designed for three-phase systems, making it suitable for various electrical installations. The socket is enclosed in a NEMA-3R housing, which provides protection against the elements, allowing for both overhead and underground cable entry. It features a lever bypass, which is essential for maintenance and testing purposes, and comes prewired with an Ameren configuration.

• Transformer rated for 600 volts
• Equipped with a lever bypass for easy testing
• NEMA-3R enclosure for outdoor use

Product Highlights

This meter socket offers reliability and durability for both residential and commercial applications.

Product Information

Standard Information

• Brand: Milbank
• Catalog Number: U4496-XL-WC-41-AMS

Technical Specifications

• Amperage Rating: 80
• Voltage Rating: 600
• Phase: 3
• Frequency Rating: 60 Hertz
• Enclosure: NEMA 3R
• Material: Steel
• Mounting: Surface Mount
• Height: 22 inches
• Width: 12 inches
• Length: 4.84 inches
• Hub Style: Small Closing Plate
• Terminal Type: Single Mechanical
• Line Side Wire Range: 14 - 2 AWG
• Load Side Wire Range: 14 - 2 AWG
• Number of Meter Positions: 1 Position
• Special Features: Lever bypass
• Standard: UL Listed
