Milbank Manufacturing U1079-X-QG-K3-K2-5T6-AMS Ringless Meter Socket 320 Ampere

Product Description

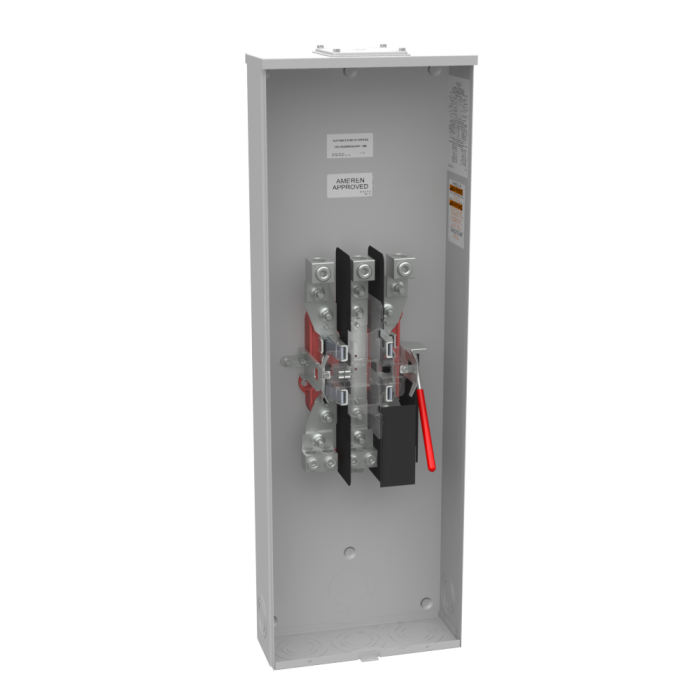

The Milbank Manufacturing U1079-X-QG-K3-K2-5T6-AMS is a ringless meter socket with 5 terminals, lever bypass, and a small closing plate. It operates at 600 VAC and 320 Ampere, suitable for 1 Phase, 60 Hz systems, and features a NEMA 3R enclosure. Designed for overhead cable entry and surface mounting.

• Ringless Meter Socket
• 5 Terminal
• Lever Bypass
• NEMA 3R Enclosure

Product Highlights

This meter socket is ideal for residential or commercial metering applications requiring a robust and reliable connection point.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: U1079-X-QG-K3-K2-5T6-AMS
• Country of Origin: US

Technical Specifications

• Amperage: 320 Ampere
• Voltage: 600 VAC
• Enclosure: NEMA 3R
• Phase: 1 Phase
• Frequency: 60 Hz
• Terminal: 5 Terminal
• Bypass Type: Lever Bypass
• Closing Plate: Small Closing Plate
• Socket Type: Ringless
• Manufacturer: Milbank Manufacturing
• Amperage Rating: 320 A
• Enclosure Type: NEMA 3R
• Series: Ameren Approved
• Feed Type: Overhead
• Number of Jaws: 5
• Hub Type: Large Hub Opening Adapted to Small Closing Plate
• Hub Size: Large
• Terminal Type: Single Mechanical
• Insulation: Glass Polyester
• Mounting Type: Surface
• Brand: Milbank®
• Country of Origin: US
• Manufacturer Name: Milbank Manufacturing
