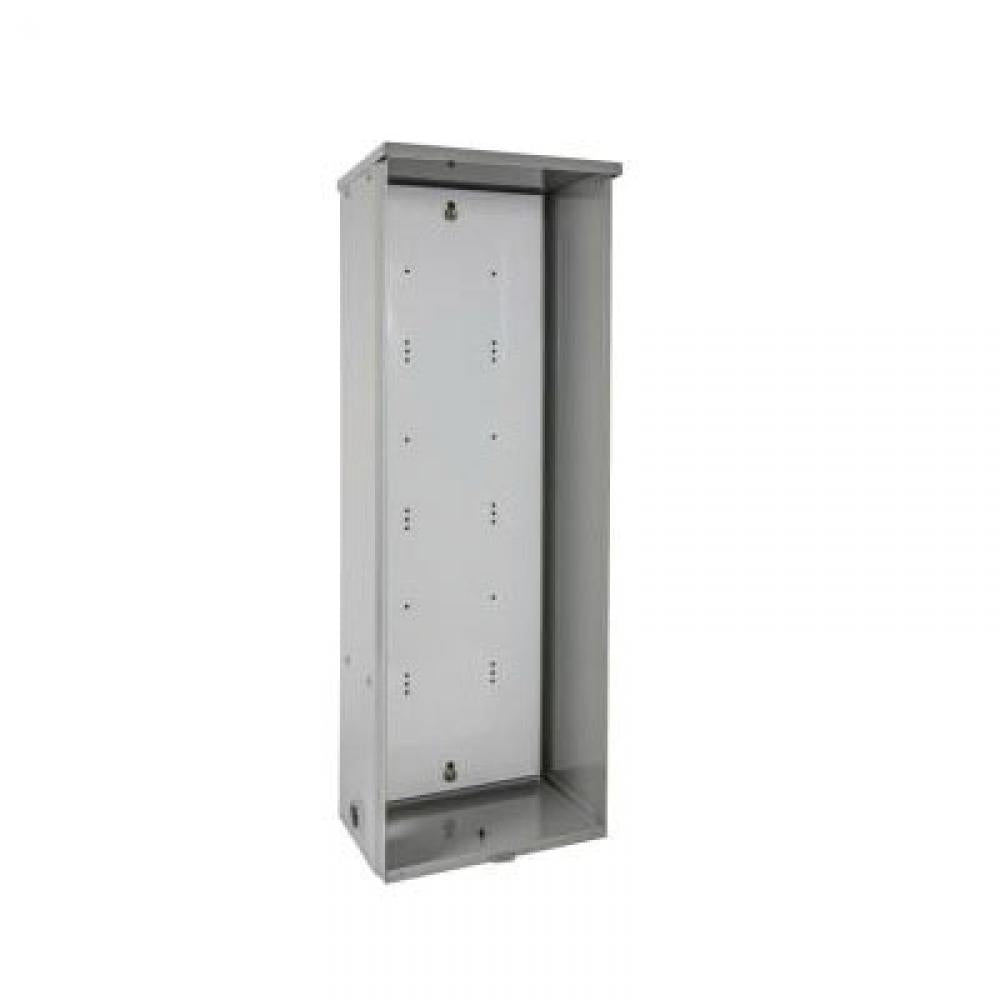

Milbank Manufacturing PT48AR Potential Transformer Cabinet 36 in H x 12 in W x 8 in D

Product Description

The Milbank MANUFACTURING PT48AR potential transformer cabinet is designed for mounting electrical equipment. Features include a drip shield top, one door, and a screw cover with a sealing provision on the front cover. It has mounting emboss on left side to be mounted on right side of CT cabinet. Constructed from aluminum with an ANSI 61 gray powder-coated finish.

• Designed for mounting electrical equipment
• Features a screw cover and sealing provision on the front cover
• Constructed with welded support

Product Highlights

This Milbank PT48AR cabinet is NEMA 3R rated and suitable for wall mounting. It measures 36 inches in height, 12 inches in width, and 8 inches in depth.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: PT48AR
• Country of Origin: USA

Technical Specifications

• Manufacturer: Milbank Manufacturing
• Suitable For Use With: Mounting Electrical Equipment
• Finish: Powder Coated
• Application: Enclosure for Mounting Electrical Equipment
• Brand Name: Milbank
• Cable_Entry: No Knockouts
• Color: Gray
• Construction: Welded
• Country of Origin: USA
• Material: Aluminum
• Mounting: Surface Mount
• NEMA_Rating: Type 3R
• Size: 36X12X8
• Special Features: Has mounting emboss on left side to be mounted on right side of CT cabinet
• Standard: UL Listed
• Sub_Brand: Milbank
• Type: 3R
• Category Level 1: Distribution Equipment & Accessories
• Category Level 2: Metering Equipment Accessories
• Category Level 3: Metering Miscellaneous Accessories
• Category Name: Metering Miscellaneous Accessories
• Country: USA
• Unspsc: 39121100
