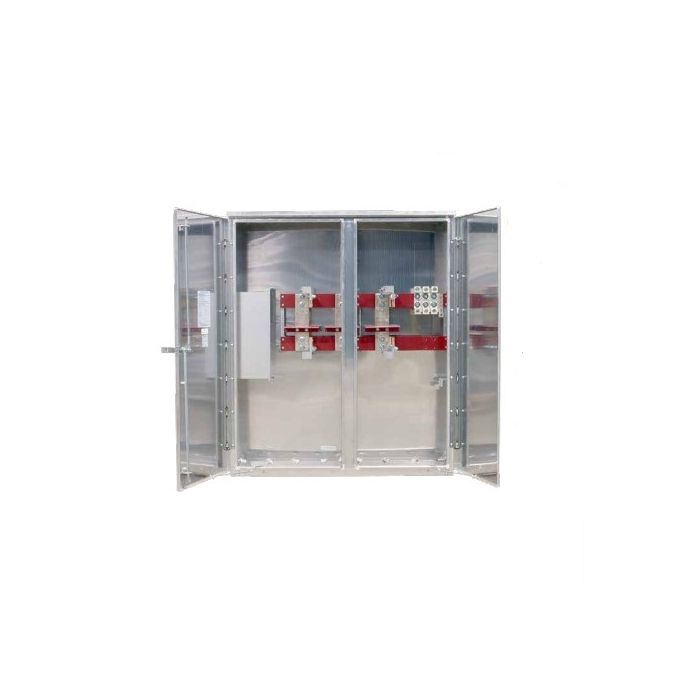

Milbank Manufacturing AMRM-1234UGBX CT Cabinet with Side Wiring Gutter Box 1200 Amp

Product Description

The Milbank Manufacturing AMRM-1234UGBX is a current transformer (CT) cabinet rated for 1200 Amps and 250 Voltage. Designed with a 3Ø4W phase configuration and an 85kA SCCR, it features underground entry/underground exit capability. Constructed from aluminum with a NEMA 3R rating, its dimensions are 54 Inch Height x 46 Inch Width x 14 Inch Depth and is Ameren Approved.

• Features a three-point latching handle & locking mechanism for easy and secure locking.
• Equipped with tin-plated aluminum lugs suitable for aluminum or copper conductors and rated for 90°.
• Includes a potential tap on the buss, wind-stop latch, and grounding lug.

Product Highlights

The Milbank CT cabinet is UL listed and NEMA 3R rated for both indoor and outdoor applications. It is also Ameren Approved.

Product Information

Standard Information

• Brand: MILBANK MANUFACTURING
• Manufacturer Part Number: AMRM-1234UGBX

Technical Specifications

• Manufacturer: Milbank Manufacturing
• Depth: 14 Inch
• Width: 46 Inch
• Height: 54 Inch
• NEMA Rating: NEMA 3R
• Type: Underground Entry, Underground Exit
• Series: Ameren Approved
• Lock: Padlock Provision
