Milbank L576-XL-KK-CECHA 4 Term, Ringed, Small Closing Plate, Horn Bypass, 6 Position, Commonwealth Edison Chicago Housing Authority

Product Description

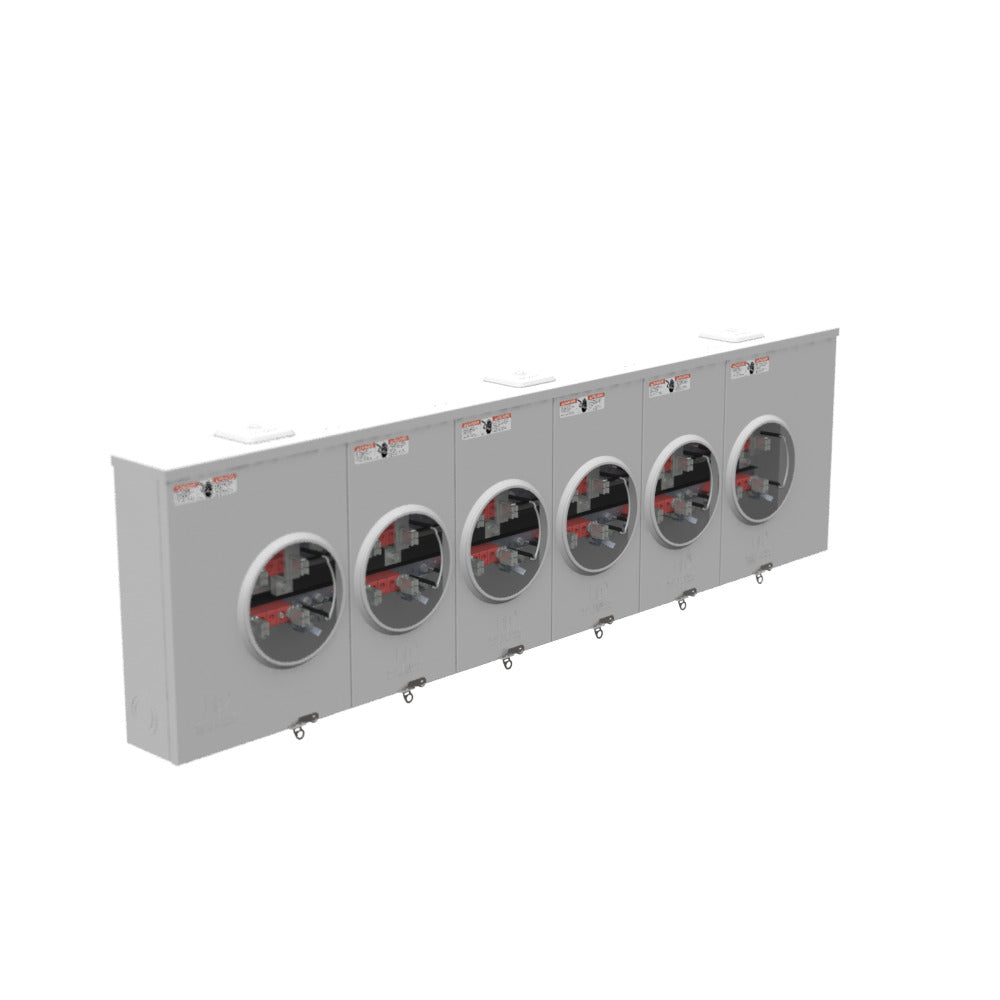

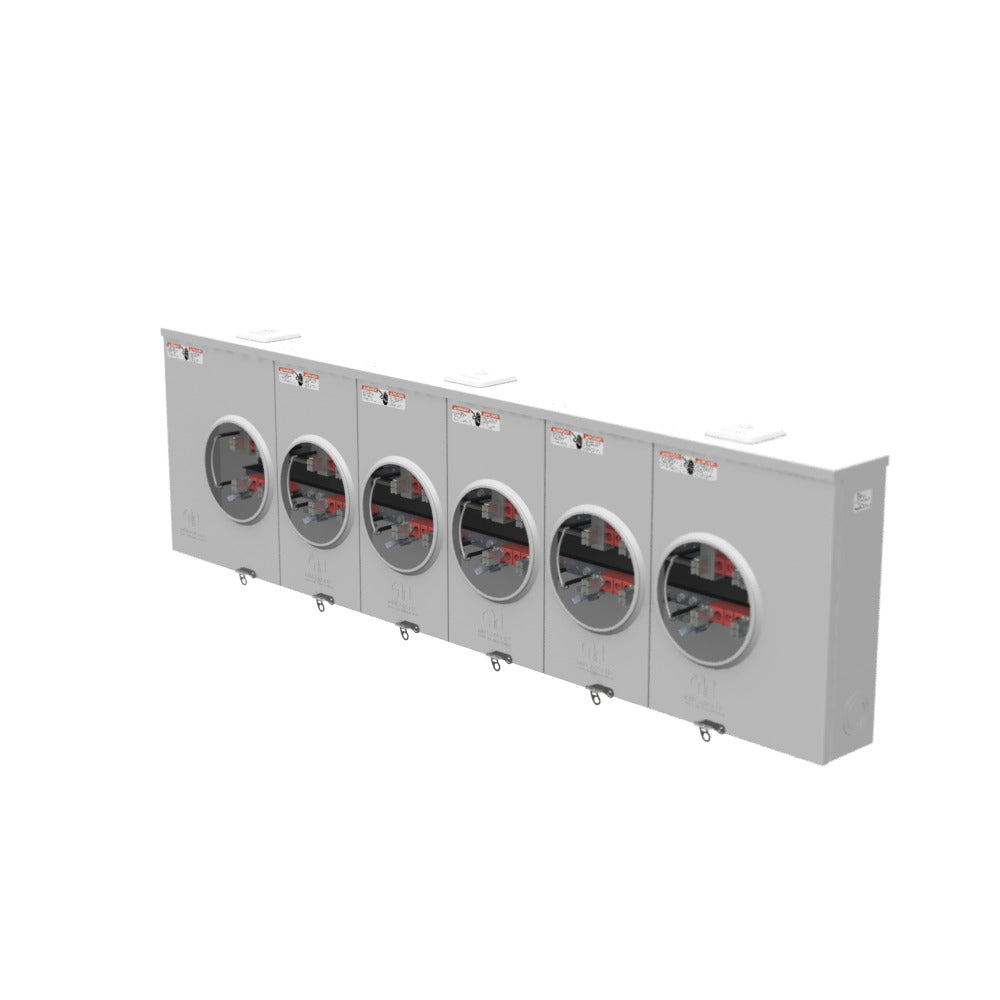

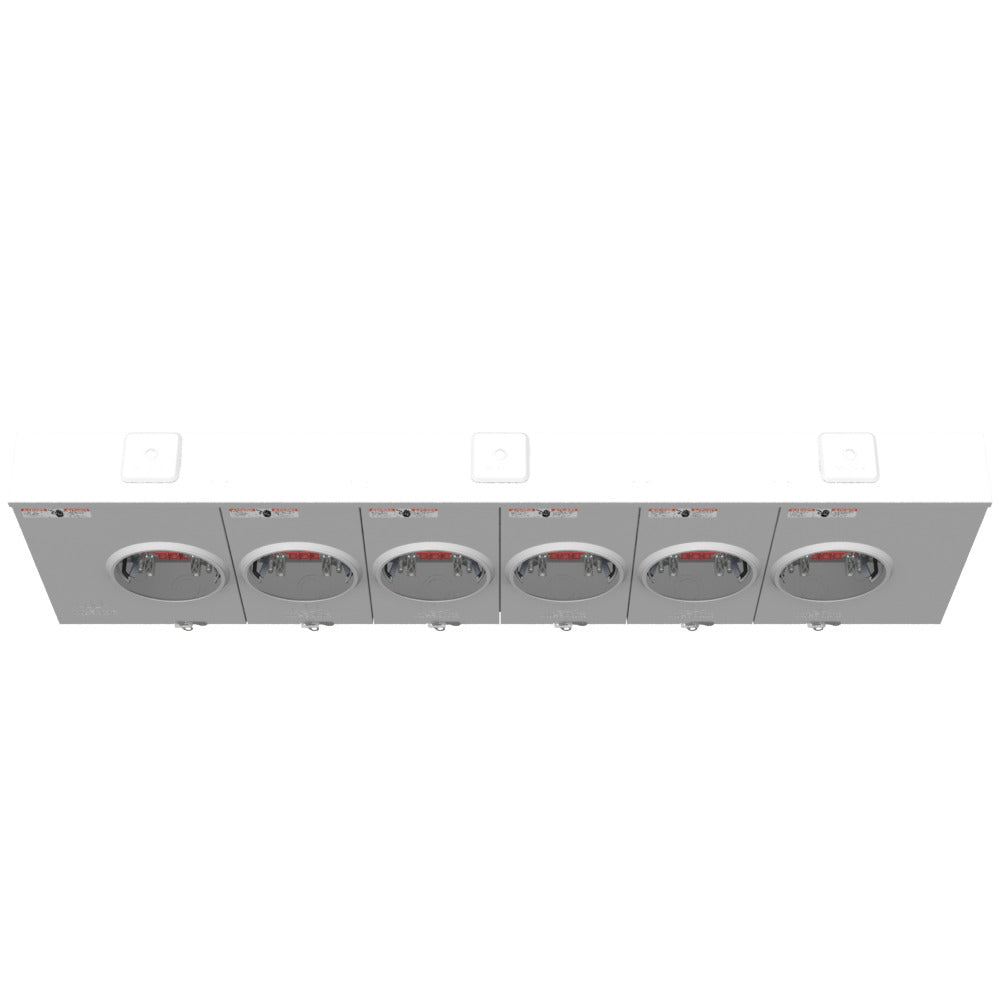

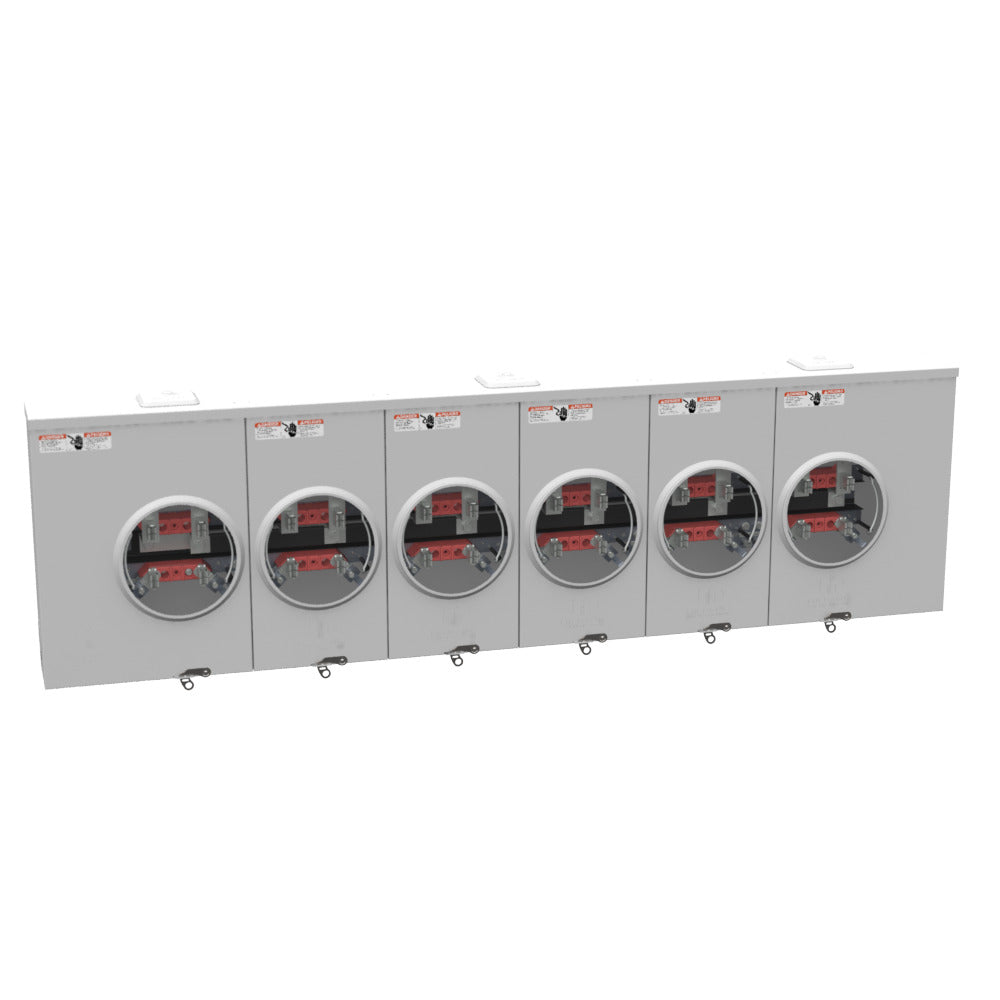

The Milbank L576-XL-KK-CECHA is a meter socket designed for industrial use. It features four terminals and a horn bypass. This model is suitable for the Commonwealth Edison and Chicago Housing Authority installations.

• Meets UL Listed; Type 3R standards
• Constructed from G90 galvanized steel with a powder coat finish
• Rated for a maximum of 300 volts alternating current

Product Highlights

This meter socket is ideal for overhead or underground cable entry, allowing for versatile installations.

Product Information

Standard Information

• Catalog Number: L576-XL-KK-CECHA
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 100
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Phase: 1
• Specifications: 4.5L x 57.063W x 16H inches
• Voltage Rating: 300 Volts Alternating Current
