Milbank KCPLM-834UGBX CT Cabinet with Underground Entry/Exit 600 Volt 800 Amp NEMA 3R

Product Description

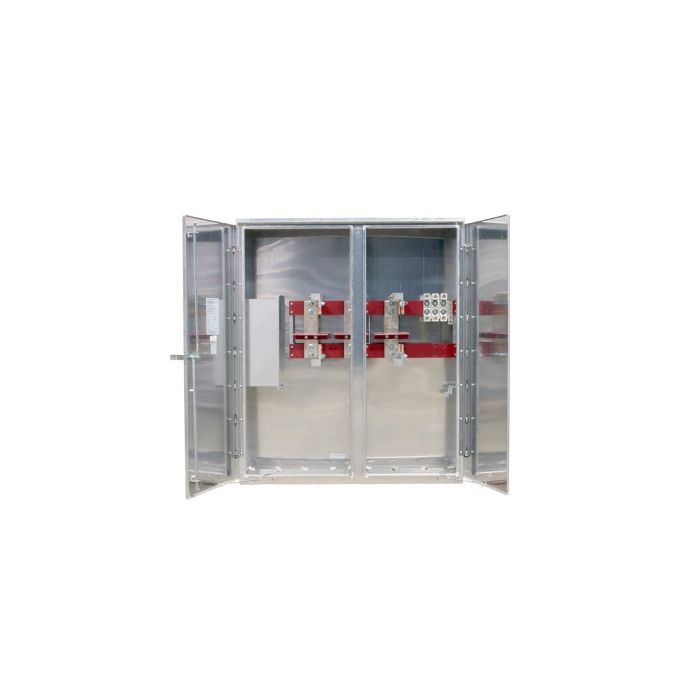

The Milbank KCPLM-834UGBX is a Current Transformer Cabinet designed for underground service. It supports 800 Amp and operates at 600 Volt, complying with NEMA 3R standards for exterior use. This cabinet features an underground entry and exit, making it suitable for installations requiring underground utility connections.

• UL Listed ensuring compliance with safety standards
• Three-point latching handle with locking mechanism for security
• Includes aluminum shell and piano hinged doors

Product Highlights

Ideal for commercial and industrial applications, this cabinet provides efficient and secure housing for current transformers.

Product Information

Standard Information

• Type: Current Transformer Cabinet
• NEMA Rating: 3R

Technical Specifications

• Electrical Ratings: 600 Volt, 800 Amp
• Dimensions: 48 inches x 36 inches x 14-11/16 inches (HxWxD)
• Fault Current Rating: 65,000 Amp
• Cable Entry Size: #4-600 MCM
• Insulation: Glass Polyester
• Mounting Type: Surface Mount
• Construction Material: Aluminum
