Product Description

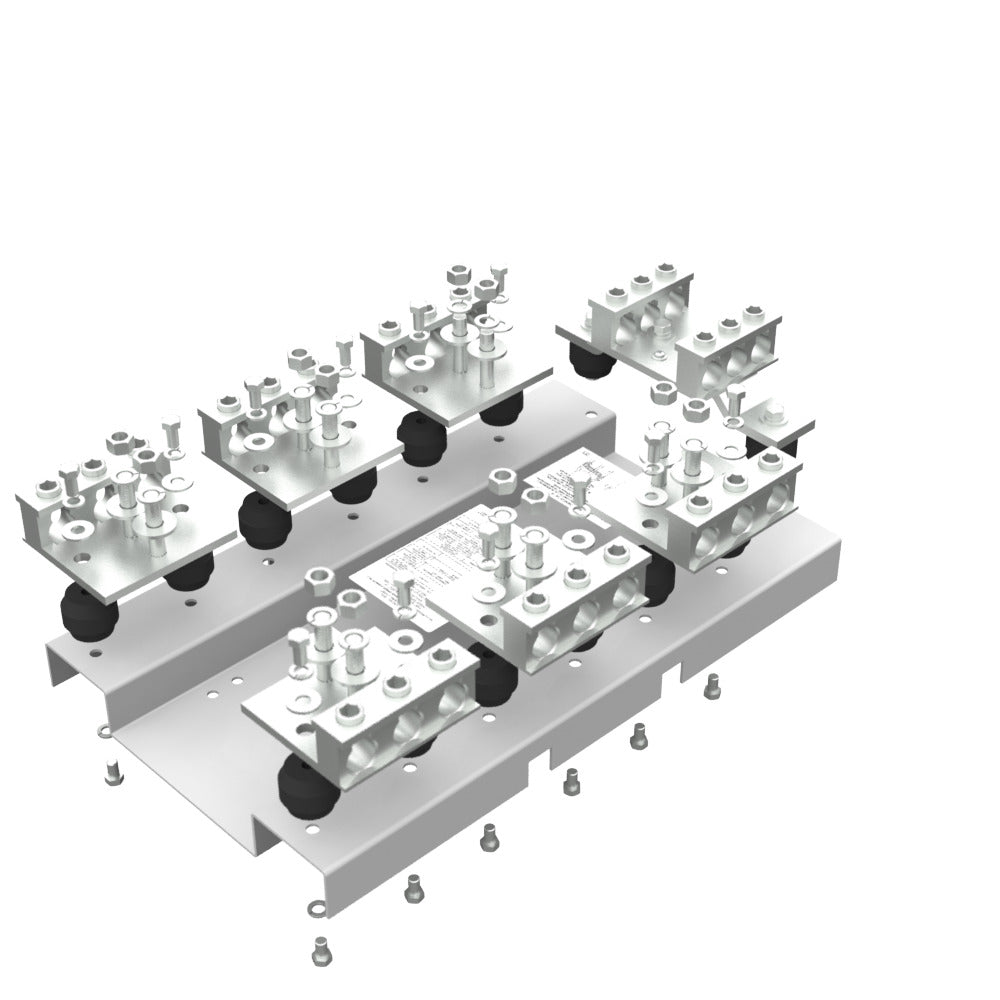

Milbank K5930 is a current transformer mounting rack designed for three-phase systems with a voltage rating of six hundred volts alternating current. The rack supports an amperage of eight hundred and has a short circuit rating of fifty thousand ampere interrupting capacity. It is made of plated aluminum and is suitable for surface mounting.
- Three-phase, four-wire configuration
- Lug connection for secure attachment
- UL listed for safety and compliance
Product Highlights
This mounting rack allows the use of three feeders, with terminal options for both four hundred AWG to six hundred kcmil and one AWG to two hundred fifty kcmil. Its design emphasizes ease of installation and compatibility with current transformer systems.
Product Information
Standard Information
-
Brand: Milbank
-
Manufacturer: Milbank Manufacturing
Technical Specifications
-
Catalog Number: K5930
-
Voltage Rating: 600 Volts Alternating Current
-
Current Rating: 800 Amperes
-
Short Circuit Rating: 50,000 Ampere
-
Dimensions: 15.75 inches Height x 24.25 inches Width x 6.313 inches Length
-
Material: Plated Aluminum
-
Insulation: Non-Metallic
-
Mounting: Surface Mount
