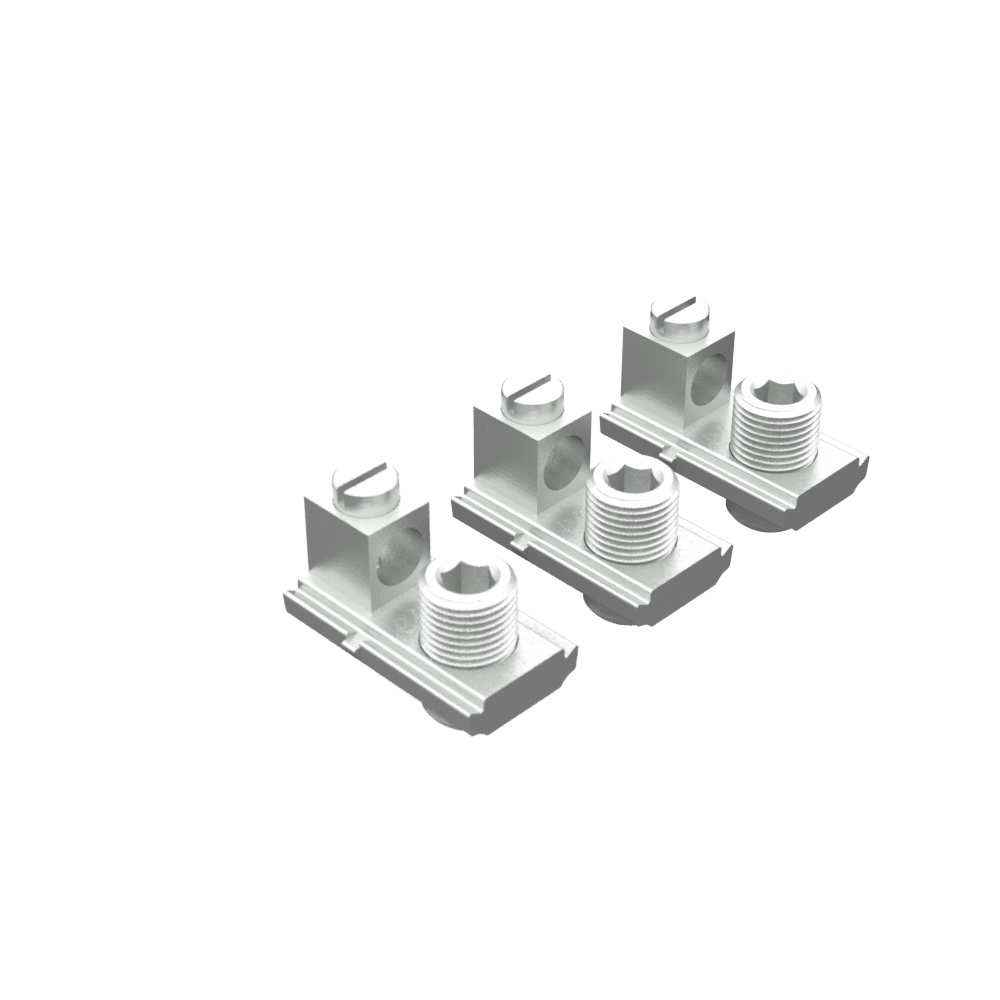

Milbank K4977-INT Internal Hex Tap Connector Kit 300 VAC

Product Description

The Milbank K4977-INT Internal Hex Tap Connector Kit provides a safe and reliable electrical connection solution. This kit allows for connections with conductors ranging from twelve AWG to one-aught AWG. It is compatible with up to three hundred volts AC and has a current rating of one hundred amps.

• Designed for line-side or load-side installation
• Replaces existing slide-in nut assembly on Milbank 200 amp sockets
• Manufactured from aluminum for durability

Product Highlights

This Milbank kit is ideal for load-side 100 amp feeds to outdoor lighting, water well pumps, and more. It includes three tap connectors with a slide nut and set screw for secure fastening.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part No: K4977-INT

Technical Specifications

• Voltage Rating: Up to 300 volts AC
• Conductor Size: 12 AWG to 1/0 AWG
• Temperature Rating: 75 degrees Celsius
• Mounting Type: Slide Nut
• Material: Aluminum
• Amperage Rating: 100 amps
• Standards: Non UL Listed
• Includes: (3) Tap Connectors
