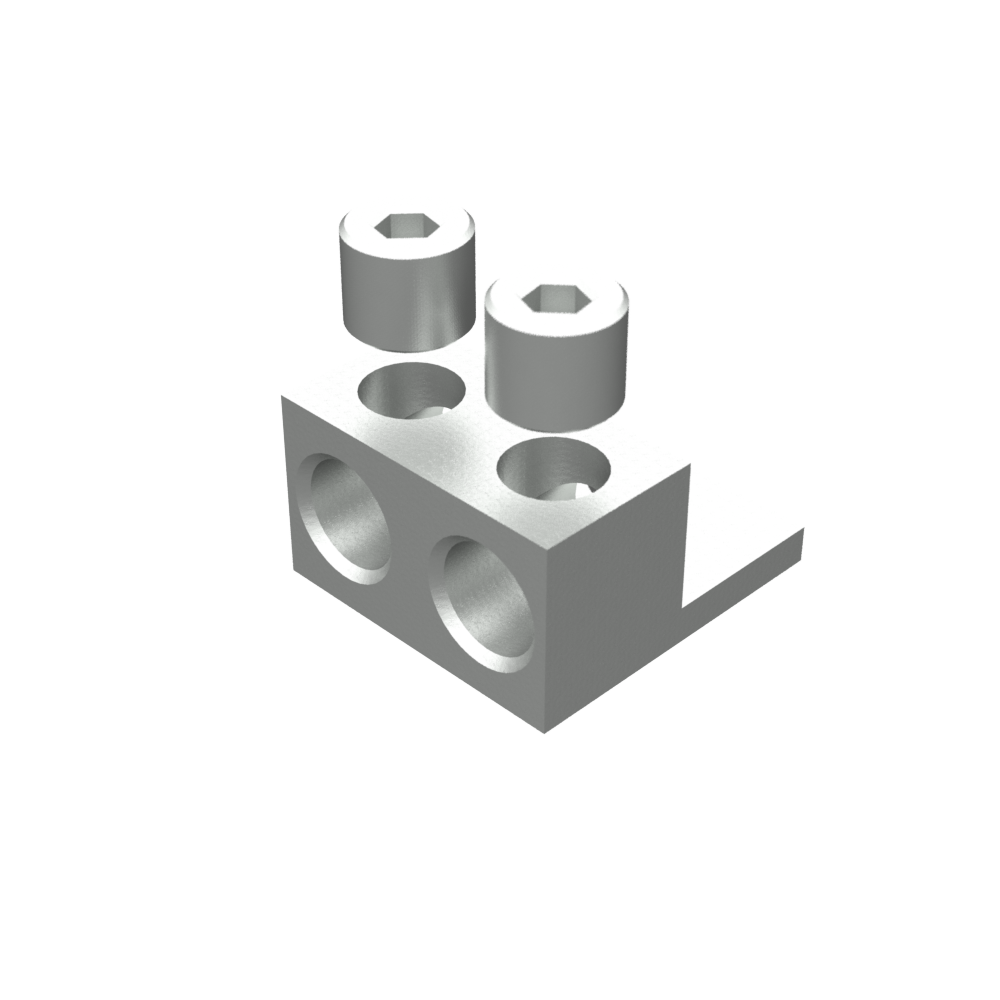

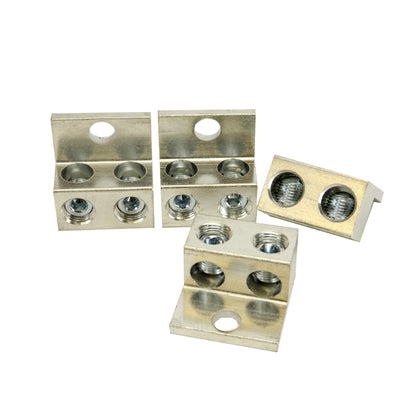

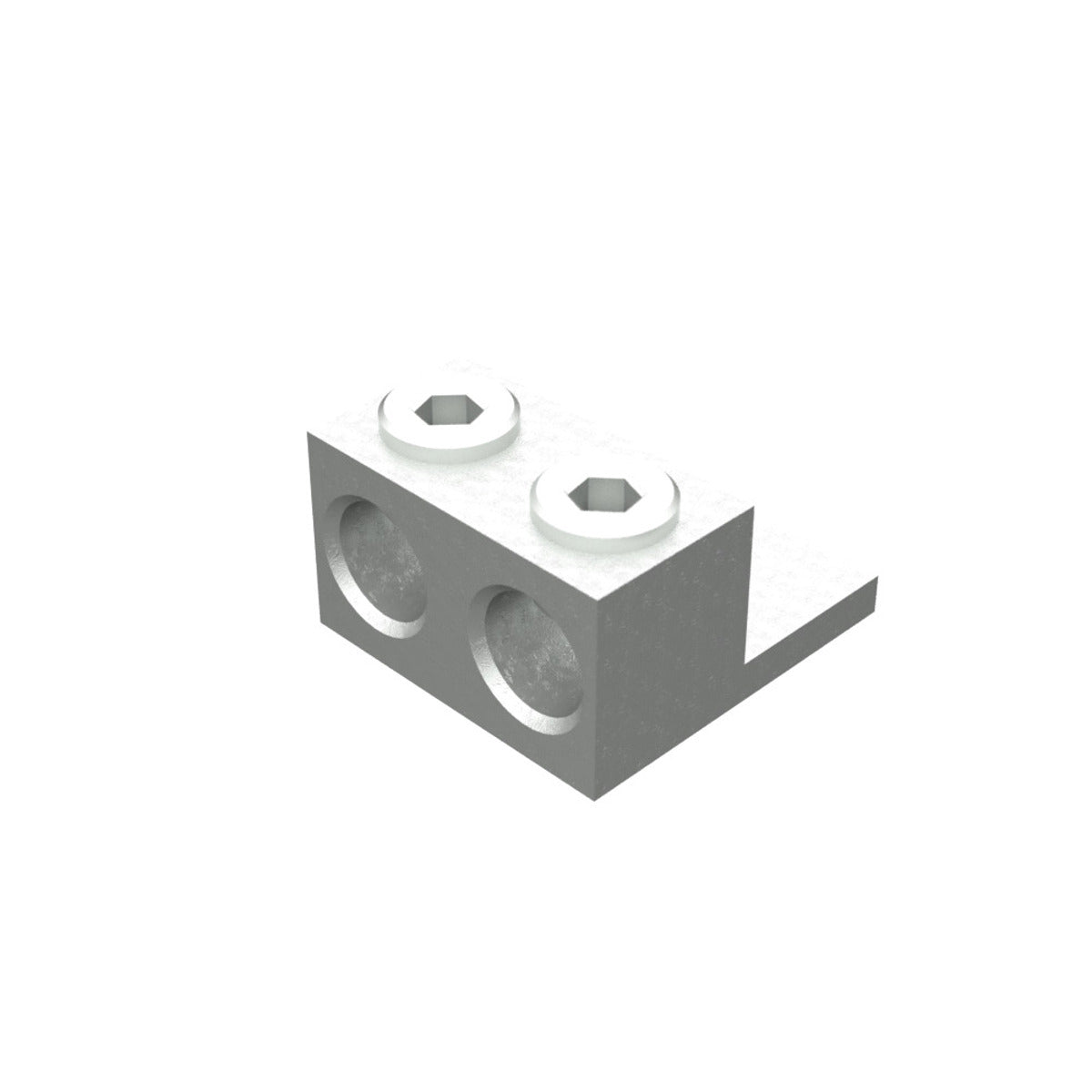

Milbank K4223 Lug Kit Twin 6-350Kcmil Mech .5 Stud Hole 4 Per Kit

Product Description

The MILBANK K4223 is a mechanical wire connector kit designed for metering accessories. Made of aluminum, this UL Listed lug kit accommodates two conductors ranging from 6 AWG to 350 kcmil. It features a stud mounting and is rated for up to 600 Volts AC and a temperature of 75 degrees Celsius. This kit includes four lugs, ideal for electrical installations requiring secure connections.

• Conductor range from 6 AWG to 350 kcmil for versatile applications.
• UL Listed standard ensures safety and compliance.
• Mechanical connection type with stud mounting for secure installation.

Product Highlights

Aluminum construction, 600V AC, 75°C temperature rating.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: K4223
• Country of Origin: United States

Technical Specifications

• Made in USA: Yes
• Application: Metering Accessory
• Conductor Range: 6 AWG to 350 kcmil
• Connection Type: Mechanical
• Insulation: None
• Material: Aluminum
• Mounting Type: Stud
• Number of Conductors: 2
• Standard: UL Listed
• Type: Wire Connector Kit
• Temperature Rating: 75 Degrees Celsius
• Voltage Rating: Up to 600 Volts Alternating Current
• ECCN: EAR99
• UNSPSC: 39121421
