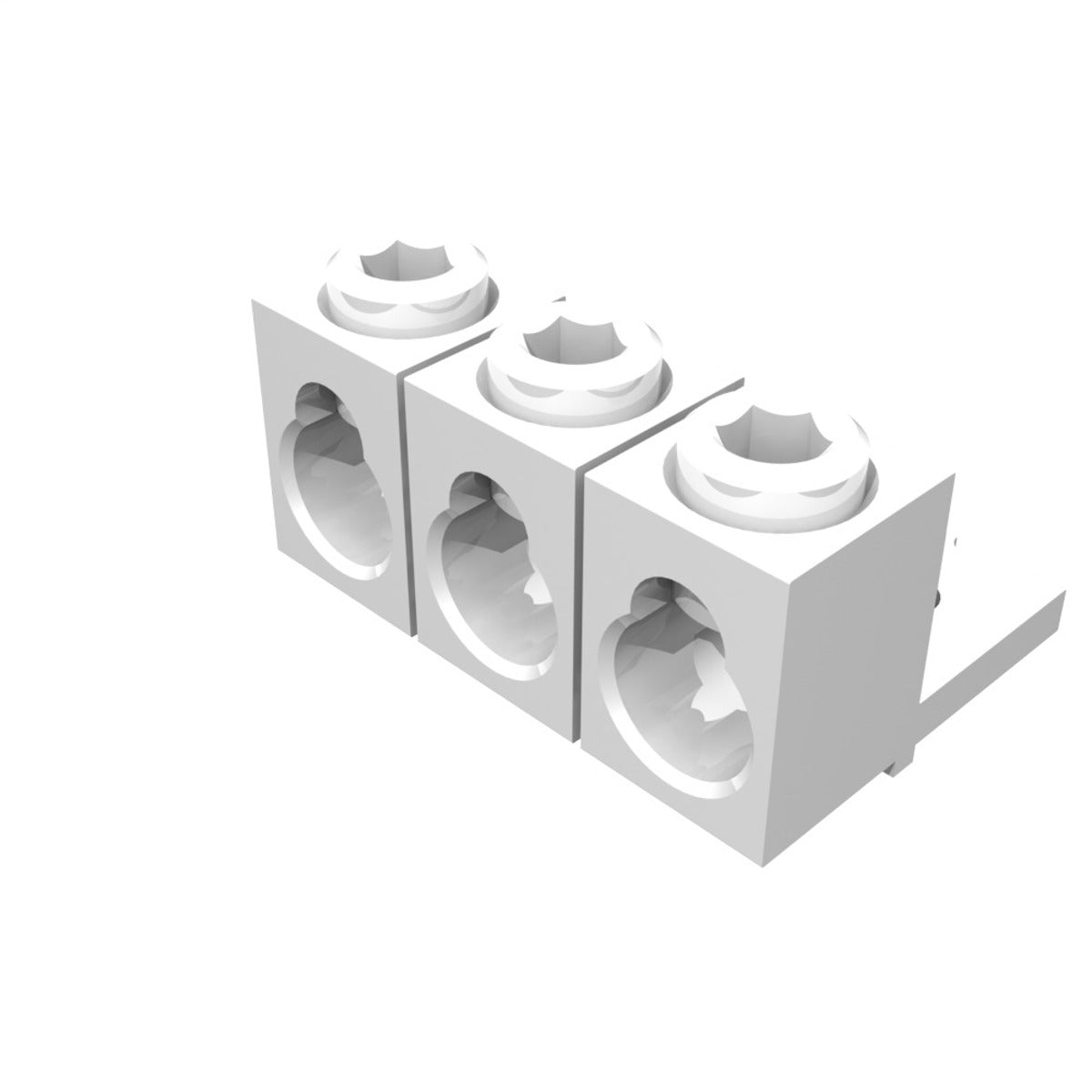

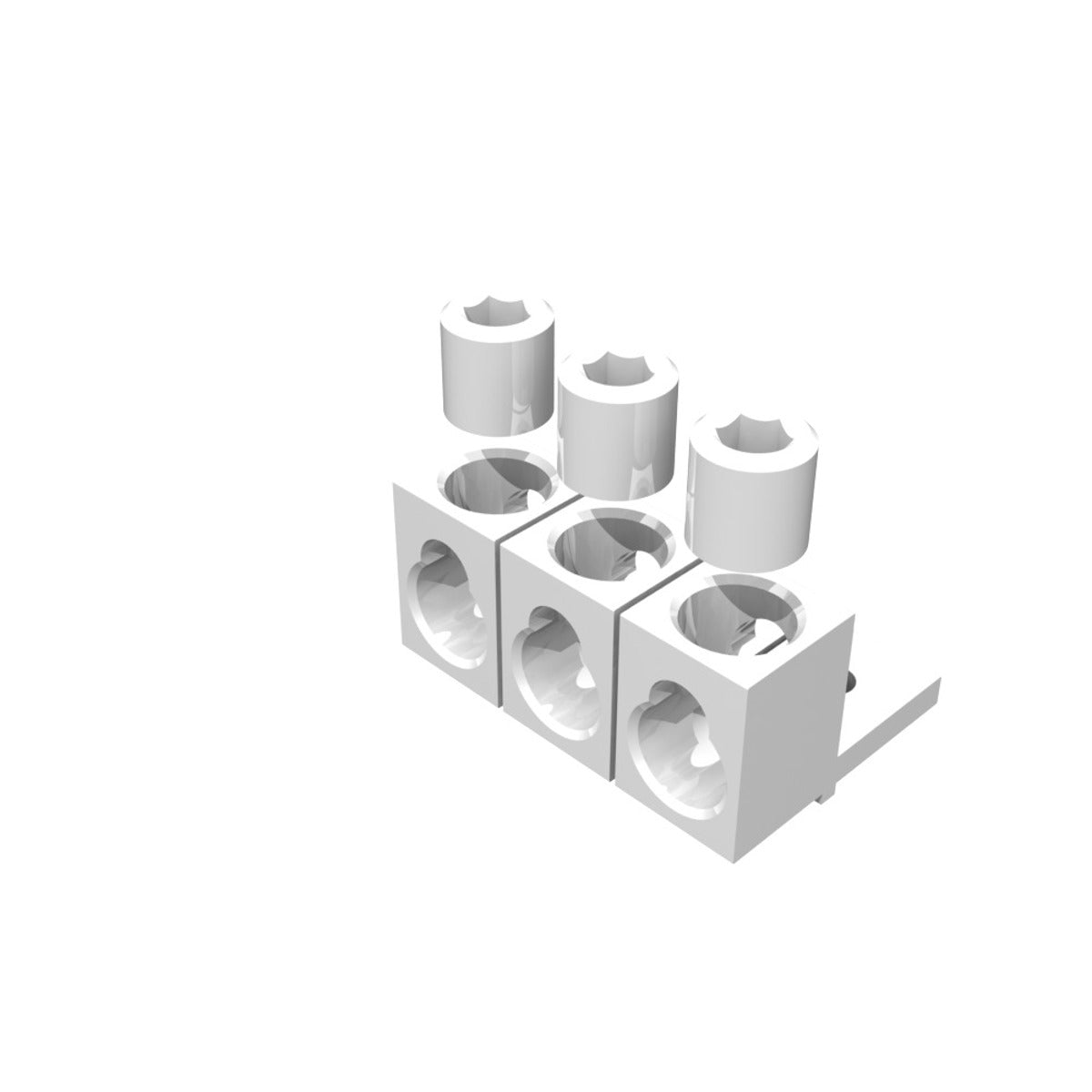

Milbank K1540L Lug Kit Single 4-600kcmil Or Two 1 Aught-250kcmil Mechanical Anti-rotate .375 Stud Hole 3 Per Kit

Product Description

The Milbank K1540L is a lug kit designed to accommodate a conductor range from four AWG to six hundred kcmil or two one-aught to two hundred fifty kcmil conductors. This kit is suited for mechanical connections with a .375 stud hole, and each kit contains three connectors.

• Conductor Range: 4 AWG to 600 kcmil or Two 1/0 AWG to 250 kcmil
• Mechanical connection for reliable performance
• UL listed for safety

Product Highlights

Optimal for metering applications, this connector kit provides a secure mechanical connection ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: K1540L
• Country of Origin: United States
• Application: Metering Accessory
• Material: Aluminum
• Connection: Mechanical
• Insulation: None
• Voltage Rating: 600 V
• Temperature Rating: 75 °C
• Number of Conductors: 1
• Length: 7 inches
• Width: 2.813 inches
• Height: 5 inches
• Mounting: Stud
• Standard: UL Listed
