Milbank CP3B12119A22 Ring Type 200 Amperes 240 Volt 4 Terminal Main Circuit-breaker 24 Circuit Loadcenter 22k Mint Green

Product Description

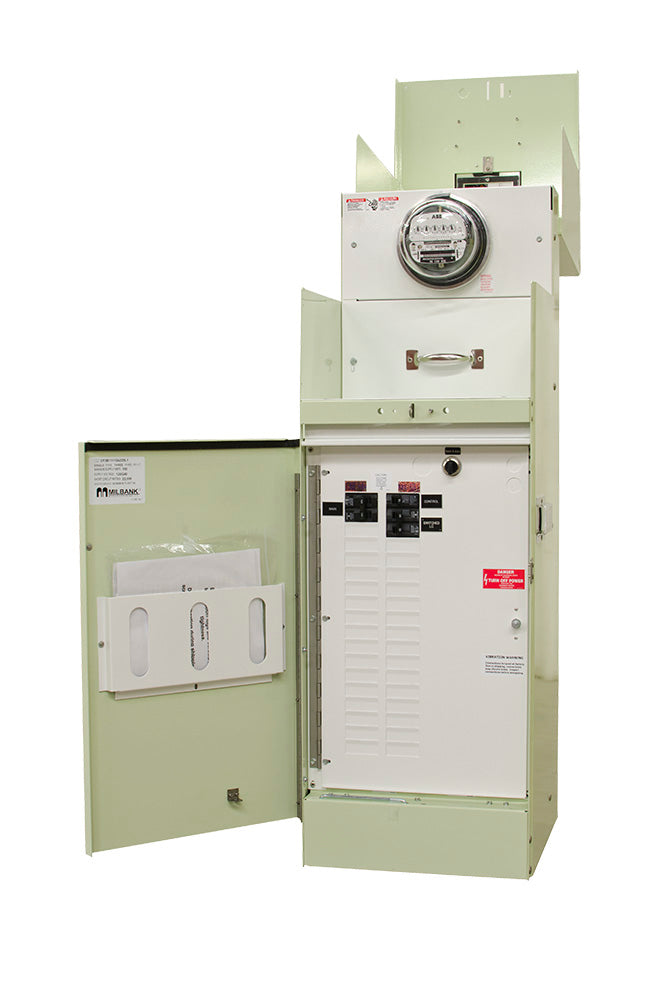

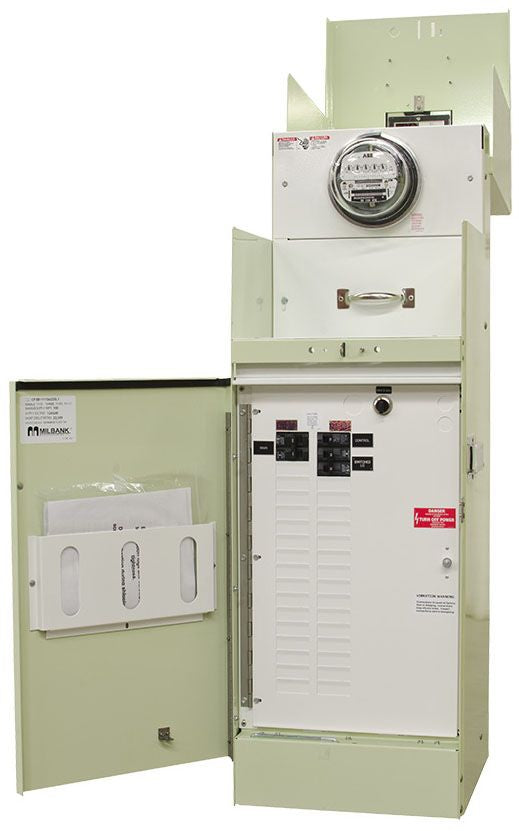

The Milbank CP3B12119A22 is a ring type metered commercial pedestal designed for efficient power distribution. With a 200 ampere current rating and a voltage of 240 volts, this load center accommodates 24 circuits. It is suitable for various applications and conditions.

• UL listed and meets NEMA 3R standards for durability.
• Constructed with G90 galvanized steel and finished with powder coat for added protection.
• Features a single mechanical terminal setup with four terminations, ensuring reliable connections.

Product Highlights

This Milbank meter pedestal is perfect for commercial use, designed to handle significant power loads while providing user-friendly features.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Type: Ring Type Metered Commercial Pedestal

Technical Specifications

• Amperage: 200 Amp
• Voltage: 240 Volt
• Dimensions: 17 inches (Length) x 16 inches (Width) x 48 inches (Height)
• Enclosure: NEMA 3R
• Material: Steel
• Frequency: 60 Hz
• Hub Style: No Hub Opening
• Cable Entry: Underground
• Mounting Type: Pad Mount
• Number of Phases: 1 Phase
• Number of Terminations: 4
