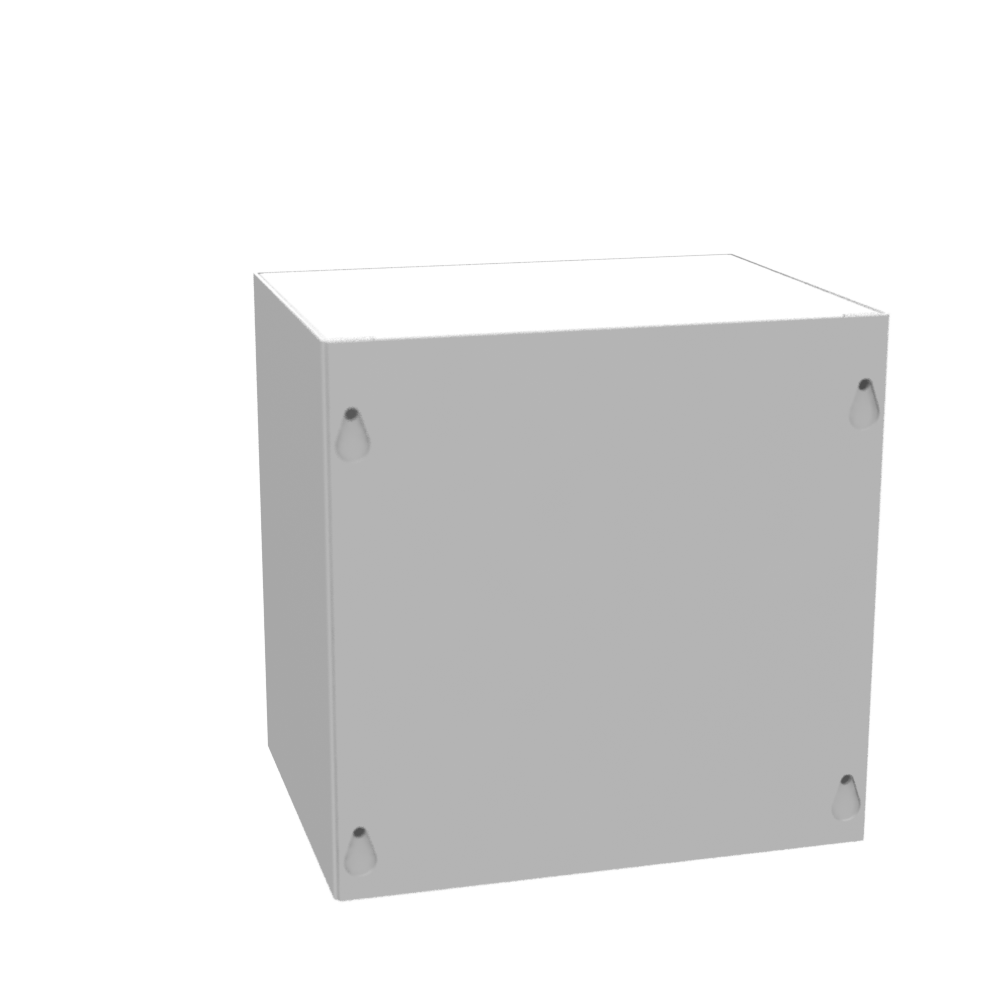

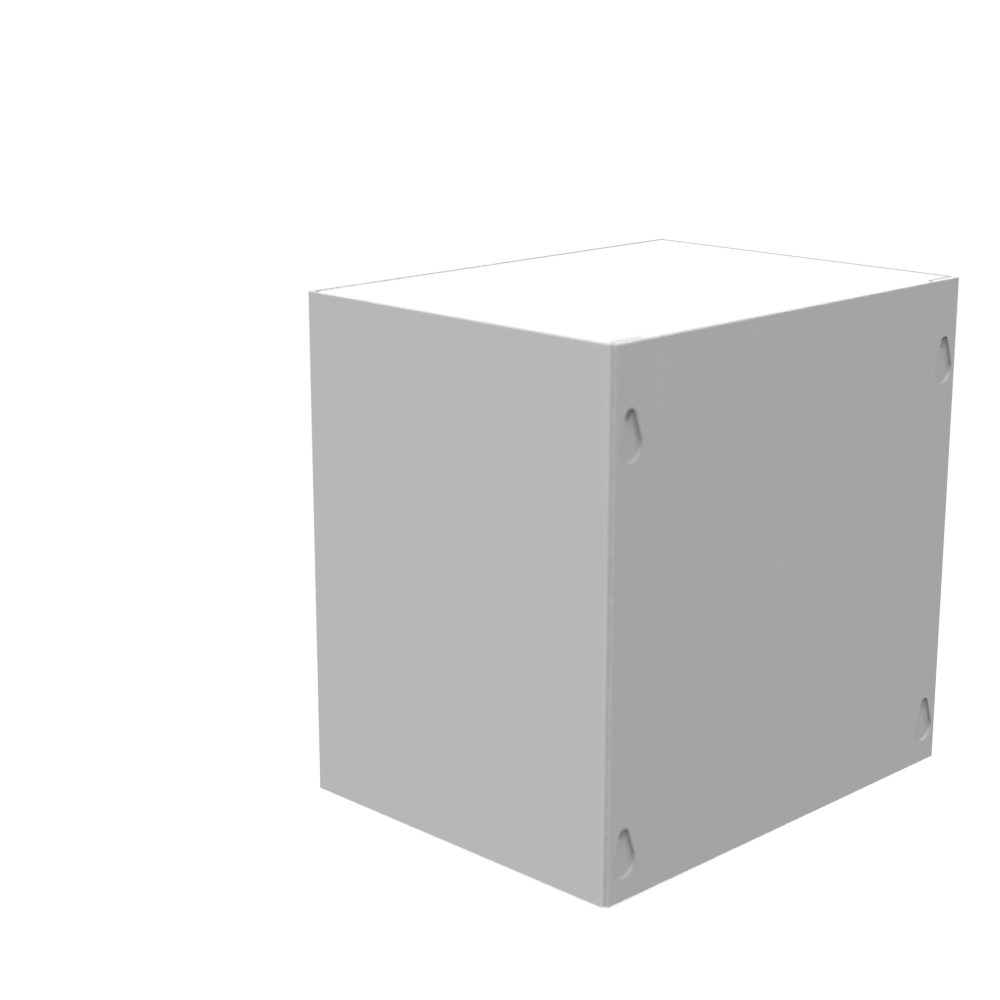

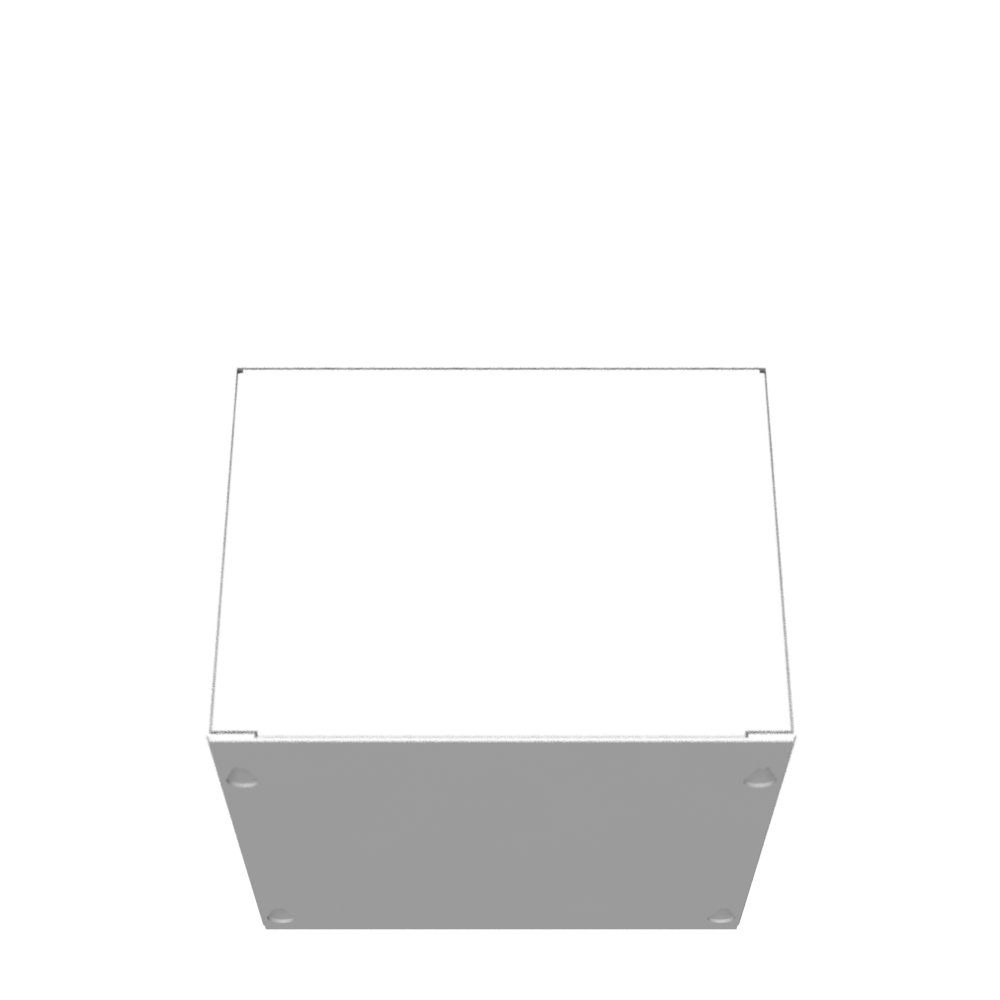

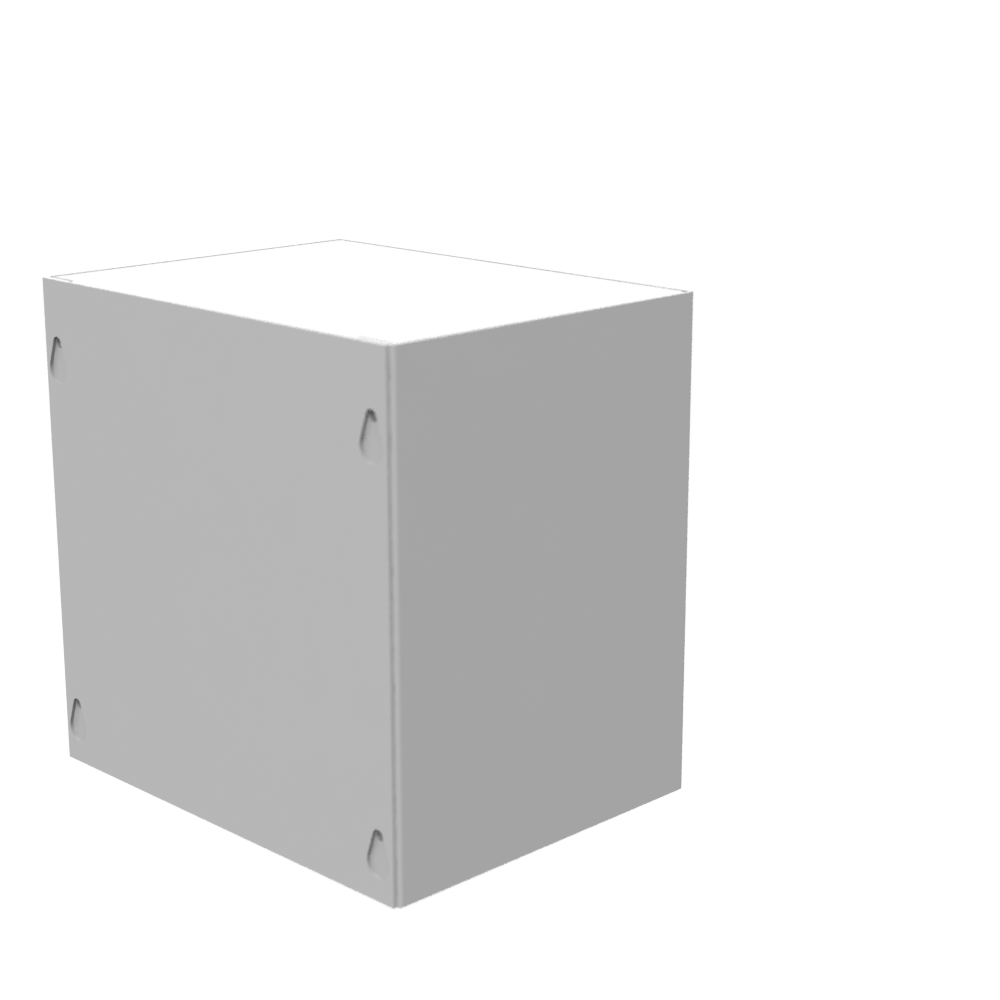

Milbank 886-SC1 nema 1 screw cover junction box 8 inch x 8 inch x 6 inch

Product Description

The Milbank 886-SC1 is a NEMA 1 polyester powder-coated steel screw cover junction box. Measuring 8 inches x 8 inches x 6 inches, this ANSI 61 gray box is designed for indoor use, providing protection against contact with enclosed equipment where moisture and dust are not a problem.

• Constructed from steel with a polyester powder coat finish.
• Features teardrop slots for easy installation.

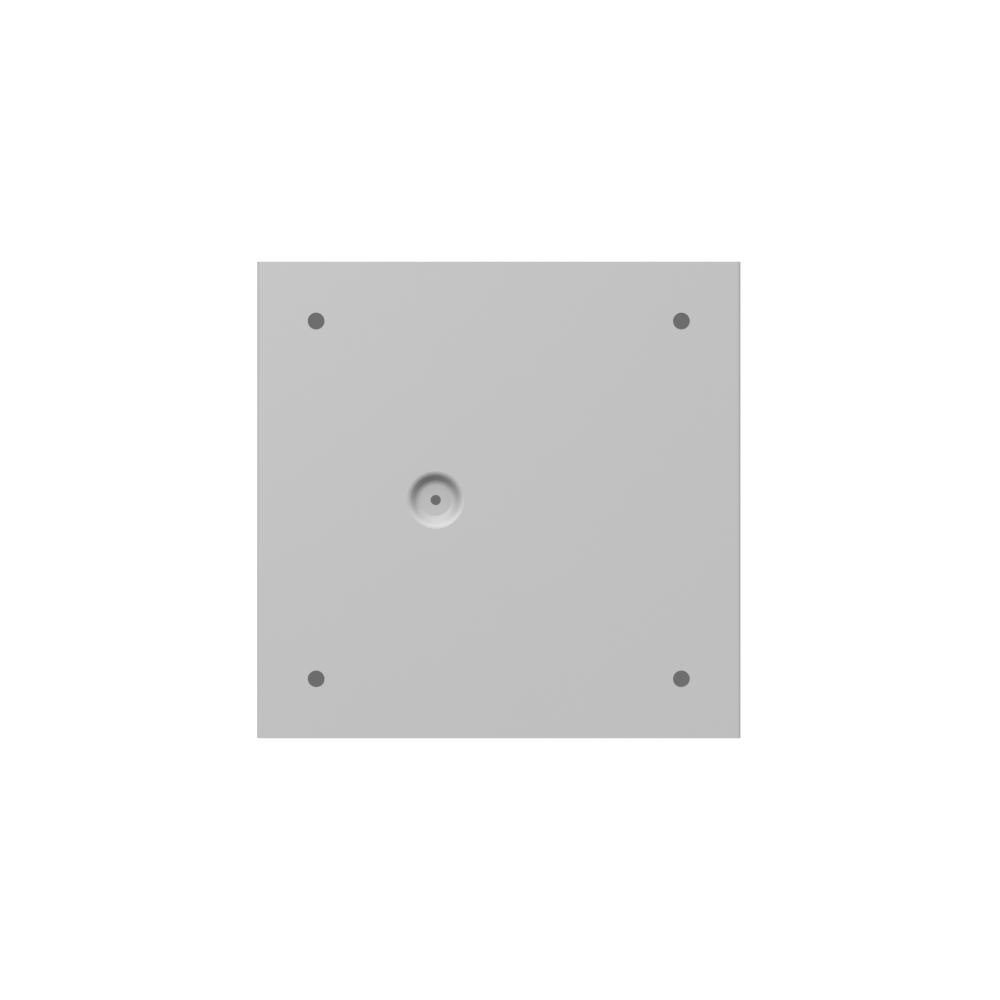

• Equipped with mounting holes in the back of the enclosure.

Product Highlights

This Milbank junction box is ideal for mounting electrical equipment, offering a secure and accessible enclosure.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 886-SC1
• Country of Origin: China

Technical Specifications

• Brand: Milbank
• Material: Steel with Polyester Powder Coat
• Style: Compact
• Finish Type: Powder Coated
• Installation Type: Screw-In
• Specification Met: Nema 1
• NEMA Rating: 1
• Cover Mounting: Screw Cover
• Height: 8 in.
• Width: 8 in.
• UNSPSC: 39121324
• Application: Enclosure for Mounting Electrical Equipment
• Cable Entry: No Knockouts
• Color: ANSI 61 Gray
• Construction: Welded
• Door: Cover
• Hinge Type: No Hinge
• Latch: Cover Secured with Plated Screws
• Mounting: Wall Mount
• Number Of Outlet: 0
• Standard: UL Listed
• Top: Plain Top
• Type: Screw Cover
• Length: 6.0 IN
• IP/NEMA Rating: NEMA 1
• ECCN: EAR99
