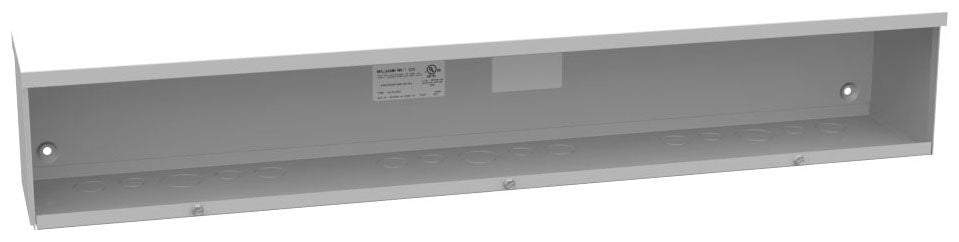

Milbank 6636-GSC3R Wire Trough 6x6 3 Foot Nema 3R

Product Description

The MILBANK 6636-GSC3R is a NEMA 3R-rated wire trough designed for organizing and protecting electrical conductors in outdoor or weather-exposed installations. Measuring 6 inches wide by 6 inches deep and 3 feet in length, this trough provides a routed pathway for wiring between electrical enclosures, panels, and metering equipment. The NEMA 3R rating means the enclosure resists rain, sleet, and external ice formation, making it suitable for exterior service locations. Licensed electricians typically install this trough as part of service entrance assemblies, meter socket installations, and distribution equipment layouts.

This wire trough is suited for residential and light commercial electrical installations where conductors must be routed between metering equipment and distribution panels in outdoor environments. It is commonly used in utility meter base setups, service entrance configurations, and grouped panel installations where a protected wiring pathway is required. Its 3-foot length accommodates standard spacing between electrical enclosures in typical service installations.

Key Features

• NEMA 3R rating provides protection against rain, sleet, and ice in outdoor installations
• 6-inch by 6-inch interior cross-section offers ample conductor capacity
• 3-foot length suits standard service entrance and meter base spacing
• Designed for use with metering, distribution, and service entrance enclosures
• Weighs 18 pounds for stable, solid construction

Compatibility

Designed as an OEM-style wire trough for use with outdoor electrical service entrance assemblies, meter sockets, and distribution enclosures requiring a NEMA 3R-rated conductor pathway.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for raceways and wire management. De-energize all associated circuits and verify absence of voltage before opening or working within connected enclosures. Secure the trough to a mounting surface using appropriate hardware to ensure it is plumb and does not allow water ingress at connection points. Do not exceed the conductor fill capacity specified by the NEC for the trough cross-section.

Technical Specifications

• NEMA Rating: NEMA 3R
• Width: 6 inches
• Depth: 6 inches
• Length: 3 feet
• Weight: 18 pounds
• UPC: 78457210796

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 6636-GSC3R
