Milbank 363612-SC3R Enclosure 36 x 12 x 36

Product Description

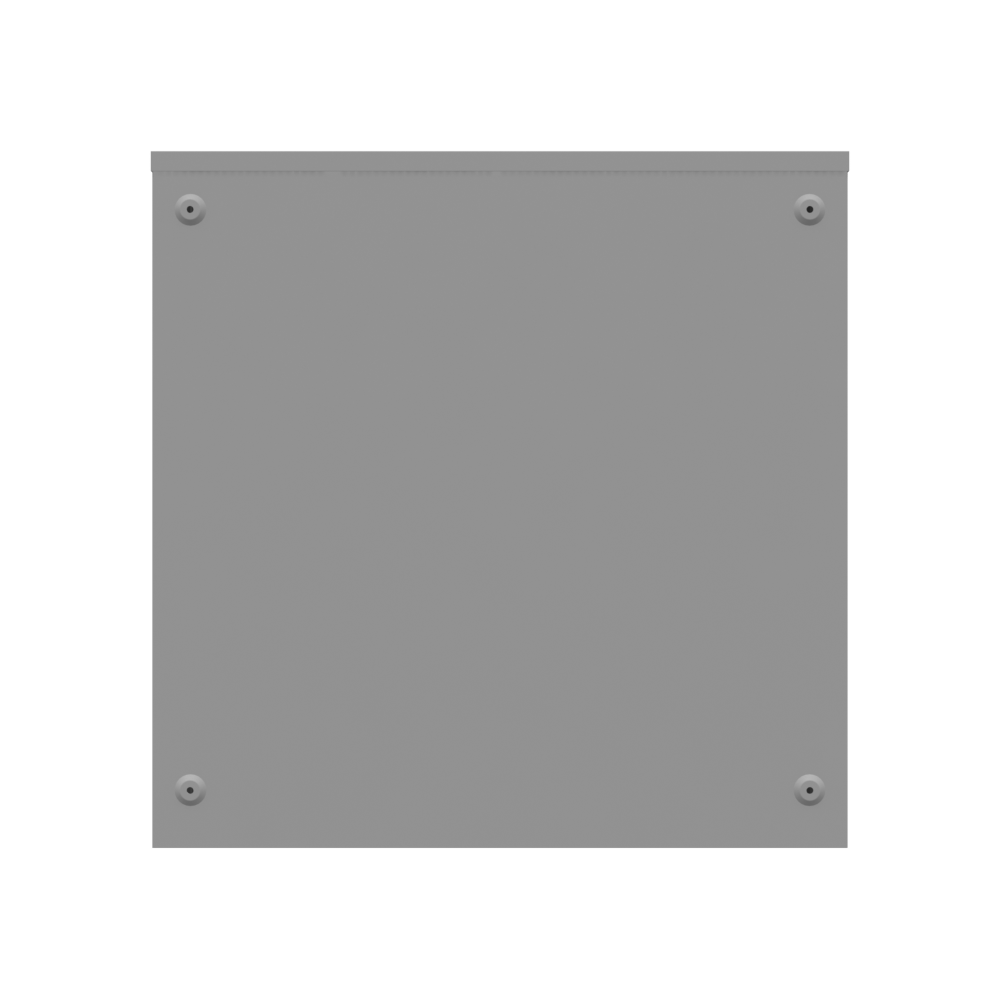

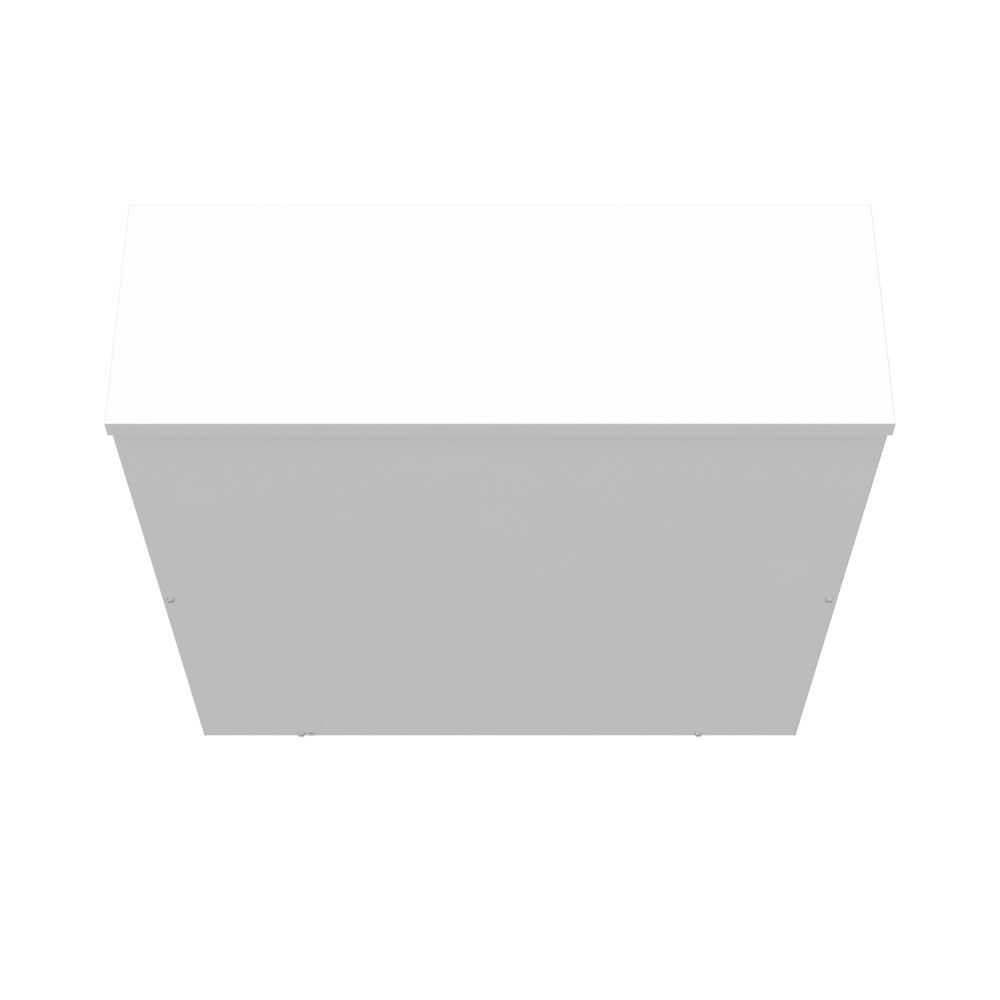

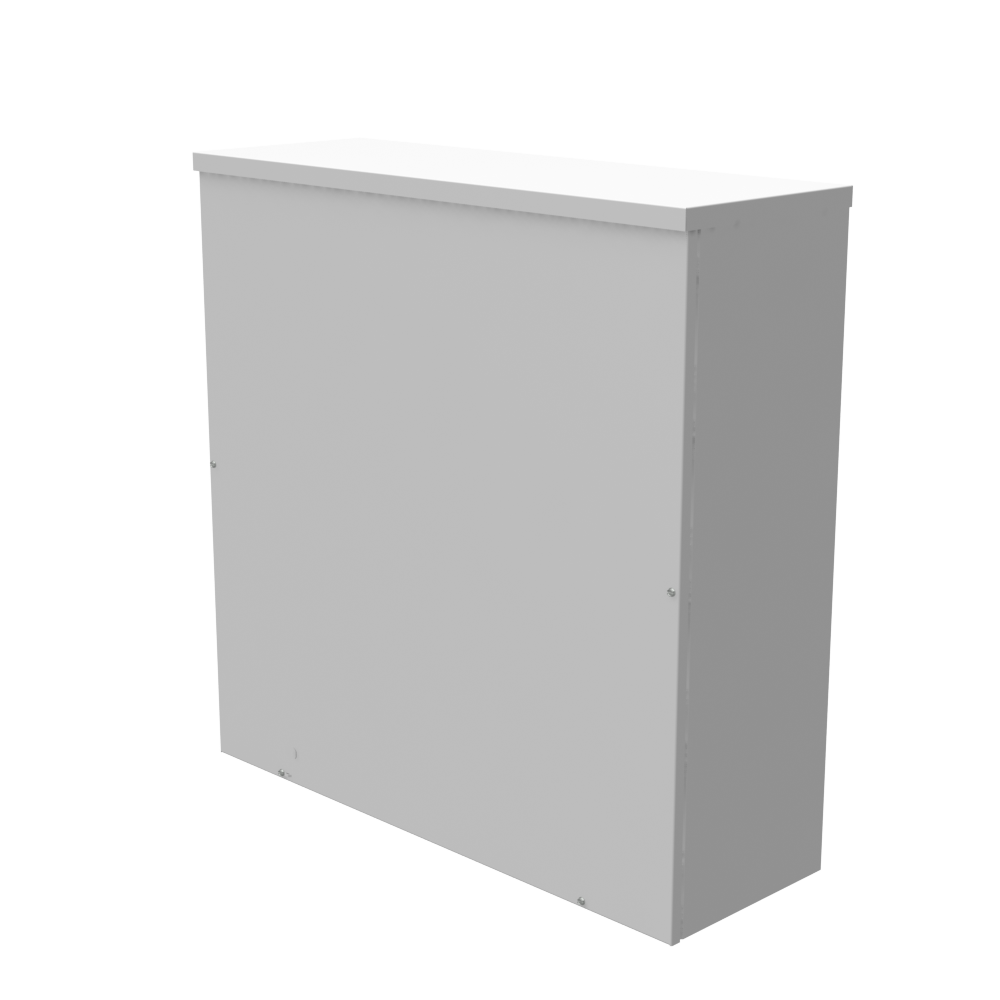

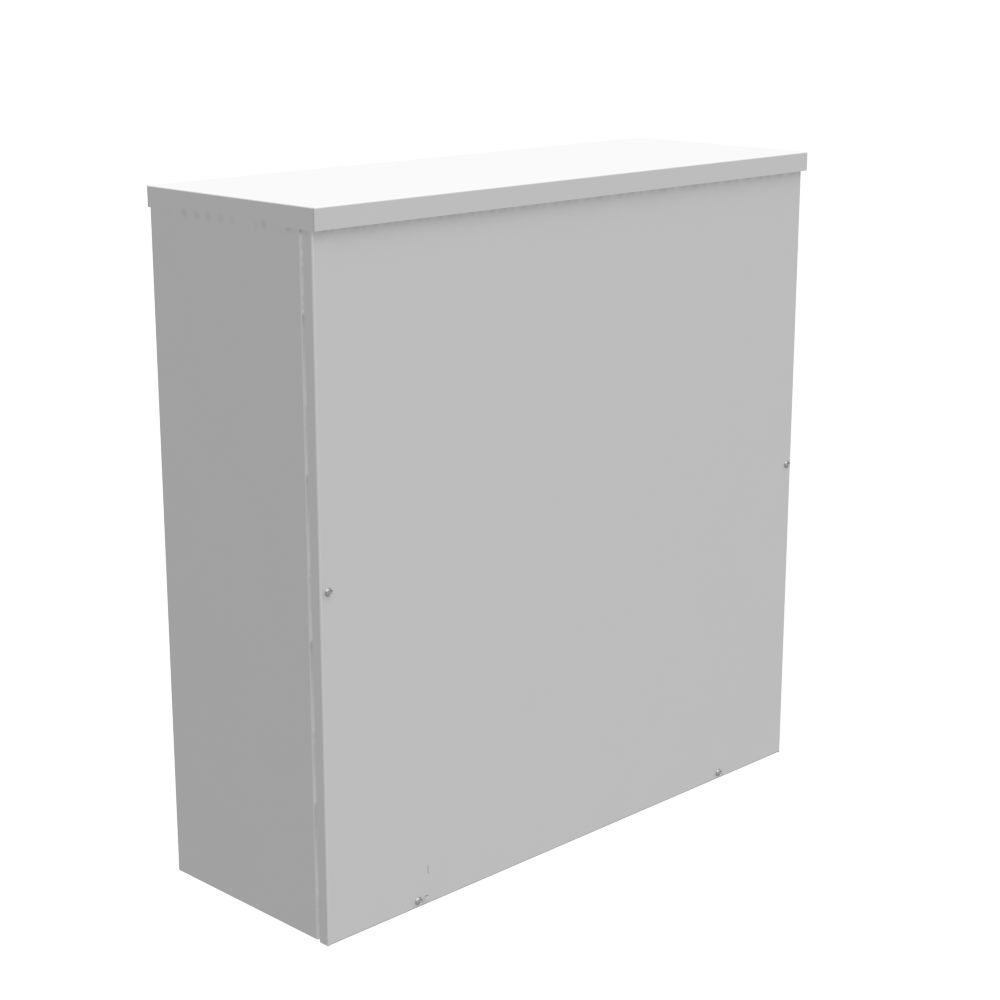

The MILBANK 363612-SC3R is an enclosure designed for mounting electrical equipment. Constructed from G90 galvanized steel with a powder coat finish in ANSI 61 gray, it features a screw cover and Type 3R NEMA rating. The enclosure includes knockouts for cable entry and a drip shield top.

• Constructed from G90 galvanized steel with powder coat finish
• Features knockouts for cable entry
• NEMA Type 3R rating

Product Highlights

Durable steel enclosure with screw cover, ideal for mounting electrical equipment and providing protection in various environments.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 363612-SC3R

Technical Specifications

• Application: Enclosure for Mounting Electrical Equipment
• Brand Name: Milbank
• Cable Entry: Knockouts
• Color: ANSI 61 Gray
• Construction: Welded
• Door: Cover
• Hinge Type: No Hinge
• Latch: Cover Secured with Plated Screws
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Wall Mount
• NEMA Rating: Type 3R
• Number Of Outlet: 0
• Standard: UL Listed
• Top: Drip Shield Top
• Type: Screw Cover
• Height: 36.0 IN
• Length: 12.0 IN
• Width: 36.0 IN
