Milbank 24246-SC1 Screw Cover Junction Box 24-Inch x 24-Inch x 6-Inch

Product Description

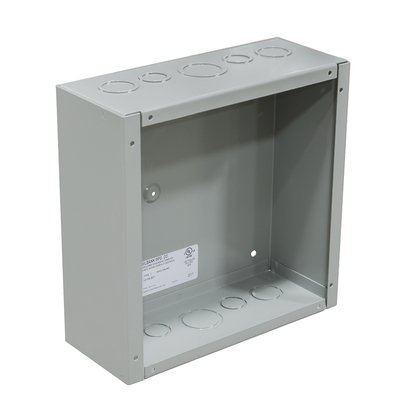

The Milbank 24246-SC1 screw cover junction box, finished with ANSI 61 gray polyester powder coating, is designed for indoor use, providing protection against contact with enclosed equipment. Constructed from 16/14/12-gauge G90 steel, this NEMA 1 rated junction box measures 24-Inch x 24-Inch x 6-Inch and features nine knockouts. It is UL listed and engineered for use as a junction box or pull box.

• Cover has teardrop slots for quick and easy installation and is attached to body by making use of plated screws
• Grounding emboss has green plated grounding screw
• Holes are incorporated into the back of enclosure for mounting

Product Highlights

This Milbank junction box is ideal for providing a secure and accessible enclosure for electrical connections.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 24246-SC1
• Country of Origin: United States of America

Technical Specifications

• Size: 24 Inch Width x 24 Inch Height
• GTIN: 00784572104235
• UNSPSC: 39121332
• Country Of Origin: United States of America
• Standards: UL Listed
• Number of Knockouts: 9.0000
• NEMA Rating: NEMA 1
• Mounting: Wall
• Material: 16/14/12 Gauge G90 Steel
• Item Name: Screw Cover Junction Box
• Finish: Polyester Powder Coated
• Depth: 6
• Color: ANSI 61 Gray
• Brand Name: Milbank
• UPC: 78457210423
• Manufacturer Name: Milbank
• Manufacturer Part Number: 24246-SC1
• IP/NEMA Rating: NEMA 1
