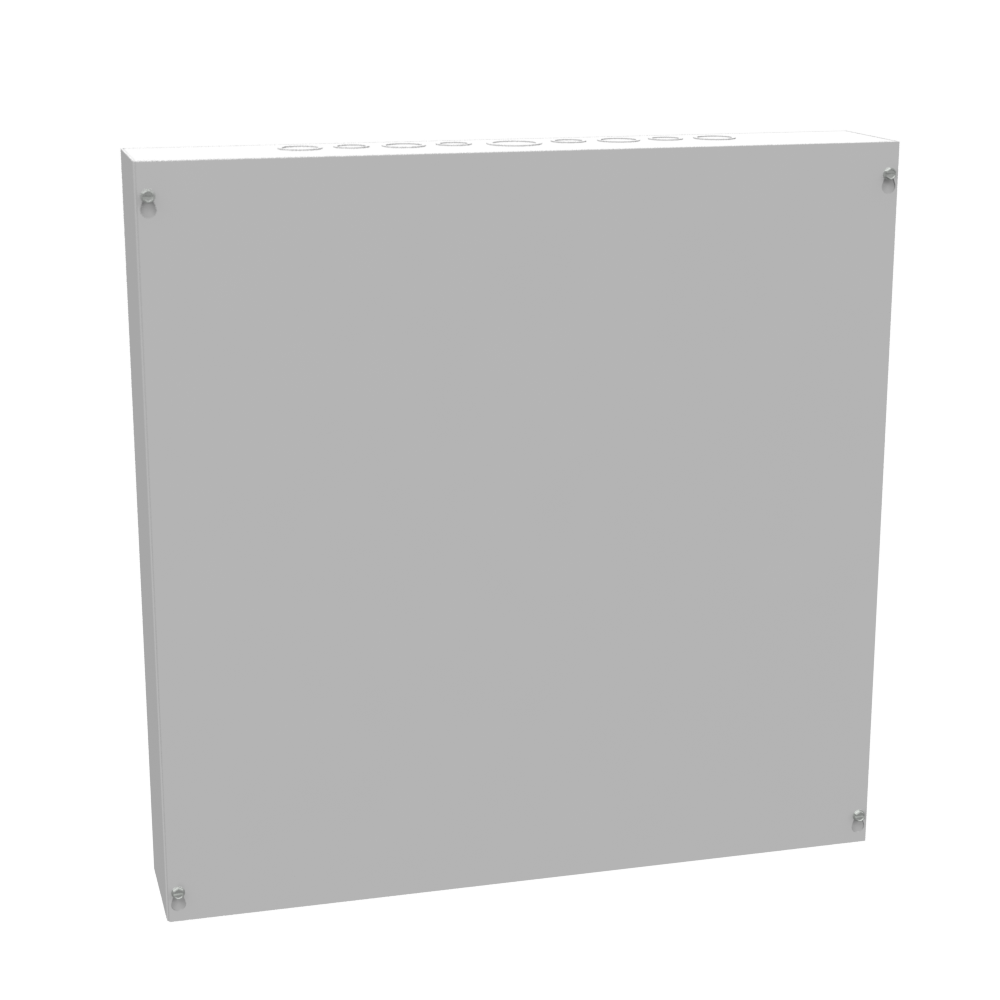

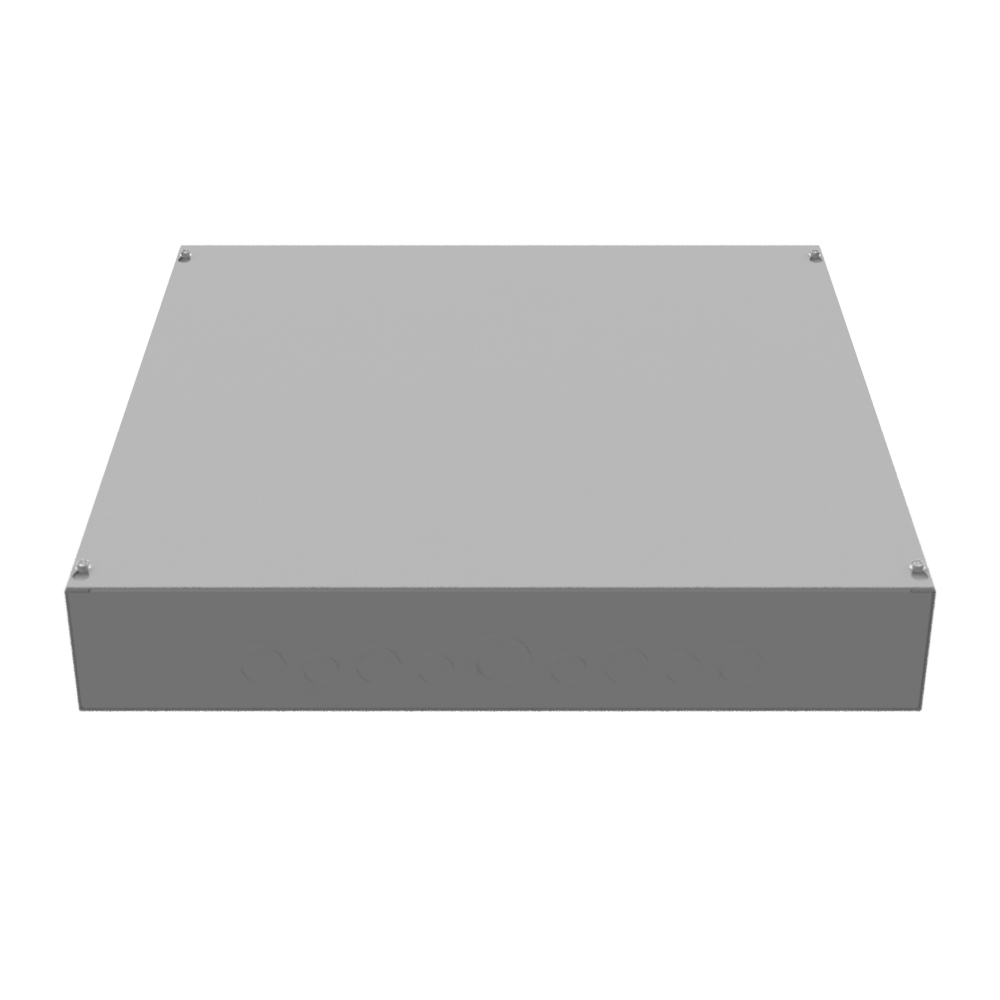

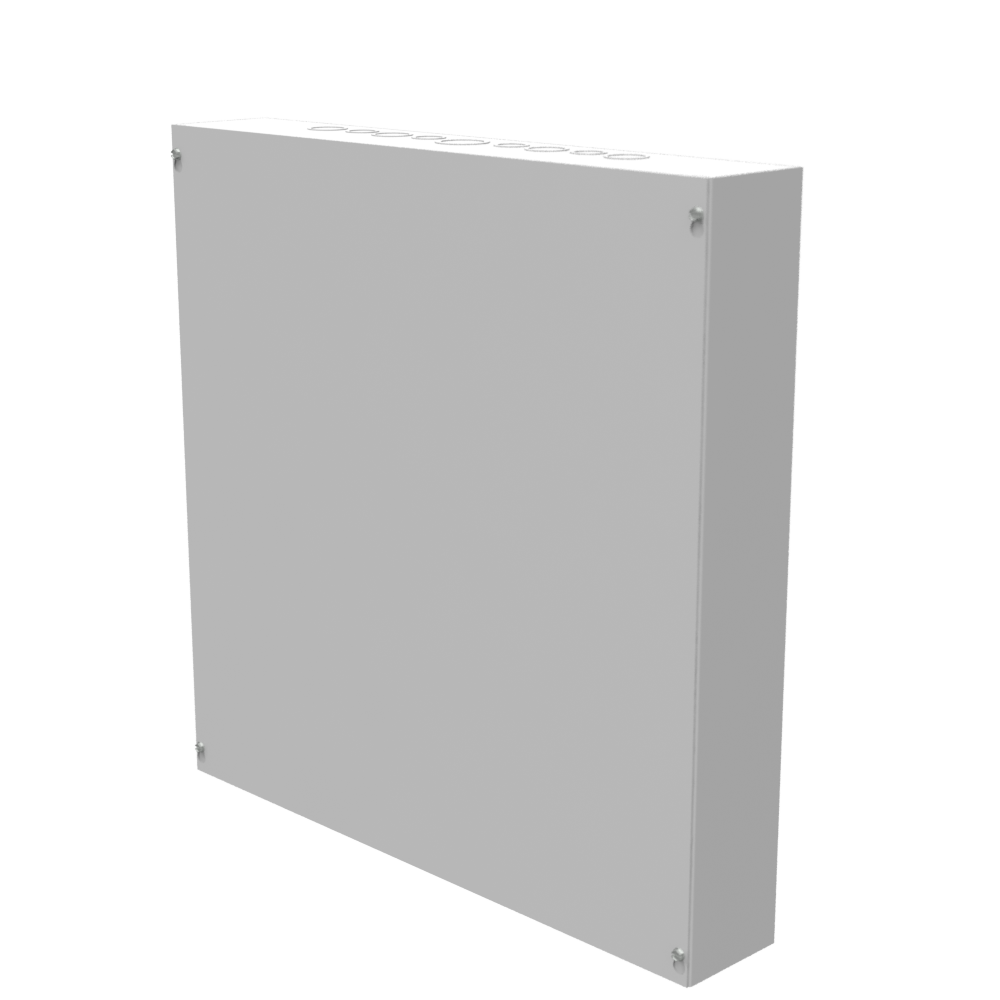

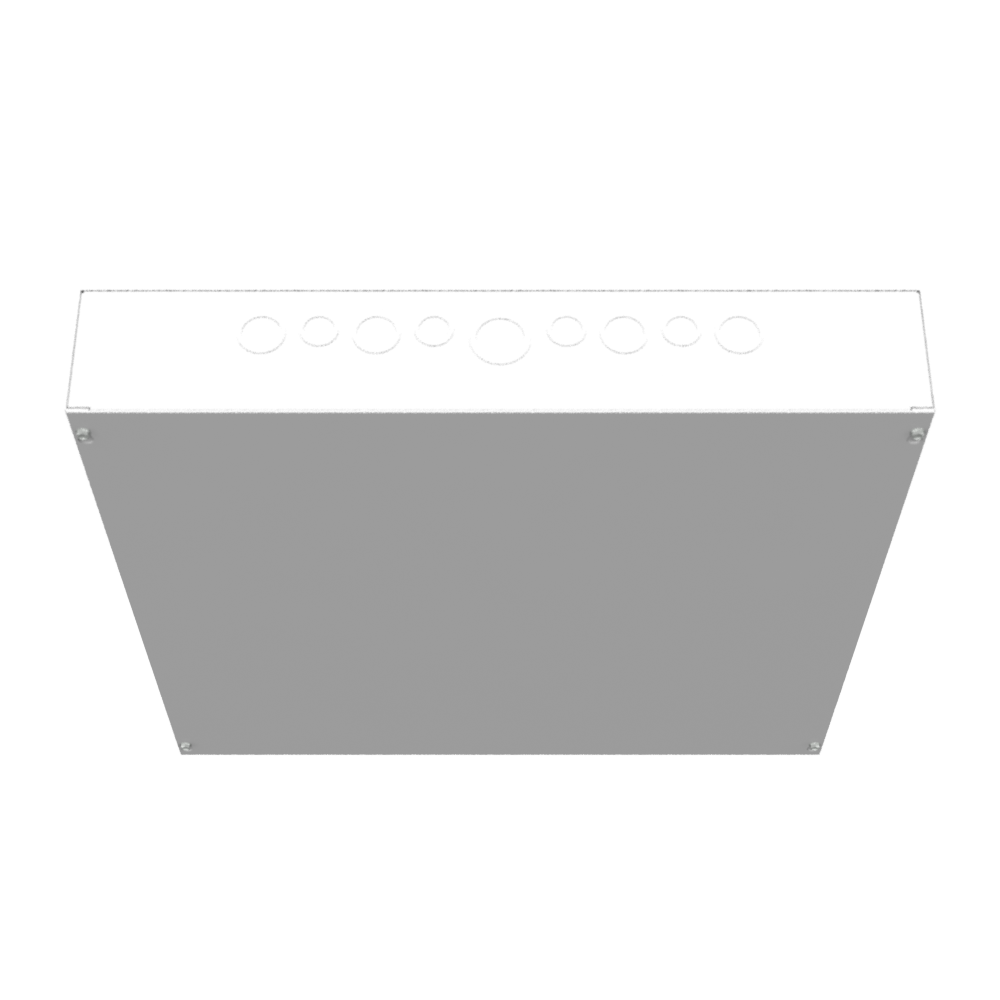

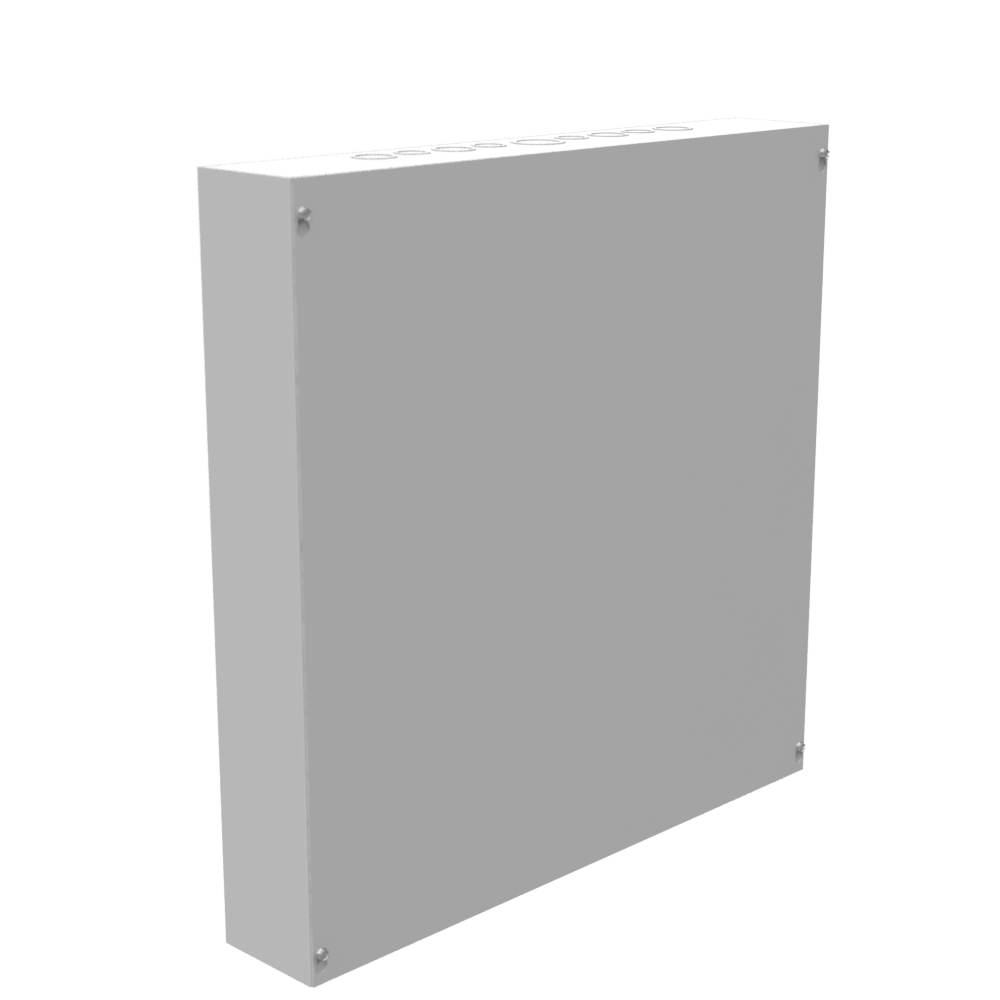

Milbank 24244-SC1 NEMA 1 Polyester Powder Coated Steel Screw Cover Junction Box 24-Inch x 24-Inch x 4-Inch

Product Description

The MILBANK 24244-SC1 screw cover junction box is suitable for indoor use, providing protection against contact with enclosed equipment. Constructed from 16/14/12-gauge G90 steel with a polyester powder-coated finish in ANSI 61 gray, it measures 24-Inch x 24-Inch x 4-Inch. Engineered as a junction box or pull box.

• Cover has teardrop slots for quick and easy installation and is attached to body by making use of plated screws
• Grounding emboss has green plated grounding screw
• Holes are incorporated into the back of enclosure for mounting

Product Highlights

Provides protection against contact with enclosed equipment. UL Listed. Cover has teardrop slots for easy installation.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 24244-SC1
• Country of Origin: United States of America

Technical Specifications

• Size: 24 Inch Width x 24 Inch Height
• Energy Star Flag: No
• GTIN: 00784572104174
• UNSPSC: 39121332
• RoHS Flag: Contact manufacturer
• Country Of Origin: United States of America
• Standards: UL Listed
• Number of Knockouts: 9.0000
• NEMA Rating: NEMA 1
• Mounting: Wall Mount
• Material: 16/14/12 Gauge G90 Steel
• Item Name: Screw Cover Junction Box
• Finish: Polyester Powder Coated
• Depth: 4
• Color: ANSI 61 Gray
• Brand Name: Milbank
• UPC: 78457210417
• Manufacturer Name: Milbank
• Manufacturer Part Number: 24244-SC1
• Application: Enclosure for Mounting Electrical Equipment
• Cable Entry: Knockouts
• Construction: Welded
• Door: Cover
• Hinge Type: No Hinge
• Knockouts: True
• Latch: Cover Secured with Plated Screws
• Standard: UL Listed
• Top: Plain Top
• Type: Screw Cover
• Height: 24.0 IN
• Length: 4.0 IN
• Width: 24.0 IN
• Specification Met: Nema 1
