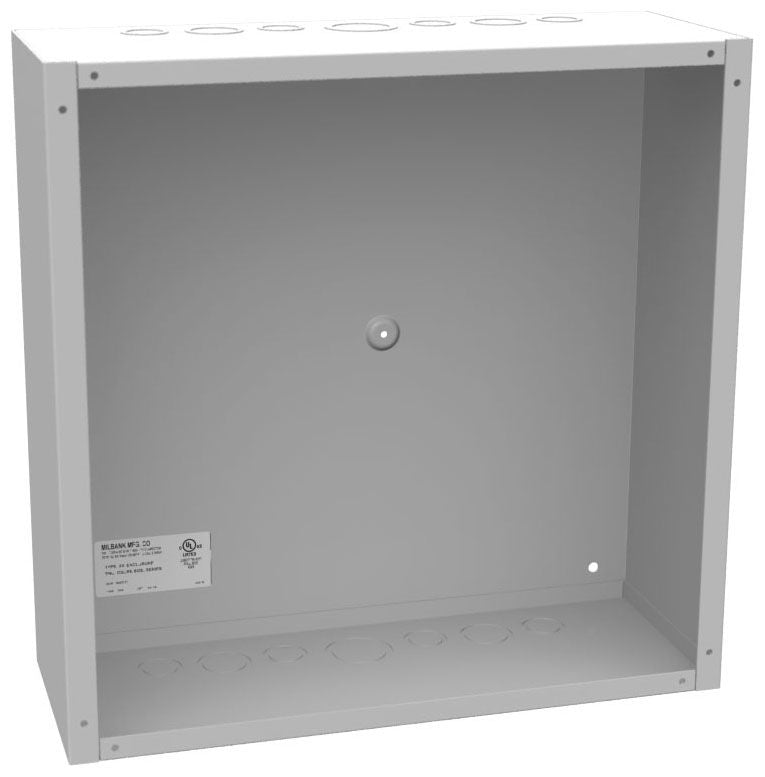

Milbank 16166-SC1 Screw Cover Enclosure Box 16x16x6

Product Description

The MILBANK 16166-SC1 is a screw cover enclosure box designed for electrical distribution, junction, and pull box applications. The unit measures 16 x 16 x 6 inches and weighs 16.5 pounds, indicating a heavy-gauge steel construction suited for demanding service environments. A screw cover design allows repeated access for wiring terminations, inspections, and circuit additions without specialized tooling. Licensed electricians and electrical contractors install this type of enclosure in both new construction and retrofit projects across commercial, industrial, and utility settings.

This enclosure is well suited for housing low-voltage controls, terminal blocks, wire splices, and distribution components in environments where a surface-mounted, accessible box is required. The 6-inch depth provides sufficient interior clearance for conduit entries and conductor routing. Typical applications include electrical rooms, mechanical rooms, rooftop equipment installations, and inline pull points along conduit runs in commercial and light-industrial facilities.

Key Features

• Screw cover design provides secure closure with full-face access when opened
• 16 x 16 x 6 inch interior accommodates a wide range of wiring and component configurations
• At 16.5 pounds, construction reflects heavy-gauge material suitable for permanent installation
• Surface-mount profile compatible with standard conduit knockouts and field-drilled entries
• UPC: 78457210285

Compatibility

Designed as an OEM-style screw cover enclosure for use in commercial and industrial electrical installations requiring a surface-mounted junction or pull box with a nominal 16 x 16 x 6 inch form factor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for enclosures and junction boxes. De-energize all circuits feeding the enclosure before opening or working inside. Secure the enclosure to a structural surface using fasteners rated for the mounting material and verify that all conduit entries are properly sealed per local code. Do not exceed the enclosure fill capacity when routing conductors.

Technical Specifications

• Dimensions: 16 x 16 x 6 inches
• Weight: 16.5 pounds
• UPC: 78457210285

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 16166-SC1
