Product Description

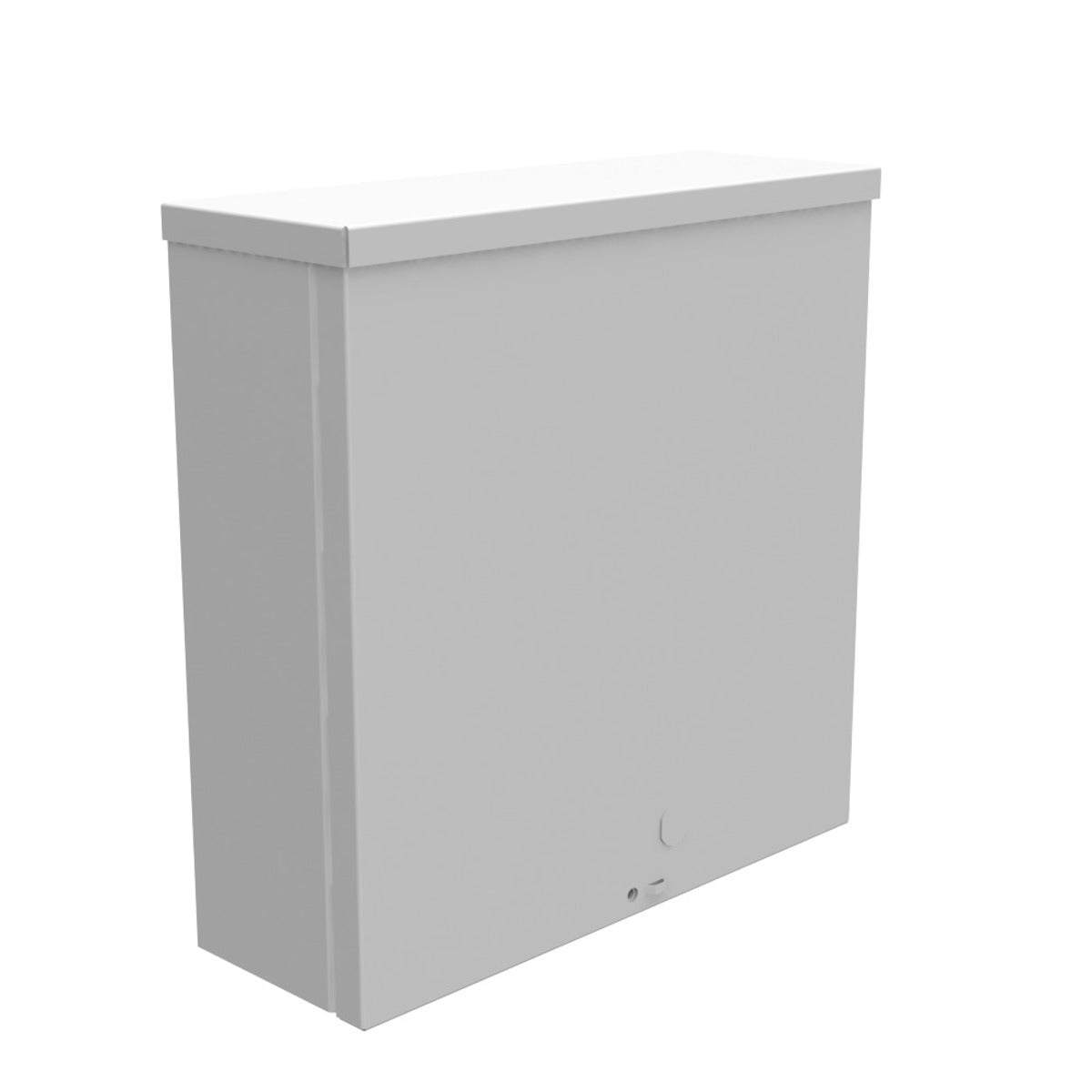

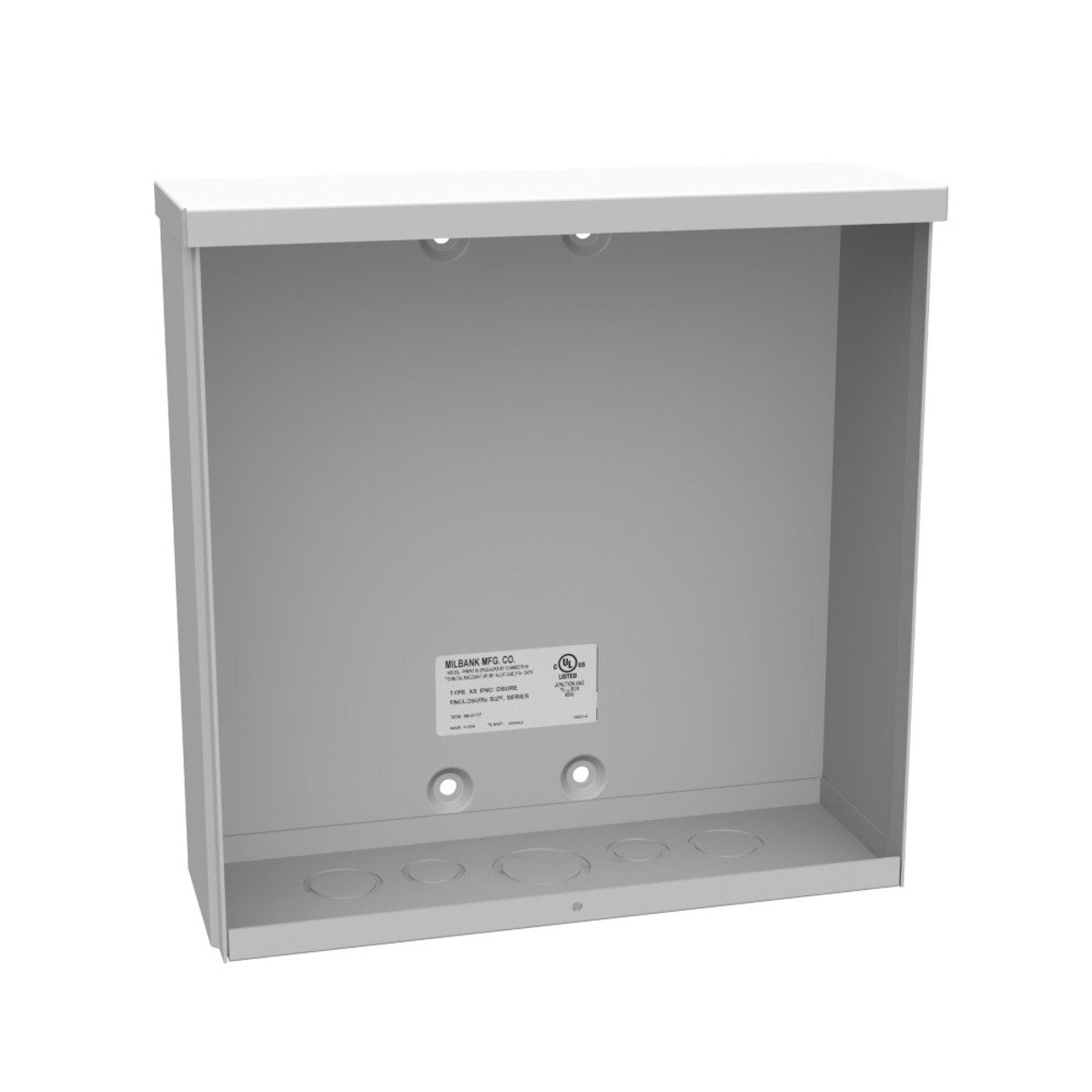

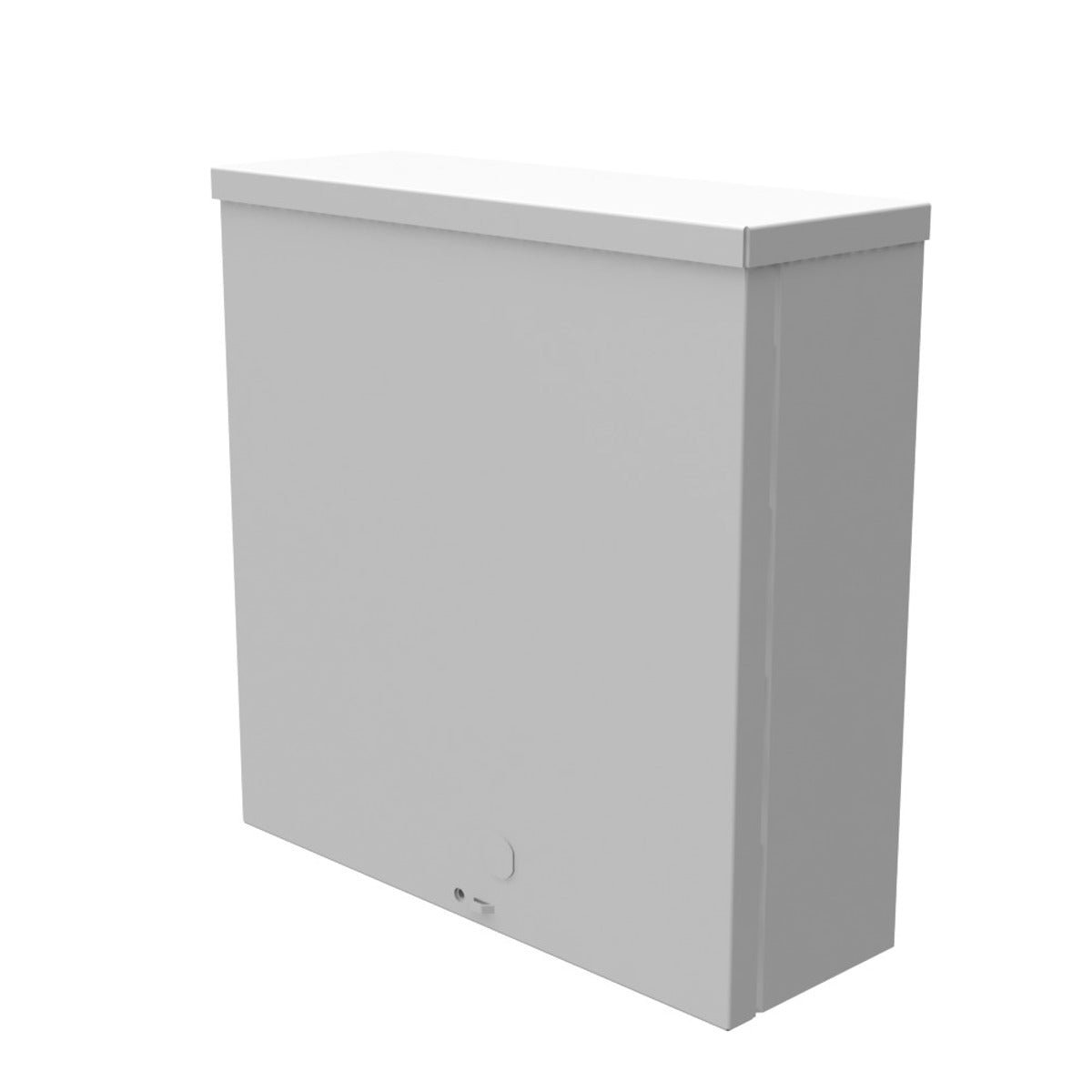

The MILBANK 12124-SC3R screw cover is a type 3R enclosure designed for mounting electrical equipment. Constructed from G90 galvanized steel with a powder coat finish, it features knockouts for cable entry and a drip shield top. Mounting embosses are provided on the back for easy installation.
- Screw Cover
- Type 3R
- UL Listed
Product Highlights
This enclosure is ideal for interior wall mount applications requiring a NEMA 3R rating.
Product Information
Standard Information
-
Brand: MILBANK
-
Manufacturer Part Number: 12124-SC3R
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 12124-SC3R
-
Manufacturer: Milbank
-
Brand: Milbank
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Enclosure for Mounting Electrical Equipment
-
Cable Entry: Knockouts
-
Color: ANSI 61 Gray
-
Construction: Welded
-
Material: Alloy Steel
-
Mounting: Wall Mount
-
NEMA Rating: Type 3R
-
Standard: UL Listed
-
UPC: 784572101173
-
GTIN: 00784572101173
-
Item Type: Screw Cover
-
Door: Cover
-
Hinge Type: No Hinge
-
Knockouts: True
-
Latch: Cover Secured with Plated Screws
-
Number Of Outlet: 0
-
Top: Drip Shield Top
-
Type: Screw Cover
-
Height: 12.0 IN
-
Length: 4.0 IN
-
Width: 12.0 IN
-
Style: Compact
-
Finish Type: Powder Coated
-
Installation Type: Screw-In
-
Specification Met: Nema 3r
-
Mounting Style: Screw
-
Box Shape: Square
-
Suitable For: Interior, Wall
-
IP/NEMA Rating: NEMA 3R
-
Features: Waterproof
