Milbank 101060-GSC1-NK Lay-In Wireway 60-Inch x 10-Inch x 10-Inch

Product Description

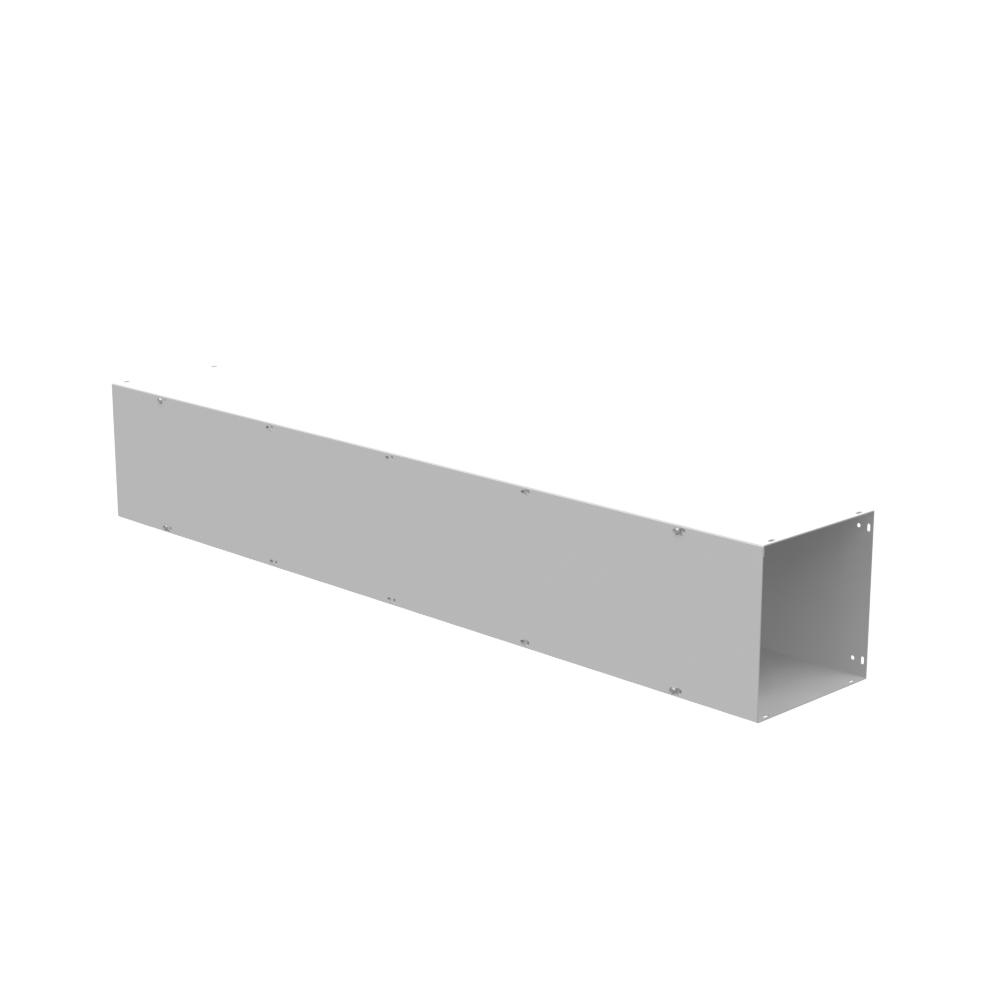

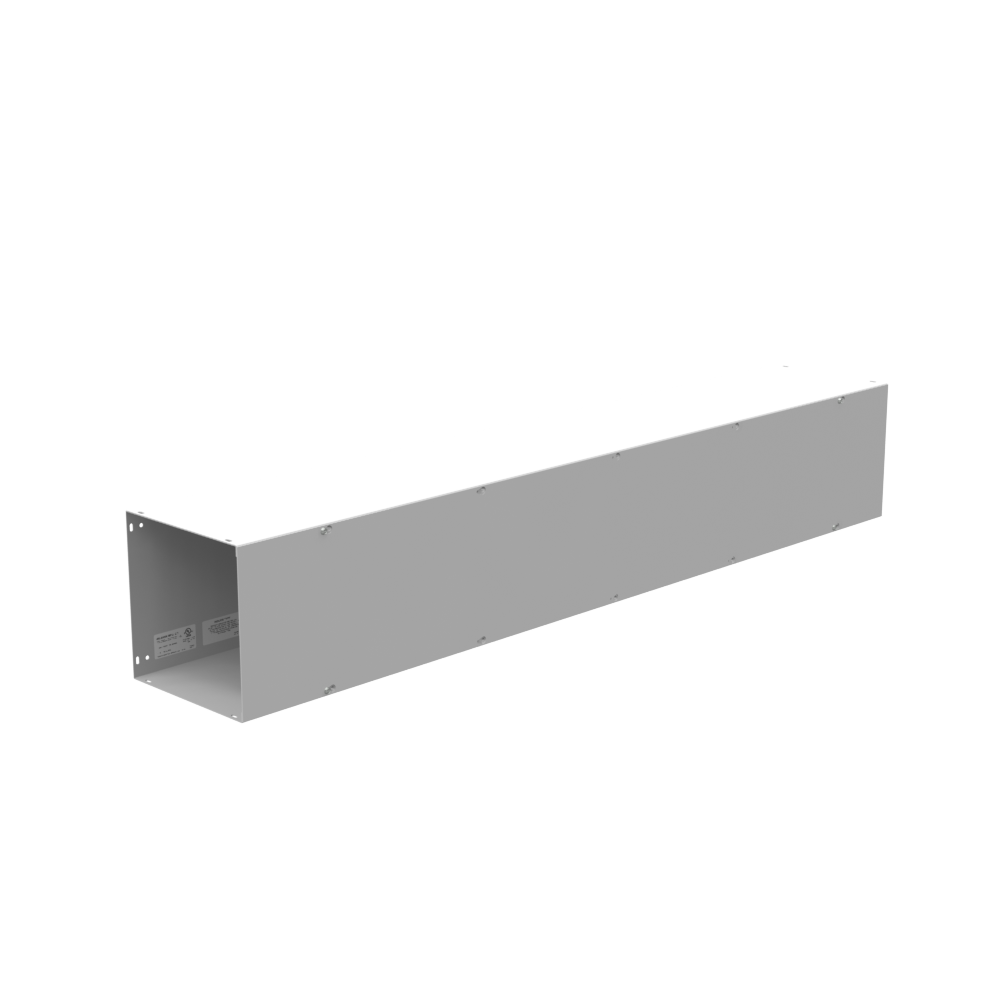

The MILBANK 101060-GSC1-NK is a lay-in wireway designed for indoor use, allowing for long, uninterrupted runs of electrical wiring where moisture and dust are not a concern. Constructed from code G90 gauge steel with an ANSI 61 gray polyester powder coat finish. It features a screw cover and no knockouts.

• Designed for long interrupted runs of electrical wiring in applications where moisture and dust are not a problem.
• All straight sections and fittings are completely open on one side so wires can be laid-in to the wireway.

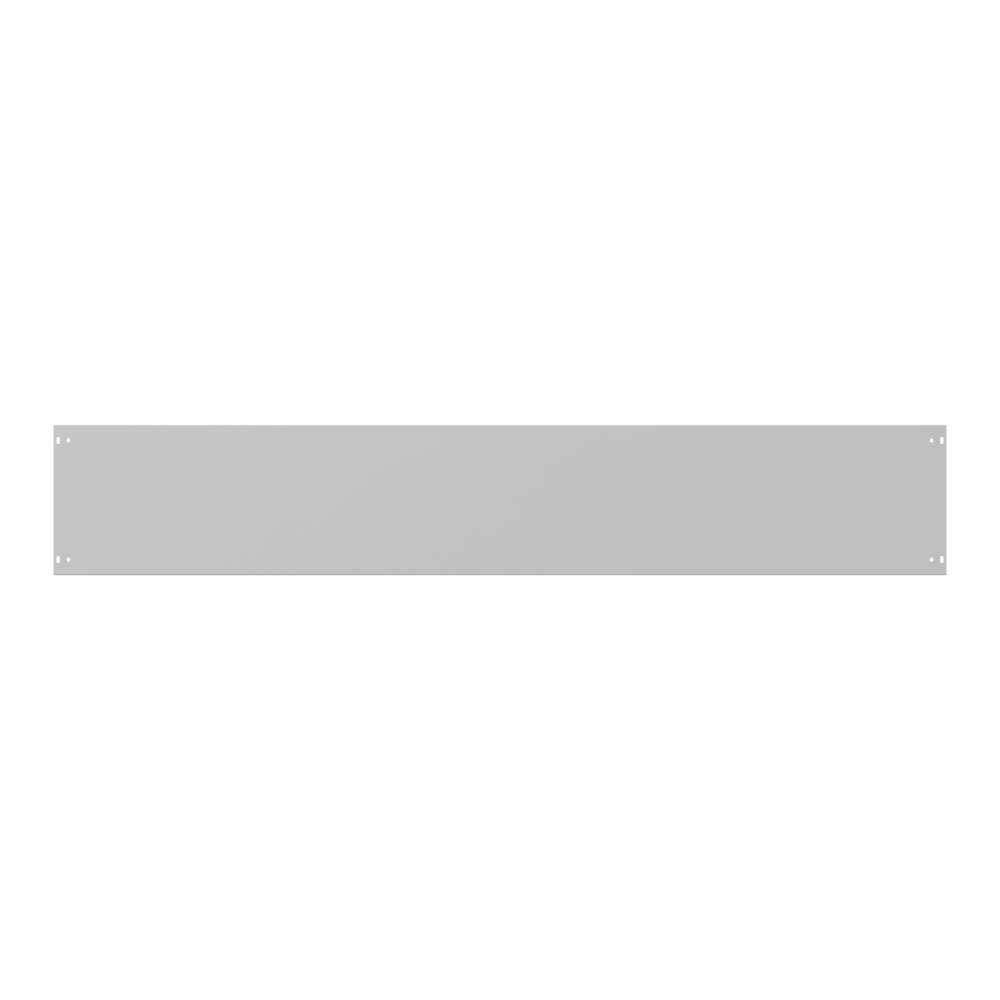

• Covers incorporate teardrop slots for easy installation and are attached with plated steel screws.

Product Highlights

This Milbank lay-in wireway is ideal for creating organized and accessible electrical wiring systems in dry, indoor environments.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 101060-GSC1-NK
• Country of Origin: US

Technical Specifications

• Application: Wireway
• Brand Name: Milbank
• Cover Type: Screw Cover
• Enclosure: Indoor Enclosure
• Finish: ANSI 61 Gray Powder Coat Finish
• Height: 10.0 IN
• Knockouts: False
• Length: 60.0 IN
• Material: Steel
• NEMA Rating: Type 1
• Nominal Cross Section: 10x10
• Standard: UL Listed
• Straight Section Length: 60
• Type: Lay In Wireway
• Width: 10.0 IN
• Weight: 52lb
• Brand: Milbank
• Category: NEMA TYPE 1 WIREWAY & FITTINGS
• Series: GSC1
• Standard Approval: UL 870, cUL|RoHS Compliant
