Product Description

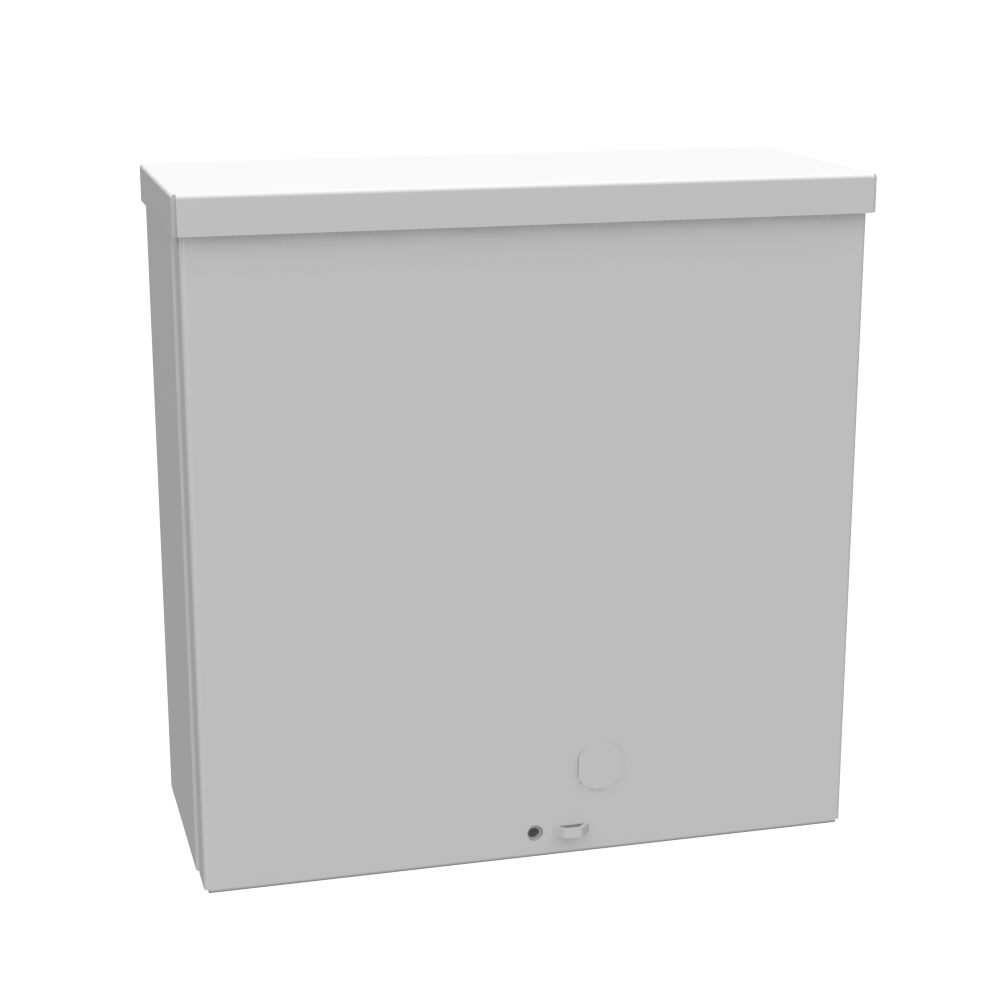

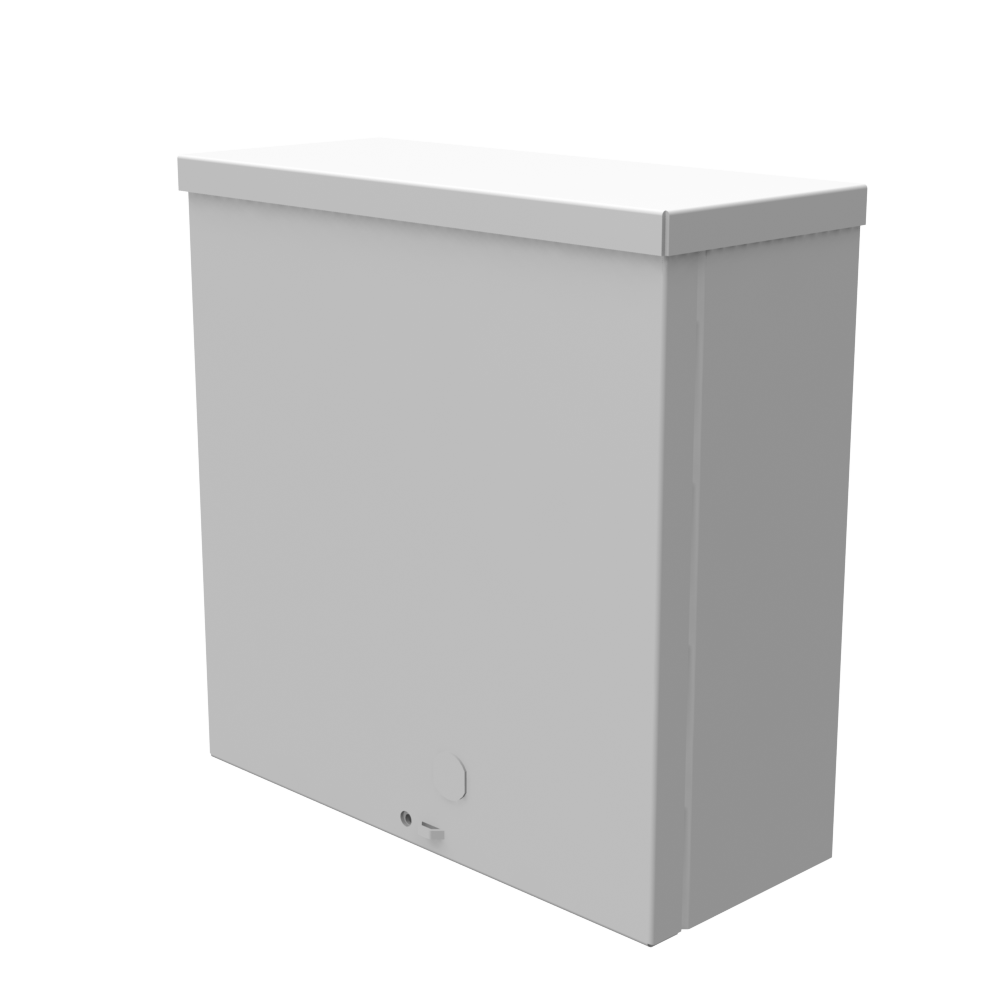

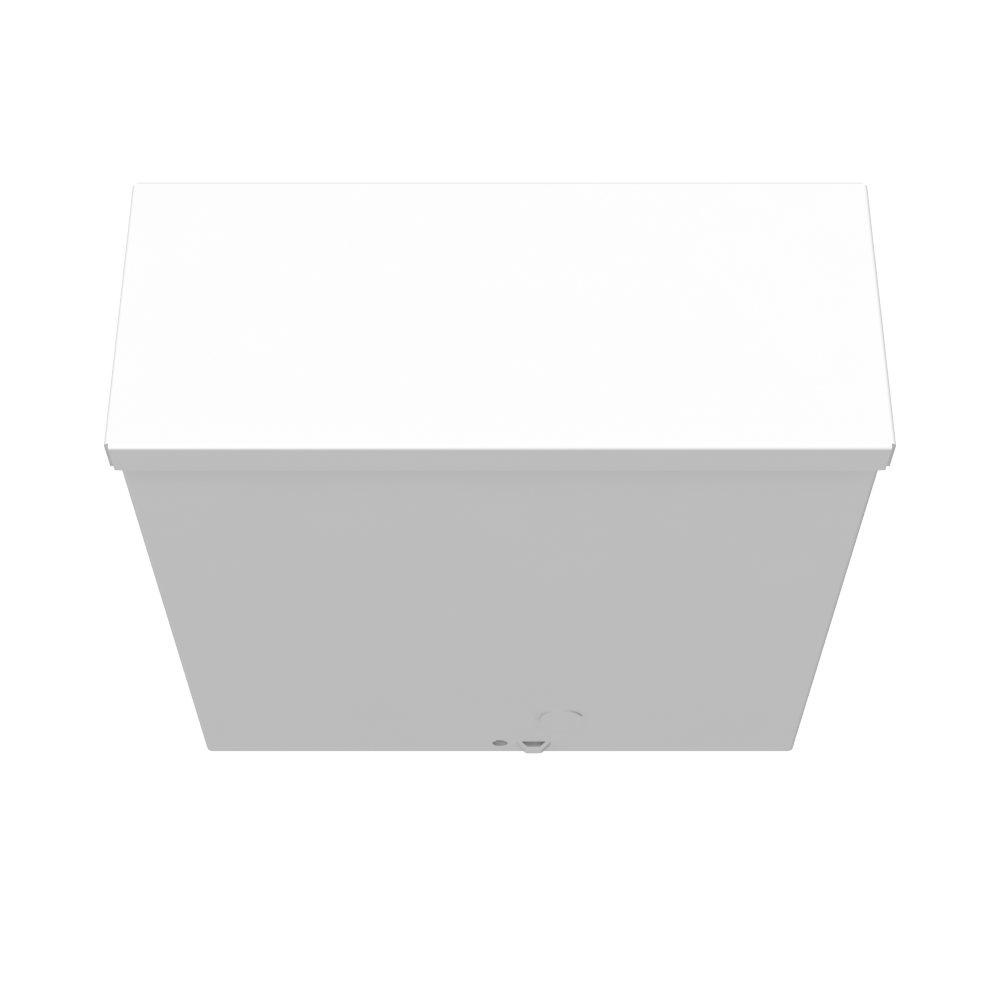

The Milbank 10104-SC3R screw cover junction box is suitable for outdoor use, providing protection against rain, sleet, or snow, and for indoor use where dripping water is a problem. Constructed from 16/14/12-gauge G90 steel with a galvanized, polyester powder-coated finish over a phosphatized surface. Engineered for use as a junction box or pull box.
- Cover designed to fit under the drip shield top and held in place with a plated steel screw.

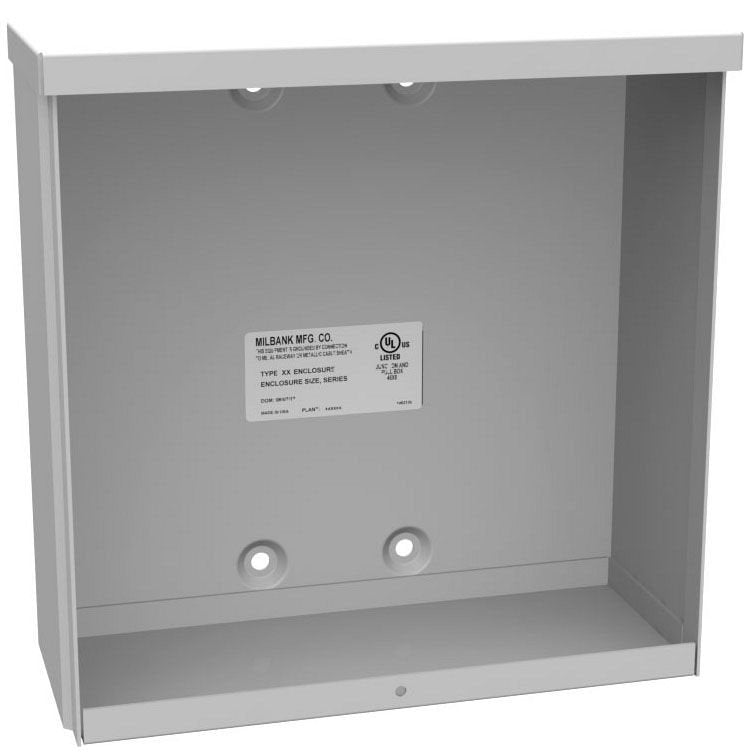

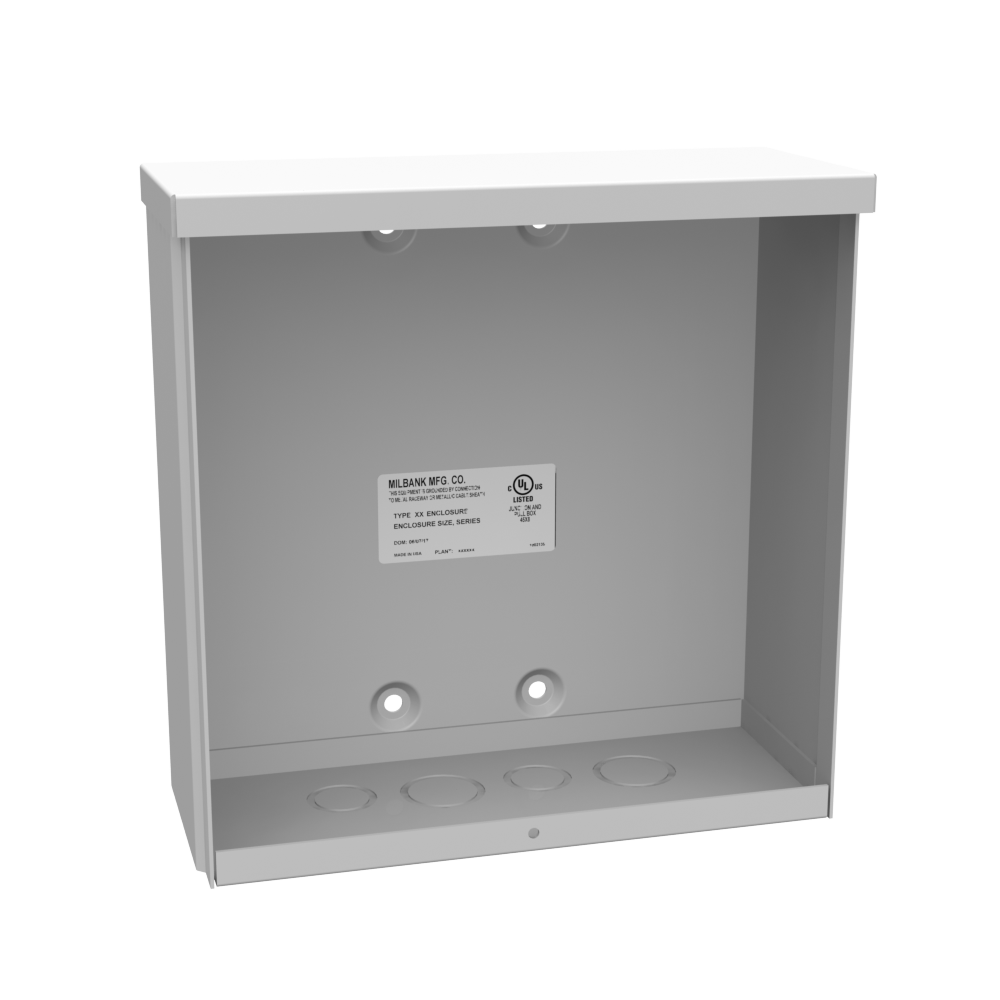

- Mounting embosses are provided on the back of each enclosure.
- Sealing provisions on the front cover.
Product Highlights
The Milbank screw cover junction box features a NEMA 3R rating and is UL/cUL listed. Ideal for mounting electrical equipment.
Product Information
Standard Information
-
Brand: MILBANK
-
Manufacturer Part Number: 10104-SC3R
-
Country of Origin: United States of America
Technical Specifications
-
Size: 10 Inch Width x 10 Inch Height
-
Type: Unflanged
-
GTIN: 00784572100190
-
UNSPSC: 39121332
-
RoHS Flag: Contact manufacturer
-
Country Of Origin: United States of America
-
Standards: UL 50 Listed, cUL Certified
-
Number of Knockouts: 5.0000
-
NEMA Rating: NEMA 3R
-
Mounting: Wall
-
Material: 16/14/12 Gauge G90 Steel
-
Item Name: Screw Cover Junction Box
-
Finish: Polyester Powder Coated Galvanized Over Phosphatized Surface
-
Depth: 4
-
Color: ANSI 61 Gray
-
Brand Name: Milbank
-
UPC: 78457210019
-
Manufacturer Name: Milbank
-
Manufacturer Part Number: 10104-SC3R
-
Energy Star Flag: No
-
Application: Enclosure for Mounting Electrical Equipment
-
Cable Entry: Knockouts
-
Construction: Welded
-
Door: Cover
-
Hinge Type: No Hinge
-
Knockouts: True
-
Latch: Cover Secured with Plated Screws
-
Number Of Outlet: 0
-
Standard: UL Listed
-
Top: Drip Shield Top
-
Height: 10.0 IN
-
Length: 4.0 IN
-
Width: 10.0 IN
-
Style: Compact
-
Product Dimensions: 4"D x 10"W x 4"H
-
Finish Type: Powder Coated
-
Installation Type: Screw-In
-
Specification Met: Nema 3r
-
Mounting Style: Screw
-
Model: 10104-SC3R
-
Room: Any Room
-
NEMA Enclosure Rating: Type 3R
-
Cover Type: Screw
