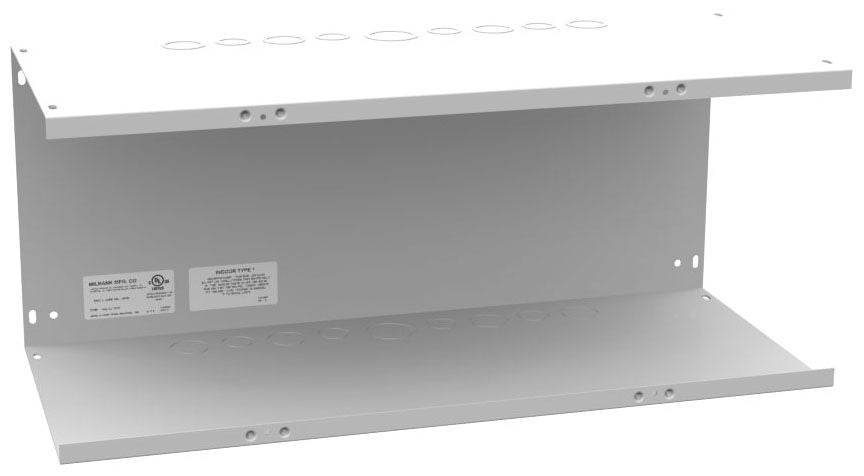

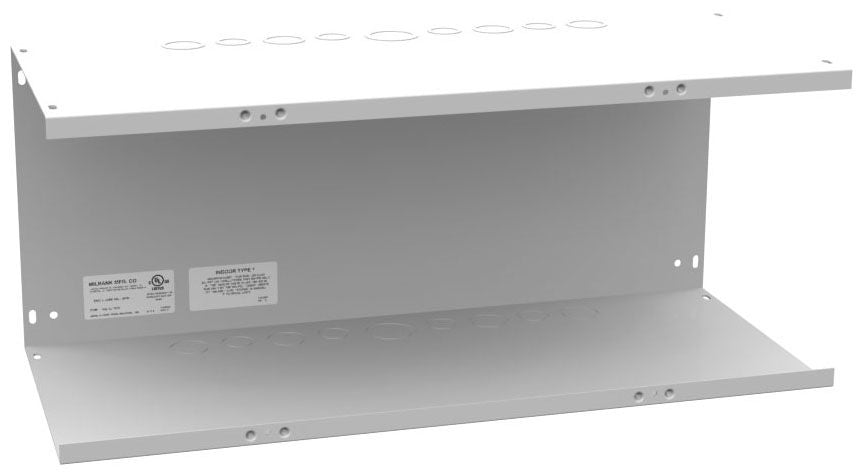

Milbank 101024-GSC1 Cable Trough 10x10 2 Ft

Product Description

The MILBANK 101024-GSC1 is a cable trough measuring 10 inches wide by 10 inches deep and 2 feet in length. Cable troughs are used to route, organize, and protect electrical conductors in panel, switchgear, and metering installations. This trough provides a dedicated pathway that keeps wiring separated from live components and allows for clean, code-compliant conductor management. At 17 pounds, it is a substantial steel enclosure suited for permanent installation. Electricians and electrical contractors working on commercial metering centers, load centers, or service equipment are the primary installers of this component.

This cable trough is designed for use in electrical distribution assemblies where organized conductor routing is required. Typical applications include metering centers, meter socket clusters, and service entrance equipment where multiple branch or feeder conductors must be directed between sections. The 10-inch by 10-inch cross-section accommodates a significant volume of conductors, making it appropriate for larger commercial or light industrial service installations where conductor fill and organization are critical to inspection approval and long-term serviceability.

Key Features

• 10 inches wide by 10 inches deep interior cross-section for high conductor fill capacity
• 2-foot length fits standard panel and metering center bay spacing
• Weighs 17 pounds, indicating heavy-gauge construction for durability
• Designed for organized, code-compliant conductor management in service equipment

Compatibility

Designed as an OEM-style cable trough for use with MILBANK metering centers and electrical distribution equipment requiring a 10-inch by 10-inch trough section.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 376 governing metal wireways and troughs. De-energize all associated service equipment and verify the absence of voltage before mounting or routing conductors through the trough. Secure the trough per manufacturer mounting provisions and ensure all conductor fill does not exceed NEC-permitted fill ratios for the trough cross-section. Inspect all knockout and entry points for sharp edges before pulling conductors.

Technical Specifications

• Width: 10 inches
• Depth: 10 inches
• Length: 2 feet
• Weight: 17 pounds
• UPC: 00078457210

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 101024-GSC1
