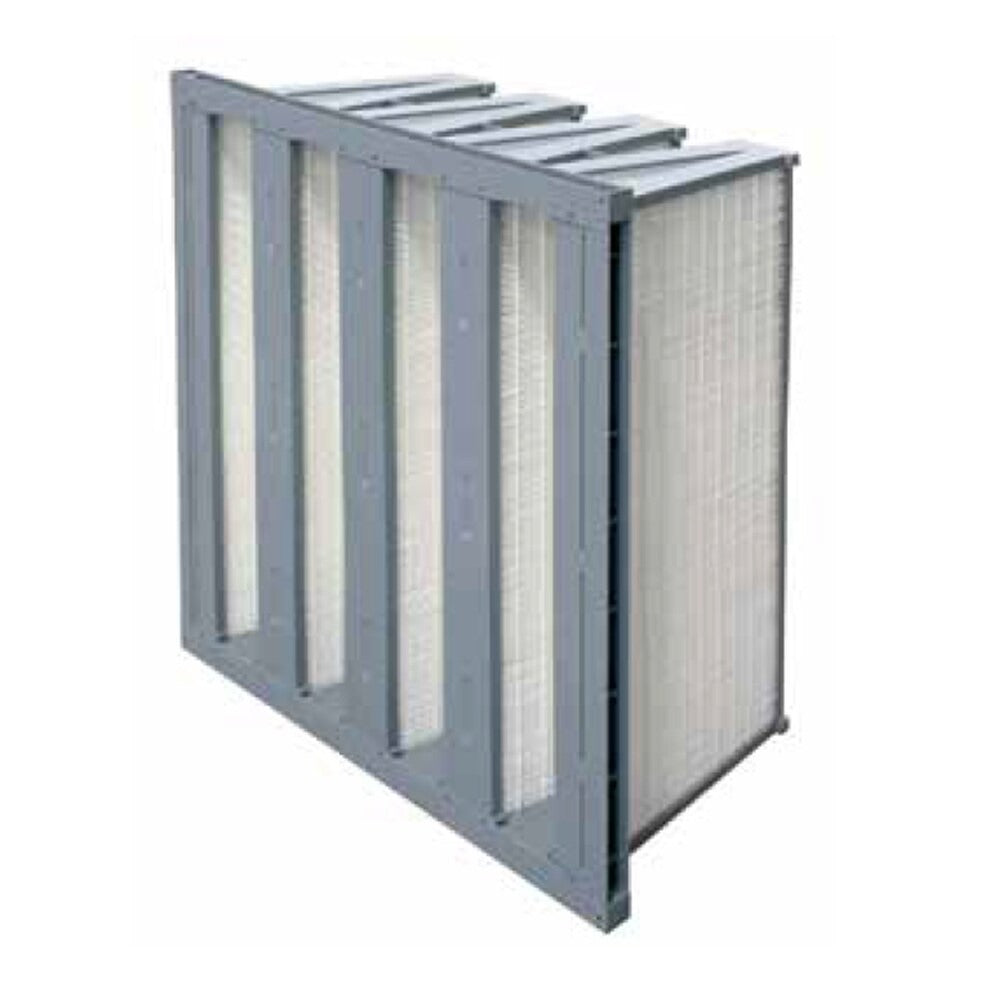

Mikropor MV-F8-03 Fine Filter Iso Epm1 65% 3400 M3/h

Product Description

The MIKROPOR MV-F8-03 is an F8-class fine filter from the MV Series, rated at ISO ePM1 65% efficiency. It is designed for commercial and industrial air handling units where particulate control at the fine filtration stage is required. With a media area of 18 square meters and an airflow capacity of 3400 cubic meters per hour, this filter delivers high-performance filtration within a standard 592 x 592 millimeter frame footprint. The initial pressure drop is rated at 92 Pascals. HVAC technicians and mechanical contractors install this filter as part of multi-stage air filtration systems in commercial buildings, cleanrooms, hospitals, and similar applications requiring sub-micron particulate control.

The MV-F8-03 fits into air handling units requiring a 592 x 592 millimeter filter bay with a 292 millimeter depth. Its F8 efficiency rating and ISO ePM1 65% classification make it suitable for applications where fine dust, combustion particles, and fine aerosols must be captured before supply air reaches occupied spaces or sensitive equipment. The MV Series design is appropriate for centralized HVAC systems in commercial, institutional, and light industrial settings.

Key Features

• F8 efficiency class with ISO ePM1 65% classification for fine particulate capture
• 18 square meter media area supports high airflow with manageable pressure drop
• Rated airflow of 3400 cubic meters per hour
• Initial pressure drop of 92 Pascals
• Standard 592 x 592 millimeter frame for common AHU filter banks
• 292 millimeter depth accommodates deep-pleat media configurations

Compatibility

Designed as an OEM-style replacement or direct fit for commercial air handling units accepting a 592 x 592 millimeter filter frame with a 292 millimeter depth at the fine filtration stage.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor familiar with commercial air handling system service. Power down and lock out the AHU before accessing the filter section. Verify airflow direction markings on the filter frame before seating the filter to ensure correct orientation. Follow applicable ASHRAE and local mechanical code requirements for filter replacement intervals and disposal of loaded filter media.

Technical Specifications

• Efficiency Class: F8
• ISO Classification: ISO ePM1 65%
• Airflow Capacity: 3400 cubic meters per hour
• Initial Pressure Drop: 92 Pascals
• Media Area: 18 square meters
• Width: 592 mm
• Length: 592 mm
• Depth: 292 mm
• Weight: 23.6 pounds
• Unit Quantity: 1 unit per order

Standard Information

• Brand: MIKROPOR
• Manufacturer Part Number: MV-F8-03
