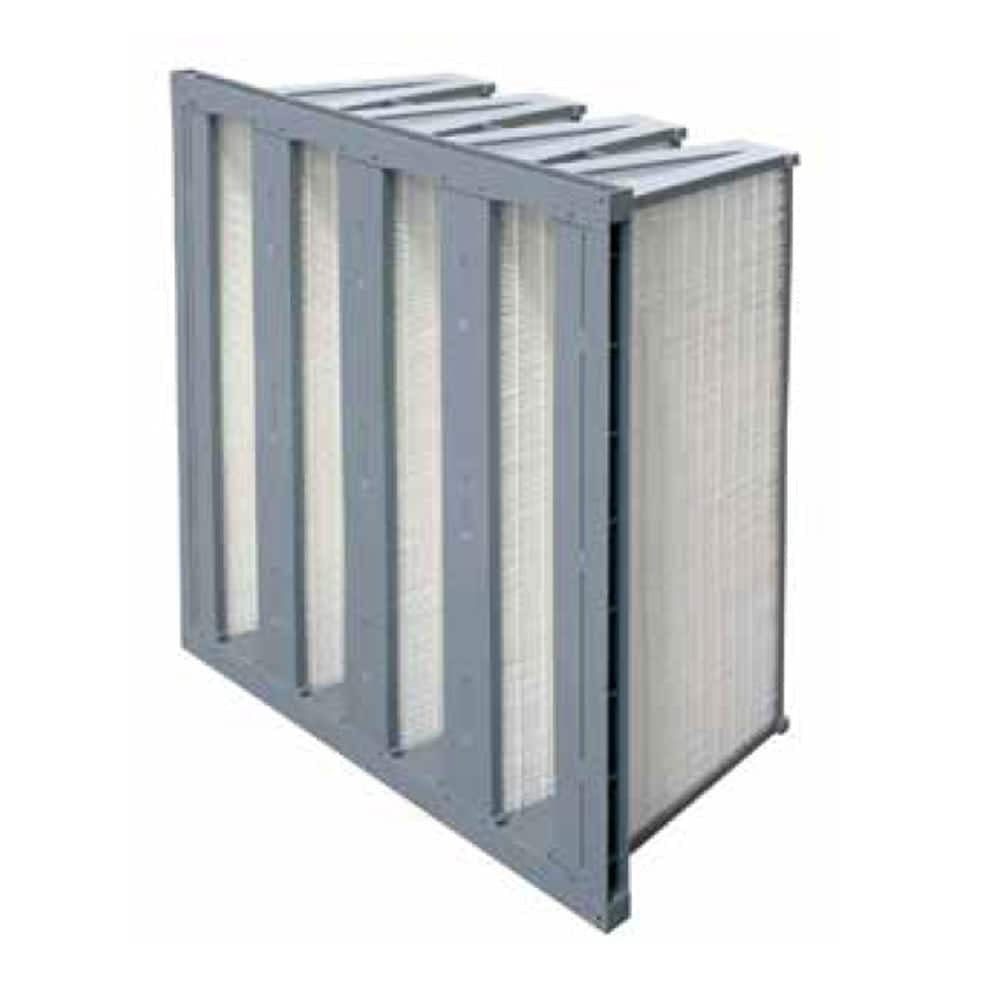

Mikropor MV-F8-02 Fine Filter F8 Iso Epm1 65%

Product Description

The MIKROPOR MV-F8-02 is an F8-rated fine filter from the MV Series, designed for commercial and industrial air handling applications where high-efficiency particulate filtration is required. Classified at ISO ePM1 65%, this filter captures fine particulate matter in the PM1 range, making it suitable for applications with demanding indoor air quality standards. The filter measures 592 mm wide by 492 mm long by 292 mm deep and carries a media area of 15 square meters. Rated for air flows up to 2800 cubic meters per hour with an initial pressure drop of 92 Pascals, the MV-F8-02 delivers reliable performance in high-volume air handling systems. Licensed HVAC technicians and building mechanical contractors handle installation of filters at this efficiency class.

The MV-F8-02 is intended for use in commercial and industrial air handling units (AHUs) and central ventilation systems where F8 or ISO ePM1 filtration is specified. Typical applications include office buildings, hospitals, cleanrooms, laboratories, and other facilities requiring fine particulate control. The 492 x 592 mm frame size (frame code 02) fits standard filter banks designed for that module dimension. This filter is not intended for residential duct systems or low-velocity applications outside its rated airflow range.

Key Features

• F8 efficiency rating with ISO ePM1 65% classification for fine particulate filtration
• Large 15 square meter media area supports high air volume with controlled pressure drop
• Rated airflow of 2800 cubic meters per hour suitable for commercial AHU applications
• Initial pressure drop of 92 Pascals at rated airflow
• 492 x 592 mm (frame code 02) standard module frame for AHU filter bank compatibility
• Depth of 292 mm accommodates deep-pocket filter housings in medium to large AHUs

Compatibility

Designed as an OEM-style replacement fine filter for commercial air handling units requiring an F8 ISO ePM1 65% rated module in a 492 x 592 mm frame configuration with a 292 mm depth pocket.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor in accordance with applicable local mechanical codes and the AHU manufacturer guidelines. Power down and lock out the air handling unit before removing the existing filter and installing the replacement. Verify airflow direction markings on the filter frame align with the system supply direction before seating the filter in the bank. Inspect the filter housing gasket or sealing surface for damage prior to installation to prevent bypass leakage around the filter media.

Technical Specifications

• Efficiency Rating: F8
• Filtration Class: ISO ePM1 65%
• Media Area: 15 square meters
• Rated Air Flow: 2800 cubic meters per hour
• Initial Pressure Drop: 92 Pascals
• Width: 592 mm (approximately 23.3 inches)
• Length: 492 mm (approximately 19.4 inches)
• Depth: 292 mm (approximately 11.5 inches)
• Frame Code: 02 (492 x 592 mm)
• Weight: 35.9 pounds
• Unit Quantity: 1 unit per order

Standard Information

• Brand: MIKROPOR
• Manufacturer Part Number: MV-F8-02
