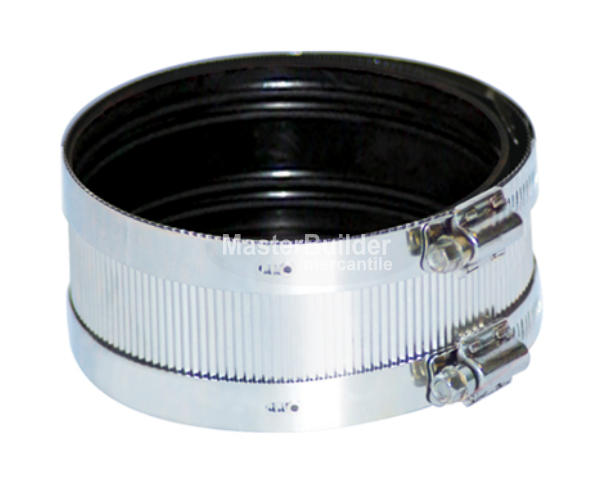

MIFAB MI-HUB-32 Regular Shielded No-Hub Coupling 3 x 2

Product Description

The MIFAB MI-HUB-32 is a no-hub coupling that connects cast iron pipe effectively. It is sized at three inches by two inches. This coupling securely seals between no-hub cast iron pipe installations and fittings. The gasket is made from an elastomeric compound, meeting ASTM C-564. It is protected by a corrugated shield made of Type 301 stainless steel.

• Features a stainless steel protective shield.
• Utilizes a mechanical interlocking clamp design.
• Employs a formed gasket design.

Product Highlights

This coupling is designed to provide a reliable and durable connection for plumbing systems.

Product Information

Standard Information

• Brand: MIFAB
• MPN: MI-HUB-32

Technical Specifications

• Gasket: Elastomeric compound meeting the requirements of ASTM C-564

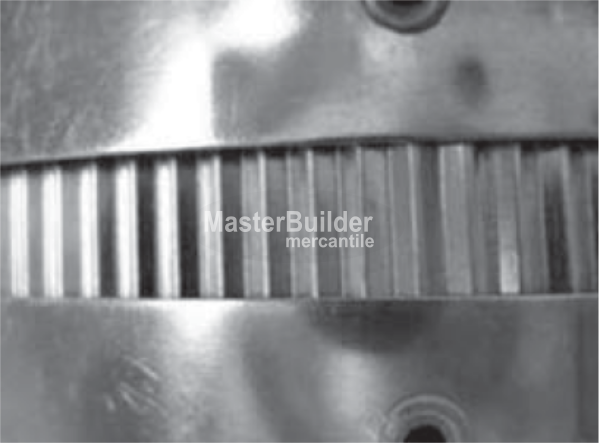

• Shield: Type 301 AISI stainless steel

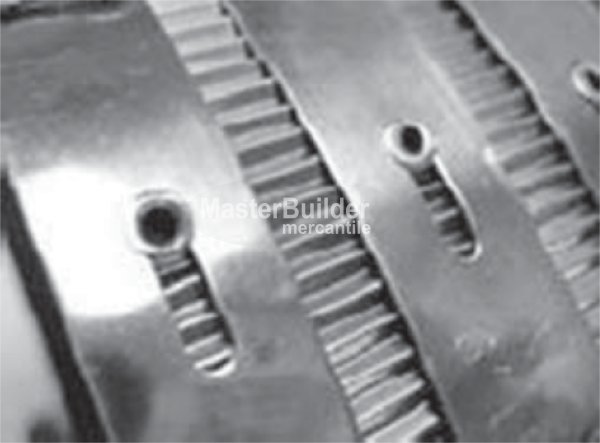

• Bands: Type 301 AISI stainless steel (Minimum tensile 165,000 psi)
• Eyelets: Type 301 AISI stainless steel

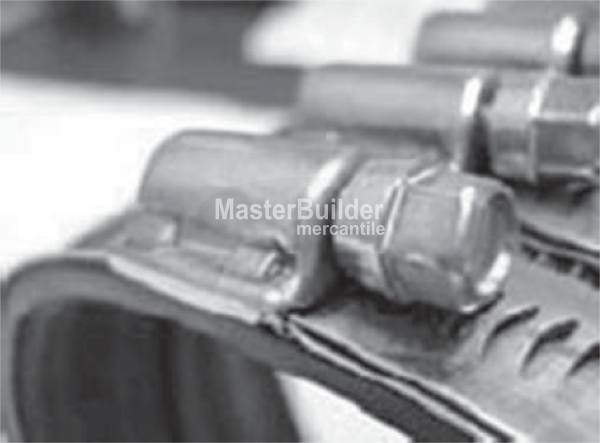

• Screw Housing: Type 304 AISI stainless steel

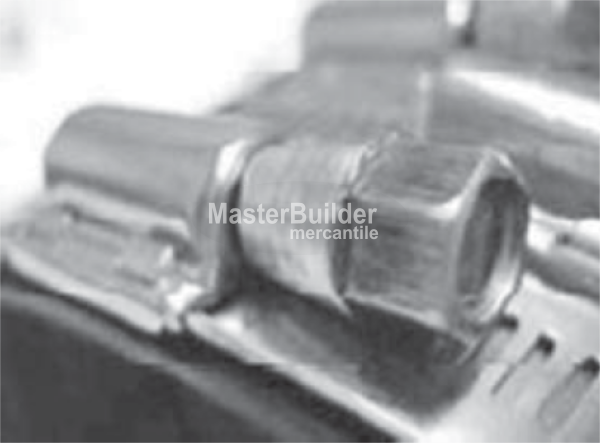

• Screws: Type 305 AISI stainless steel, five-sixteenths inch Hex head / Shoulder
• Performance Specifications: Tested to maintain 4.3 psi of water pressure (typical ten-foot head). Requires a five-sixteenths inch hex head driver to tighten bolts to sixty inch lbs. min/max torque.
• Certifications: ASTM-C1277-2009a, CISPI 310-2010, CSA B602-2010 (File # 247608), IAPMO listed, CAN/ULC S102.2-07
