Mifab MI-DU Trap Seal Primer Distribution Unit 5/8 Inch

Product Description

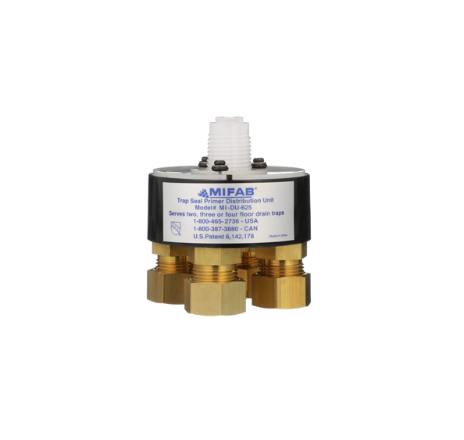

The MIFAB MI-DU trap seal primer distribution unit receives a metered amount of water from a trap seal primer, distributing it equally to two, three, or four floor drain traps. It features 5/8 Inch compression connections and a lid marked with numbers to adjust priming for the desired number of drains. The unit's design ensures uniform water distribution even when not perfectly level.

• With four brass compression outlet connections, ABS body and HDPE lid with top 1/2 Inch MIP connection, and (3) 1/8 Inch Dia Phillips head screws to secure the lid to the body
• Unit complete with four wall internal body design that aligns with the slots in the underside of the lid to distribute water evenly and to only the desired number of ports

Product Highlights

The MIFAB MI-DU is for use with floor drain traps. It has a 5/8 Inch compression connection.

Product Information

Standard Information

• Brand: MIFAB
• Manufacturer Part Number: MI-DU

Technical Specifications

• Series: MI-DU
• Suitable For Use With: Floor Drain Traps
• Specifications: 5/8 Inch Compression Connection
• Material: ABS/HDPE
