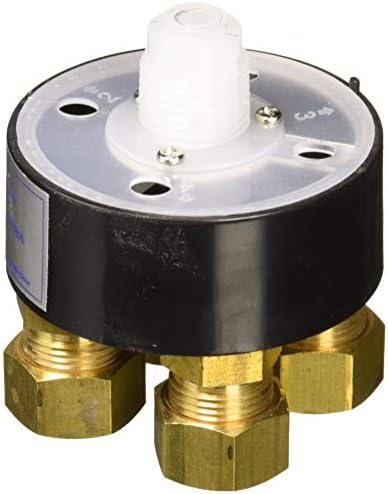

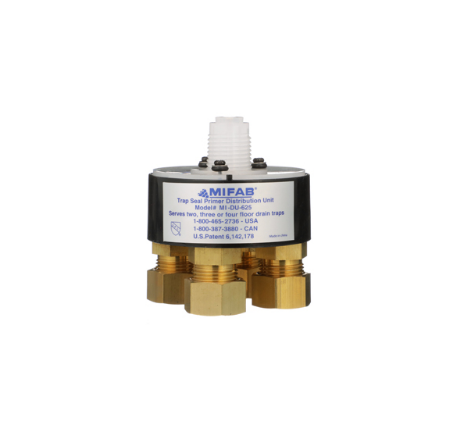

Mifab M1-DU-625 Mi-Du Distribution Unit 5/8 inches Connections

Product Description

The MIFAB MI-DU-625 trap seal primer distribution unit receives a metered amount of water from a trap seal primer. It distributes the water equally to either two, three, or four floor drain traps. The distribution unit has numbers marked on the lid and a guide marker on the body to adjust the priming for the desired number of drains.

• Engineered to distribute water equally to multiple floor drain traps
• Features numbers on the lid and a guide marker for easy adjustment
• Unique design distributes water uniformly even when out of level up to 5 degrees

Product Highlights

The MIFAB MI-DU-625 is designed for even water distribution to multiple floor drains from a single trap seal primer.

Product Information

Standard Information

• Brand: MIFAB
• Manufacturer Part Number: M1-DU-625
• Country of Origin: china

Technical Specifications

• Series: MI-DU
• SKU: MI-DU-500, MI-DU-625
• Function: Used underneath a pressure drop activated trap seal primer to distribute water to either two, three or four floor drain traps.
• Part Number: MI-DU-625
• Item model number: MI-DU-625
• Item Package Quantity: 1
• Measurement System: inch
• Suitable For Use With: Floor Drain Traps
• Specifications: 5/8 Inch Compression Connection
• Material: Cast Iron
• Finish: Antique Brass
• Brand: Mifab
• Valve Operation: Manual
• Connection: 5/8 in compression connection
• Standard Approvals: ASSE Specified, CSA Certified, IAPMO Listed, Mechanical Contractors Association of American, PDI Certified, UPC Listed, US Patent No 6142178
