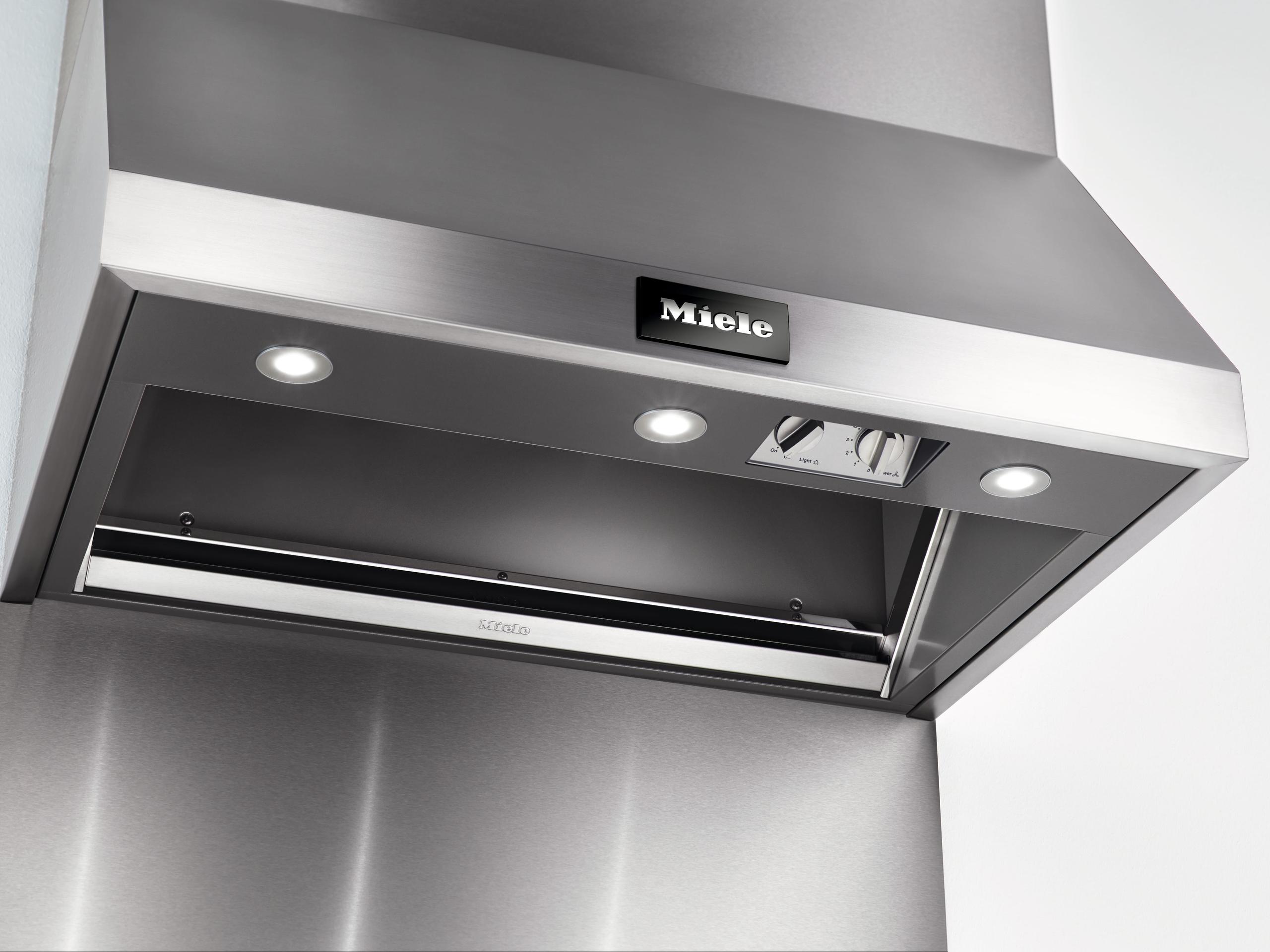

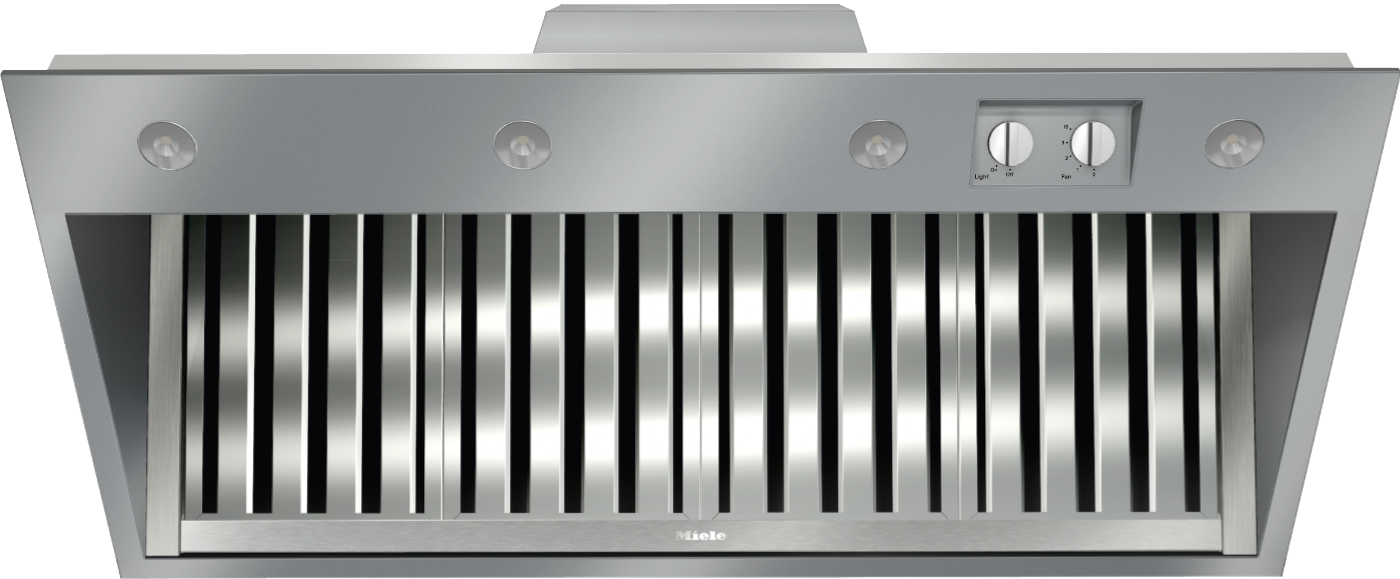

Miele 9753510 dar 1150 stainless steel 48-inch

Product Description

The MIELE 9753510 DAR 1150 is a 48-inch extractor unit designed for combination with ranges and rangetops. It features 3 power levels and can operate in recirculated or exhaust air mode. The unit includes dishwasher-safe stainless steel baffle filters and Miele CleanCover for easy cleaning. The auto-vent safety sensor protects against overheating.

• Fully integrated design at 45 1/2 (1155) in (mm)
• Features LED ClearView lighting
• Includes 4 dishwasher-safe stainless steel grease filters

Product Highlights

This Miele extractor unit offers a fully integrated design, LED lighting, and dishwasher-safe filters for ease of use and maintenance.

Product Information

Standard Information

• Brand: MIELE
• Manufacturer Part Number: 9753510

Technical Specifications

• Model number: DAR 1150
• Manufacturer material number: 09753510
• EAN number: 4002515446829
• Recirculated mode: Exhaust air, External operation possible
• Power levels (number excl. Intensive): 3
• Temperature sensor: Yes
• Number of dishwasher-safe stainless steel baffle filters: 4
• Number x W: 4 x 3 W
• DRIB XXL internal blower in CFM (m�_/h): 1869
• DREB XXL external blower in CFM (m�_/h): 1869
• Canopy width in inches: 47 15/16
• Canopy height in in.(mm): 17 3/4 (449)
• Canopy depth in in.(mm): 22 7/8 (579)
• Length of electrical wire in ft (m): 2 (0.8)
• Standard plug fitted: Yes
• Total connected load in kW: 0.812
• Voltage in V: 120
• Fuse rating in A: 15
• Number of phases: 1
• Plug type: NEMA plug: 5-15
• Diameter of vent connection in in.(mm): 9 7/8 (250)
• Construction: Chimney: Fixed
• Display: Controls: Mechanical
• Filter Type: Stainless Steel Baffle Filters
• Cleanability: Dishwasher Safe
• Air Mover(s) Speed: 4
• Width (in.): 45.50
• Height (in.): 17.69
• Duct Size (in.): 10
• Depth (in.): 22.81
• MPN: 9753510
• Range Hood Type: Wall Mounted
• Appliance Fit Width (in.): 48
• Maximum CFM: 1100
• Voltage: 120
• Frequency: 60
• Ventilation Type: Ductless
• Operating modes: Recirculated mode, Exhaust air, External operation possible
• User convenience: Rotary knob
• Cleaning convenience: Easy to clean canopy interior CleanCover, Dishwasher-safe grease collection channel
• Filter system: Number of dishwasher-safe stainless steel baffle filters
• Lighting: LED
• Installation note: Vent connection at top
• Standard accessories: Non-return flap
