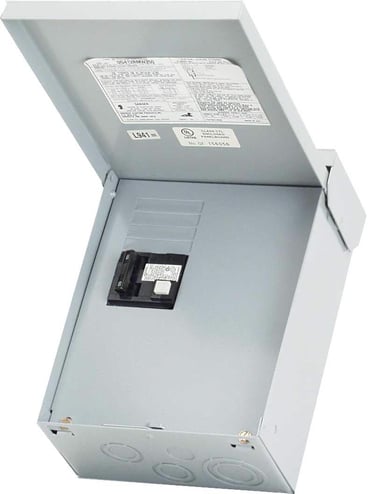

Midwest UG412RMW260 GFI Disconnect Spa Panel 120/240 VAC 60 A 2 Poles

Product Description

The MIDWEST TOOL & CUTLERY UG412RMW260 GFI Disconnect Spa Panel provides a low-cost solution for NEC requirements for spas, hot tubs, water heaters, and swimming pools. The NEMA 3R design ensures weather-tight installation for residential, light commercial, and some industrial applications. It has a short circuit rating of 10 kA.

• All terminals accept copper or aluminum wire for added installation flexibility
• Rated NEMA 3R - outdoor weatherproof equipment
• Includes over current protection as well as GFI protection

Product Highlights

This GFI Disconnect Spa Panel features a NEMA 3R enclosure, padlock provision, and additional breaker spaces. It is suitable for service equipment and is ARRA and RoHS compliant.

Product Information

Standard Information

• Brand: MIDWEST TOOL & CUTLERY
• Manufacturer Part Number: UG412RMW260

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240V
• Cable Entry: Knockout Code (A): 1/2 IN; Knockout Code (C): 1/2, 3/4, 1 IN; Knockout Code (E): 3/4, 1-1/4, 1-1/2 IN
• Catalog Description (MFR): GFI disconnects provide a convenient, low-cost means to satisfy NEC requirements for spas, hot tubs, water heaters, and swimming pools. The NEMA 3R design insures a safe, weather-tight installation for residential, light commercial, and even some industrial applications.
• Dimensions: 10 IN H x 7-1/2 IN W x 4 IN D
• Enclosure: NEMA 3R
• Enclosure Material: G90 Galvanized Steel
• Enclosure Type: NEMA 3R
• Finish: Powder Coated
• Material: Steel
• Mounting Type: Surface
• Number Of Poles: 2 Pole
• Phase: 1 Phase
• Product Name: GFI Disconnect Spa Panel
• Short Circuit Rating: 10 kA
• Special Features: Gray color All terminals accept copper or aluminum wire for added installation flexibility Rated NEMA 3R - outdoor weatherproof equipment Door has padlock provision to prevent unauthorized access Includes over current protection as well as GFI protection Additional circuit breaker spaces available in each model Hub provision 2P 60 AMP GFI installed breaker 125 AMP rated with 2 additional breaker spaces load center Suitable for service equipment Lug wire size: 6 - 2/0 AWG 2P 60A GFI receptacle
• Standard: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cUL/UL Listed
• Type: GFI Disconnect Spa Panel
• Wire Size: 6 to 2/0 AWG Lug
