Midwest UG412RMW250 GFI Disconnect Spa Panel, 120/240 VAC, 50 A, 2 Poles

Product Description

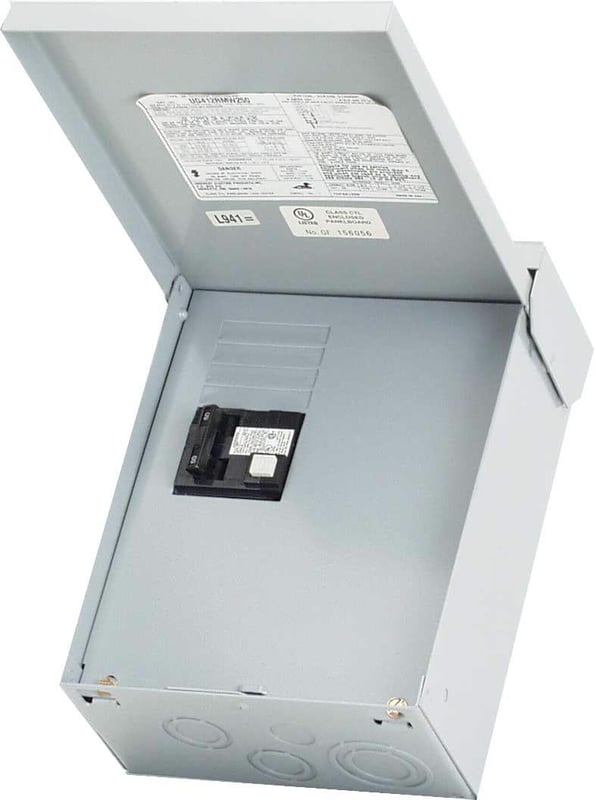

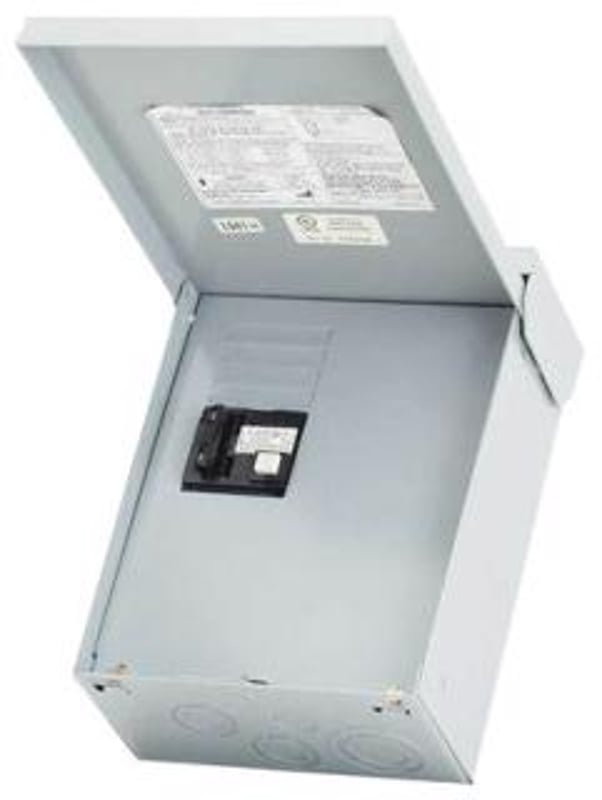

The Midwest UG412RMW250 GFI Disconnect Spa Panel meets the NEC requirements for safekeeping electrical connections related to spas, hot tubs, water heaters, and swimming pools. This panel features a NEMA 3R design ensuring weather-tight installation suitable for residential and light commercial use.

• Rated for 125 Amps with 120/240 Volts.
• Includes a 50 Amp GFCI installed breaker and additional circuit breaker spaces.
• Surface mounting with gray G90 galvanized steel enclosure.

Product Highlights

The Midwest UG412RMW250 is designed for safe electrical disconnections at spa and hot tub installations with the convenience of added circuit protection.

Product Information

Standard Information

• Type: GFI Disconnect Spa Panel
• Standard: UL/cUL Listed

Technical Specifications

• Voltage Rating: 120/240V
• Current Rating: 125 A
• Phase: 1 Phase
• Wire Size: 6 to 2/0 AWG (Copper/Aluminum)
• Cutout Size: 7 X 10
• Enclosure: NEMA 3R
• Mounting: Surface
• Cable Entry: Knockouts for various sizes
