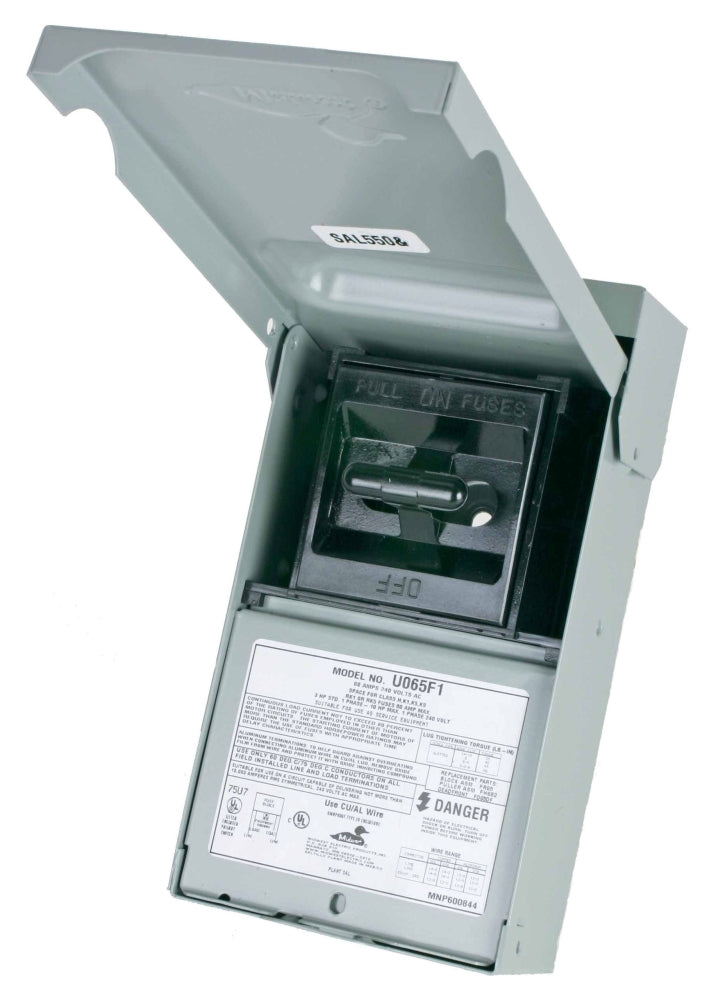

MIDWEST U065F1 60A 1PH FUSIBLE

Product Description

The MIDWEST U065F1 is an air conditioner disconnect switch designed for reliable performance. This device operates with a voltage rating of 120/240 Volt AC and has a current rating of sixty amps. It is suitable for one-phase systems and supports a power rating of ten horsepower. The enclosure is crafted from G90 galvanized steel, ensuring durability in various environments.

• Voltage Rating: 120/240 Volt AC
• Current Rating: 60 Amps
• Fusible Protection: Equipped with a fuse provision

Product Highlights

This disconnect switch is a critical component in HVAC systems, providing safe isolation of air conditioning units during maintenance and repair.

Product Information

Standard Information

• Brand: MIDWEST TOOL & CUTLERY
• UPC: 78456730005

Technical Specifications

• Enclosure Type: NEMA 3R
• Wire Size: 14 to 8 AWG for line/load; 12 to 8 AWG for equipment ground
• Dimensions: 5 inches width x 2 and 3/4 inches depth x 9 inches height
• Approval: UL listed for Canada and the US
• Interrupt Rating: 10000 Amp
