Midwest Tool U075CTL010 MW 100A Surf 50/30/20GFCI Twin Lugs

Product Description

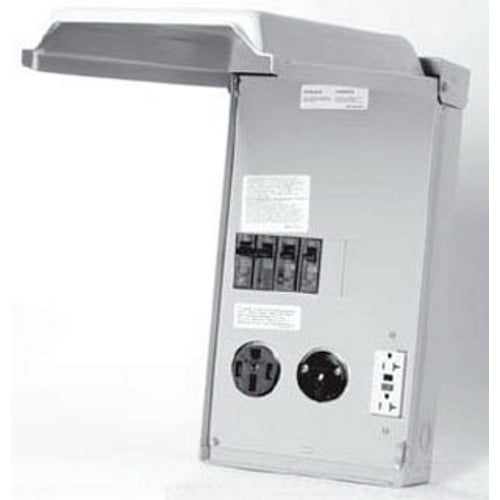

The MIDWEST TOOL U075CTL010 is a recreational vehicle equipment power outlet with a current rating of 100 Ampere. This unmetered power outlet features a 1-Phase circuit configuration and twin lugs. Constructed from G90 galvanized steel with a zinc-coated finish and NEMA 3R enclosure, it is designed for surface mounting. It adheres to NEMA and NEC standards and is UL and CUL approved.

• Recreational Vehicle Equipment Power Outlet
• Unmetered with a 100 Ampere current rating
• NEMA 3R enclosure for outdoor use

Product Highlights

This power outlet is ideal for recreational vehicles, providing a reliable and safe power source in outdoor settings. Its robust construction ensures lasting performance.

Product Information

Standard Information

• Brand: MIDWEST TOOL
• Manufacturer Part Number: U075CTL010
• Country of Origin: UKN

Technical Specifications

• Type: Unmetered Power Outlet
• Current Rating: 100 Amp
• Circuit Configuration: 1-Phase

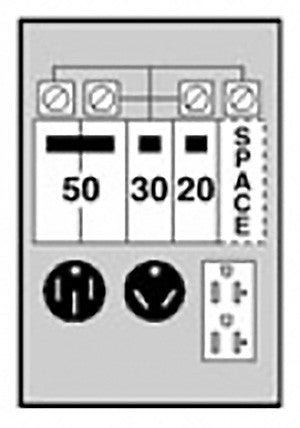

• Left Position Receptacle Type: BR54U
• Center Position Receptacle Type: R32U
• Right Position Receptacle Type: 5-20R2GFCI
• First Position Circuit Breaker Type: CB250
• Second Position Circuit Breaker Type: CB130
• Third Position Circuit Breaker Type: CB120
• Wire Size: 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground)
• Material: G90 Galvanized Steel
• Finish: Zinc Coated
• Enclosure: NEMA 3R
• Approval: UL, CUL
• Applicable Standard: NEMA, NEC
• Voltage Rating: 120/240 V
• Mounting Type: Surface
• Amperage Rating: 100 A
• Phase: 1
• Cable Entry: Knockout Code (B): 1, 1-1/4, 1-1/2 IN; Knockout Code (D): 3/4, 1, 1-1/4 IN; Knockout Code (G): 1/2, 3/4, 1 IN
• Feed Type: Overhead
