MIDWEST TOOL U075CP6010 Unmetered Power Outlet Pedestal

Product Description

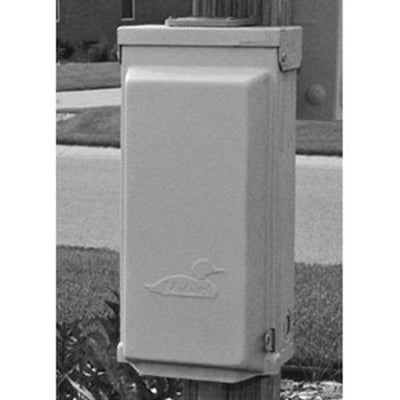

The MIDWEST TOOL U075CP6010 is an unmetered power outlet pedestal suitable for outdoor applications. Made from sixteen-gauge galvanized zinc-coated steel, this unit features a NEMA 3R enclosure that protects against corrosion and fading. It operates at 120/240 VAC and 100 Amps, single phase. This pedestal incorporates a 50/30/20 GFCI receptacle and comes with CB130/CB120/CB250/GFI120 circuit breakers. It is designed for both underground feed and surface mounting.

• Equipped with a 50/30/20 GFCI receptacle.
• Features a NEMA 3R enclosure for outdoor durability.
• Constructed with corrosion-resistant materials.

Product Highlights

This power outlet pedestal is ideal for construction sites, outdoor events, and other locations requiring reliable power access.

Product Information

Standard Information

• Brand: MIDWEST TOOL
• Manufacturer: ABB - Midwest Electric

Technical Specifications

• MPN: U075CP6010
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Enclosure Type: NEMA 3R
• Wire Size: 1 AWG to 300 kcmil

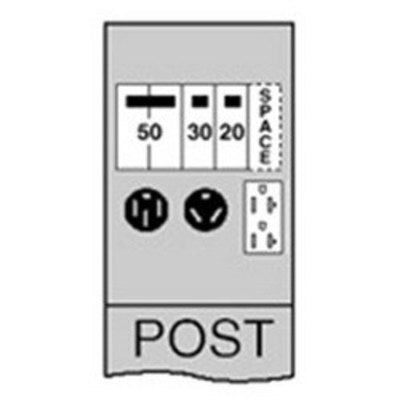

• Receptacle Type: 50/30/20 GFCI
• Circuit Breaker Type: CB130/CB120/CB250/GFI120
• Feed Type: Underground
• Short Circuit Current Rating: 10 kA
• Material: Steel
• Mounting Type: Surface
• Standard: UL/CUL Listed
• Height: Six point five inches
• Length: Sixty five inches
• Width: Nine point seven five inches
