Midwest Tool U065NA1 AC Disconnect Switch 60 A 120/240 VAC 10 hp

Product Description

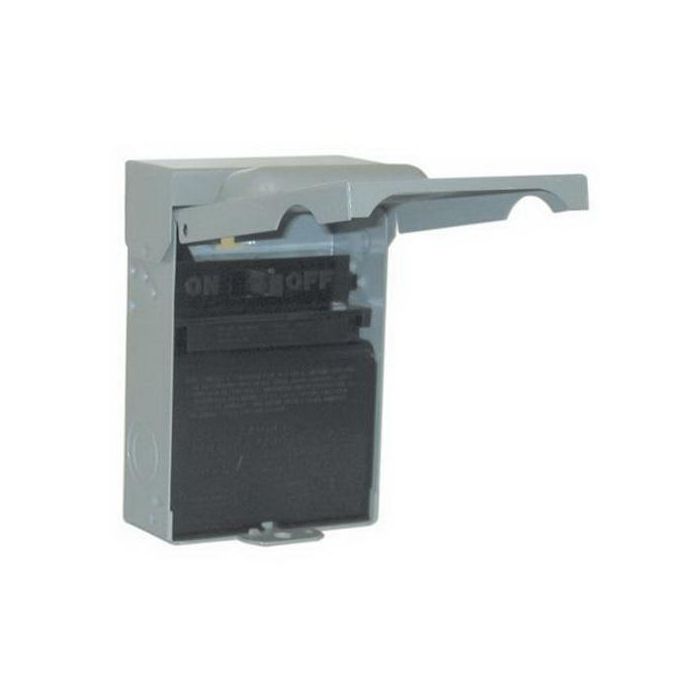

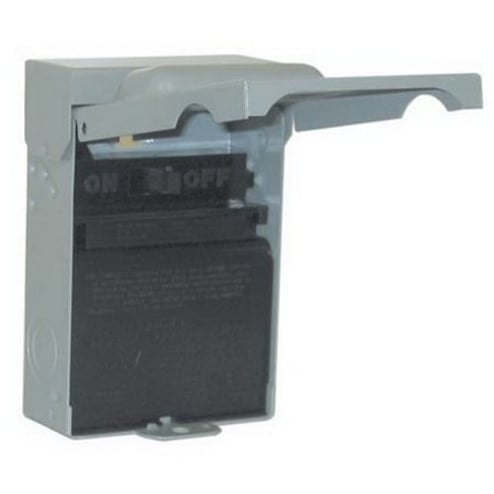

The Midwest Tool U065NA1 is a fused, non-automatic AC disconnect switch suitable for surface mounting. The unit is enclosed in a NEMA 3R housing, ensuring protection from the elements. The switch is made from steel with a galvanized and powder-coated finish, making it durable for various environments.

• Fused non-automatic switch
• NEMA 3R enclosure provides weather protection
• Designed for surface mounting

Product Highlights

This switch is ideal for residential and light commercial applications where outdoor installation is essential.

Product Information

Standard Information

• Brand: Midwest
• MPN: U065NA1

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Horsepower: 10 hp
• Number of Poles: 2
• Phase: 1
• Short Circuit Current Rating: 10 kA
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Dimensions: 7 inches H x 5 inches W x 2-1/8 inches D
• Material: Steel
• Finish: Galvanized/Powder Coated
• Type: Fused Non-Automatic
• Standard: UL/CUL listed
