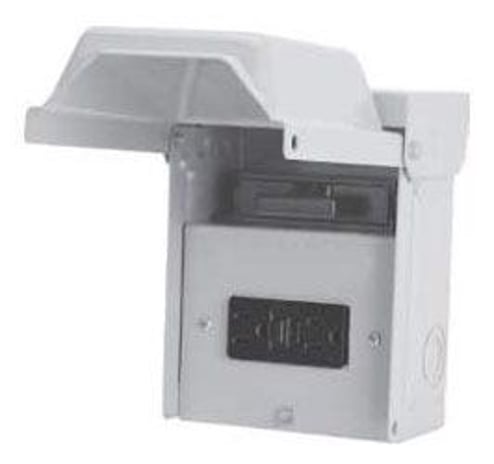

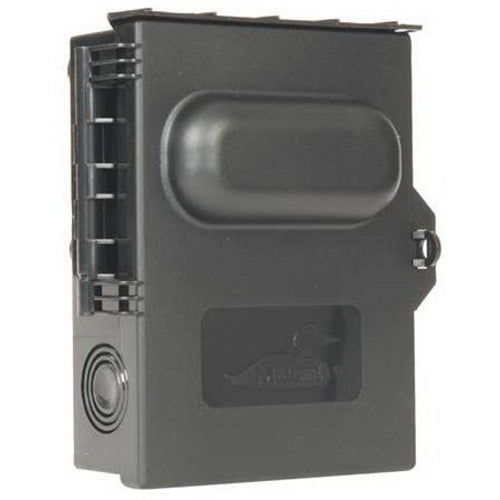

MIDWEST TOOL P065P1 Non-Fused AC Disconnect 60A 2 Pole NEMA 3R

Product Description

The MIDWEST TOOL P065P1 is a thirty amp non-fusible AC disconnect switch. This two-pole switch operates at one hundred twenty to two hundred forty volts AC, supporting equipment up to ten horsepower. It is designed for surface mounting and has a NEMA 3R enclosure made of Noryl thermoplastic.

• Non-fused pull-out design enables fast disconnection of power.
• Corrosion-resistant enclosure provides durability and reliability.
• Pullers can be removed or installed in the OFF position for maintenance safety.

Product Highlights

This AC disconnect switch is perfect for air conditioning units and other equipment that requires reliable disconnection and safety during maintenance.

Product Information

Standard Information

• Brand: MIDWEST
• Type: Non-Fused Pull-Out AC Disconnect Switch

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Horsepower: 10 hp
• Number of Poles: 2
• Enclosure Type: NEMA 3R
• Enclosure Material: Plastic
• Mounting Type: Surface
• Interrupt Rating: 10000
• Wire Size Compatibility: 14 to 8 AWG Solid, 14 to 3 AWG Stranded (Copper), 12 to 8 AWG Solid, 12 to 3 AWG Stranded (Aluminum)
• Dimensions: 7 inches H x 5 inches W x 2-1/8 inches D
