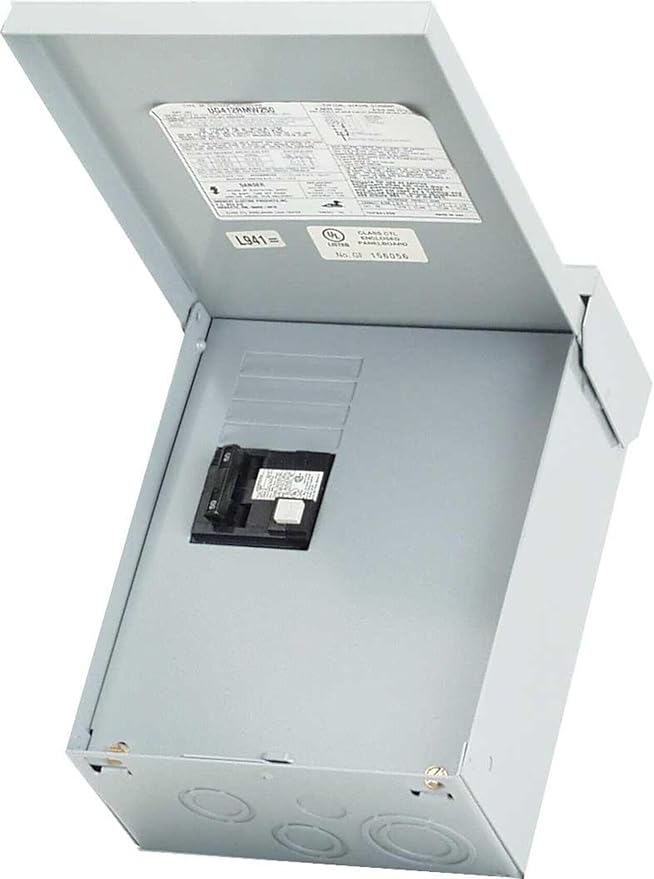

Midwest Tool & Cutlery UG412RMW250 GFI Disconnect Spa Panel 120/240 VAC 50 A

Product Description

The MIDWEST TOOL & CUTLERY UG412RMW250 GFI disconnect spa panel provides a convenient, low-cost solution for NEC requirements for spas, hot tubs, water heaters, and swimming pools. The NEMA 3R design ensures a safe, weather-tight installation for residential, light commercial, and some industrial applications. It is rated for 125 A with a short circuit rating of 10 kA.

• Accepts copper or aluminum wire for added installation flexibility
• Rated NEMA 3R for outdoor weatherproof use
• Includes over current protection and GFI protection

Product Highlights

This GFI disconnect spa panel is suitable for service equipment and includes a door with padlock provision to prevent unauthorized access.

Product Information

Standard Information

• Brand: MIDWEST TOOL & CUTLERY
• Manufacturer Part Number: UG412RMW250

Technical Specifications

• Brand Name: Midwest
• Cable Entry: Knockout Code (A): 1/2 IN; Knockout Code (C): 1/2, 3/4, 1 IN; Knockout Code (E): 3/4, 1-1/4, 1-1/2 IN
• Current Rating: 125 A
• Enclosure: NEMA 3R
• Enclosure Material: G90 Galvanized Steel
• Enclosure Type: NEMA 3R
• Finish: Powder Coated
• Material: Steel
• Mounting: Surface
• Mounting Type: Surface
• Phase: 1
• Product Name: GFI Disconnect
• Short Circuit Rating: 10 kA
• Special Features: Gray color All terminals accept copper or aluminum wire for added installation flexibility Rated NEMA 3R - outdoor weatherproof equipment Door has padlock provision to prevent unauthorized access Includes over current protection as well as GFI protection Additional circuit breaker spaces available in each model Hub provision 2P 50 AMP GFI installed breaker 125 AMP rated with 2 additional breaker spaces load center Suitable for service equipment Lug wire size: 6 - 2/0 AWG 2P 60A GFI receptacle
• Standard: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cUL/UL Listed
• Stripped Catalog Number: UG412RMW250
• Type: GFI Disconnect Spa Panel
• Voltage Rating: 120/240V
• Wire Size: 6 to 2/0 AWG (Copper/Aluminum)
• American Recovery and Reinvestment Act (ARRA) Compliant: C
• Buy American Act (BAA) Compliant: C
• Manufacturer: Midwest
• Part Number: UG412RMW250
