Midwest Tool & Cutlery U065P AC Disconnect Switch 60 Amp 240V Non-Fused

Product Description

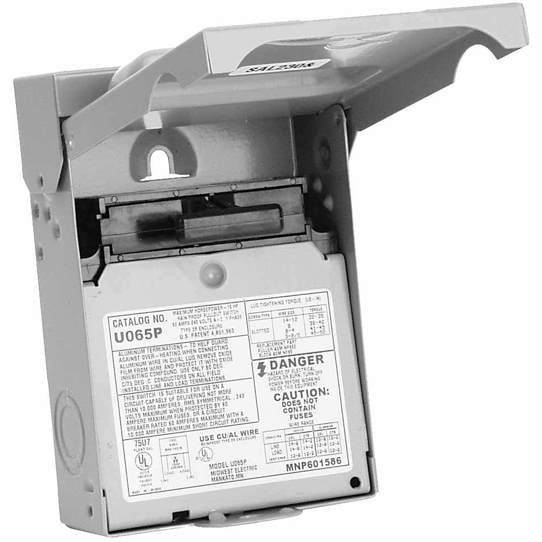

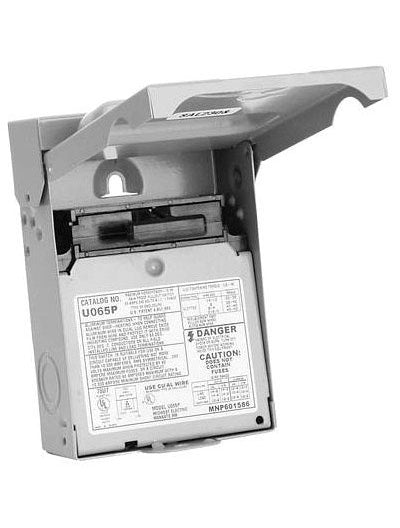

The MIDWEST TOOL & CUTLERY U065P is a 60 Amp, 240V AC disconnect switch. This non-fusible, pull-out type switch is designed for air conditioner applications and features a NEMA 3R steel enclosure. It has a power rating of 10 HP and an interrupting rating of 10 Kiloamp. The pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance.

• Metallic enclosure
• Non-fusible disconnect
• Pullers are removable or reinstallable in the OFF position

Product Highlights

Metallic, Non-fusible disconnect pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance.

Product Information

Standard Information

• Brand: MIDWEST TOOL & CUTLERY
• Manufacturer Part Number: U065P
• Country of Origin: Unknown

Technical Specifications

• Type: Air Conditioner Disconnect Pull-Out
• Voltage Rating: 120/240 Volt AC 1-Phase
• Current Rating: 60 Ampere
• Power Rating: 10 HP
• Fuse Provision: Non-Fusible
• Enclosure: NEMA 3R
• Enclosure Material: Steel
• Size: 5 Inch Width x 2-1/8 Inch Depth x 7-1/4 Inch Height
• Approval: UL, CUL
• Interrupting Rating: 10 Kiloamp
• Catalog Number: U065P
• Manufacturer: ABB - Midwest Electric
• Brand: Midwest
• Amperage Rating: 60
• Special Features: Metallic, Non-fusible disconnect pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance.
• Commodity Level Descrip: Non-Fusible Disconnect Safety Switches
• UPC: 784567300031
• UNSPSC: 39122205
• Commodity Code: Non-Fusible Disconnect Safety Switches
• Additional Info: Applicable Standard NEC 440-14; Cabinet Size 5 Inch x 7 Inch
• Wire Size: 14 to 8 AWG Solid, 14 to 3 AWG Stranded (Copper), 12 to 8 AWG Solid, 12 to 3 AWG Stranded (Aluminum)
