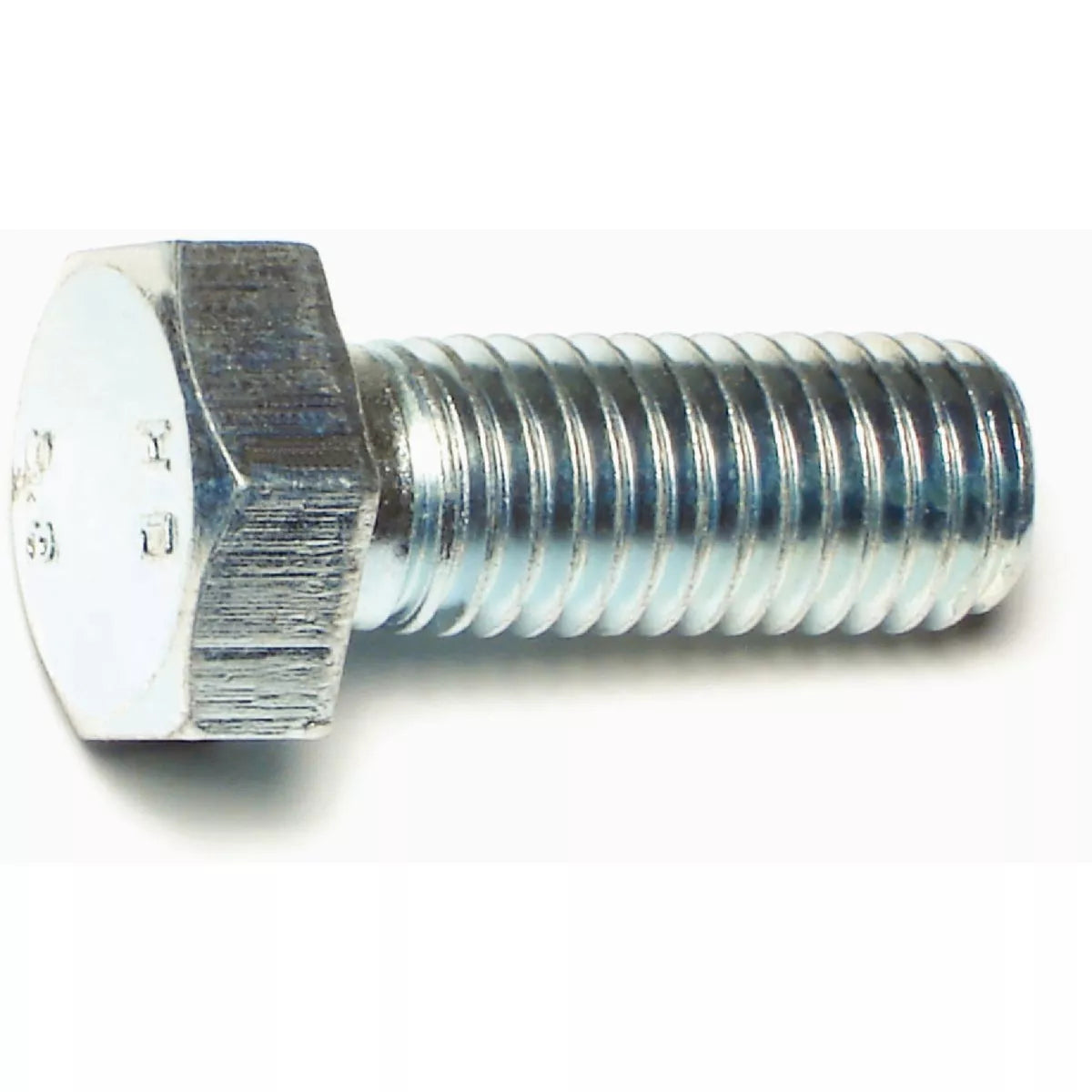

Midwest Fastener 50478 Hex Cap Screw, M12-1.75 Thread, 30 mm OAL, 8.8 Grade

Product Description

The Midwest Fastener 50478 hex cap screw features a metric measuring system, and is made of steel with an 8.8 grade and zinc finish. This screw has a coarse thread type with a thread size of M12-1.75 and a hex size of 18 mm, with an overall length of 30 mm. A hex cap screw has a hexagonal head, designed to be driven by a wrench.

• External Hex Drive
• Class 8.8 Material Grade/Class
• System of Measurement: Metric

Product Highlights

The hex cap screws allow for greater torque than traditional circular screws and are installed or removed with socket wrenches.

Product Information

Standard Information

• Brand: MIDWEST FASTENER
• Manufacturer Part Number: 50478
• Country of Origin: China

Technical Specifications

• Measuring Type: Metric
• Material: Steel
• Grade: 8.8
• Finish: Zinc Plated
• Thread Type: Coarse
• Thread Size: M12-1.75
• Hex Size: 18 mm
• Overall Length: 30 mm
• MFR #: 50478
• Zoro #: G802517710
• UPC #: 738287504781
• Country of Origin: China
• Fastener Length: 30 mm
• Thread Length: 30mm
• Diameter 1: 12mm
• Diameter 2: 21mm
• System of Measurement: Metric
• Drive: External Hex
• Material Grade/Class: Class 8.8
• Standards: DIN 933
• Item: Hex Head Cap Screw
• Length: 30mm
• Diameter: 12mm
• Head Type: Hex
• Threads Per Inch: 1.75
• Brand: Midwest Fastener
• Product type: Hex Bolt
