Midwest Electric U075CTL010 MW 100A SURF 50/30/20GFCI TWIN LUGS

Product Description

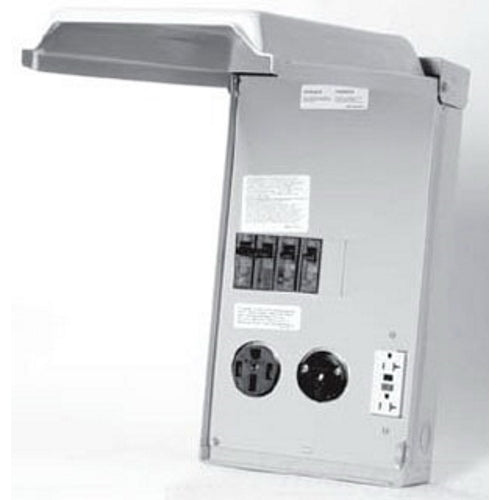

Midwest Electric U075CTL010 serves as a power outlet pedestal designed for outdoor applications. It operates at 120/240 VAC with a 100 Amp rating, offering a single phase option and three GFCI receptacles (50/30/20). The product features a rugged NEMA 3R enclosure, built from galvanized steel, which enhances durability in varied weather conditions.

• Includes 50/30/20 GFCI receptacles
• Constructed for both safety and convenience
• All components are factory wired to reduce installation time

Product Highlights

This power outlet pedestal is ideal for commercial and residential use, especially for powering outdoor equipment. The heavy-duty design and factory assembly ensure reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Midwest Electric Products
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Phase: 1

Technical Specifications

• Circuit Breaker Type: CB130/CB120/CB250/GFI120
• Enclosure Type: NEMA 3R
• Feed Type: Overhead
• Material: Steel
• Mounting Type: Surface
• Short Circuit Current Rating: 10 kA
• Wire Size: 14 to 8 AWG, 14 to 1/0 AWG, 12 to 8 AWG, 12 to 1/0 AWG, 14 to 10 AWG
