Midwest Electric U065P MW 60A GD ACD NF 10HP STEEL N3R

Product Description

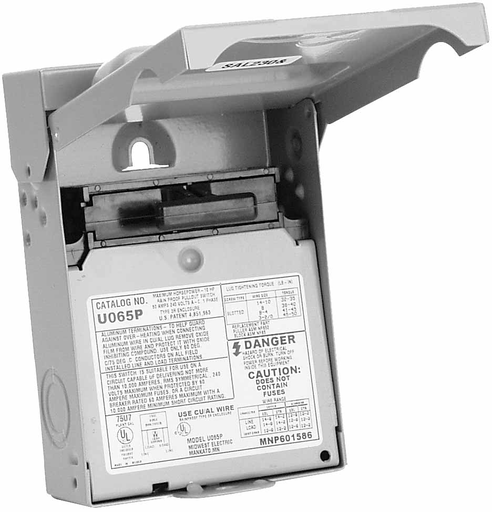

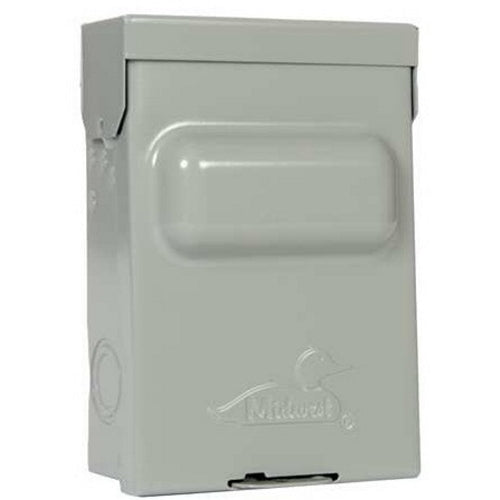

Midwest Electric U065P is a non-fusable AC disconnect switch designed for reliable performance in electrical applications. It operates at a voltage rating of 240 VAC and has a current rating of sixty amps, suitable for equipment requiring up to ten horsepower. The switch features a NEMA three R enclosure for surface mounting, ensuring durability and protection against environmental conditions.

• Removable pullers enhance user safety during maintenance.
• Door includes padlock provisions to prevent unauthorized access.
• Constructed with corrosion-resistant materials for longevity.

Product Highlights

This disconnect switch is ideal for users needing quick and safe disconnection of power to equipment, such as air conditioning units. The straightforward installation process is supported by numerous knockouts for efficient wiring.

Product Information

Standard Information

• Manufacturer: Midwest Electric Products
• Model Number: U065P

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Horsepower Rating: 10 hp
• Enclosure Type: NEMA 3R
• Number of Poles: 2
• Phase: 1
• Short Circuit Current Rating: 10 kA
• Dimensions: 7-1/4 in H x 5 in W x 2-1/8 in D
