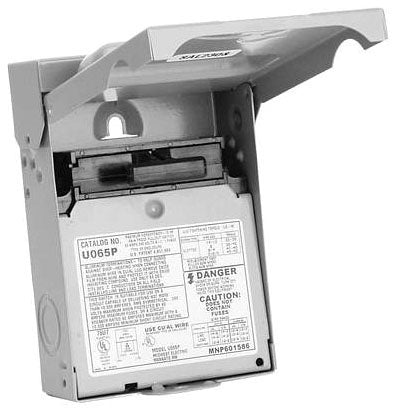

Midwest Electric U065P Metallic Air Conditioner Disconnect 60A Non-Fused Pullout NEMA 3R

Product Description

The Midwest Electric U065P is a 60 amp metallic air conditioner disconnect designed for reliable outdoor use. It features a non-fused pullout design housed in a NEMA three R enclosure. Its dimensions are seven and one-fourth inches high, five inches wide, and two and one-eighth inches deep.

• UL and CUL approved for safety
• Flexible wire size capability from fourteen to three AWG
• Easy surface mounting for installation

Product Highlights

The U065P disconnect is made with rugged metallic materials for durability and protection against the elements. It is ideal for HVAC applications where safety and compliance with standards are crucial.

Product Information

Standard Information

• Manufacturer: Midwest Electric Products
• Fuse Provision: Non-Fused

Technical Specifications

• Approval: UL, CUL
• Enclosure Type: NEMA 3R
• Power Rating: 10 HP
• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Dimensions: 7.25 inches x 5 inches x 2.125 inches
• Wire Size Compatibility: 14 to 8 AWG Solid, 14 to 3 AWG Stranded (Copper), 12 to 8 AWG Solid, 12 to 3 AWG Stranded (Aluminum)
• Standards and Approvals: RoHS Compliant, ARRA Compliant, Buy American Act Compliant, cUL/UL Listed
