MIDWEST ELECTRIC PRODUCTS U065F1 MW 60A GD ACD F 10HP STEEL N3R

Product Description

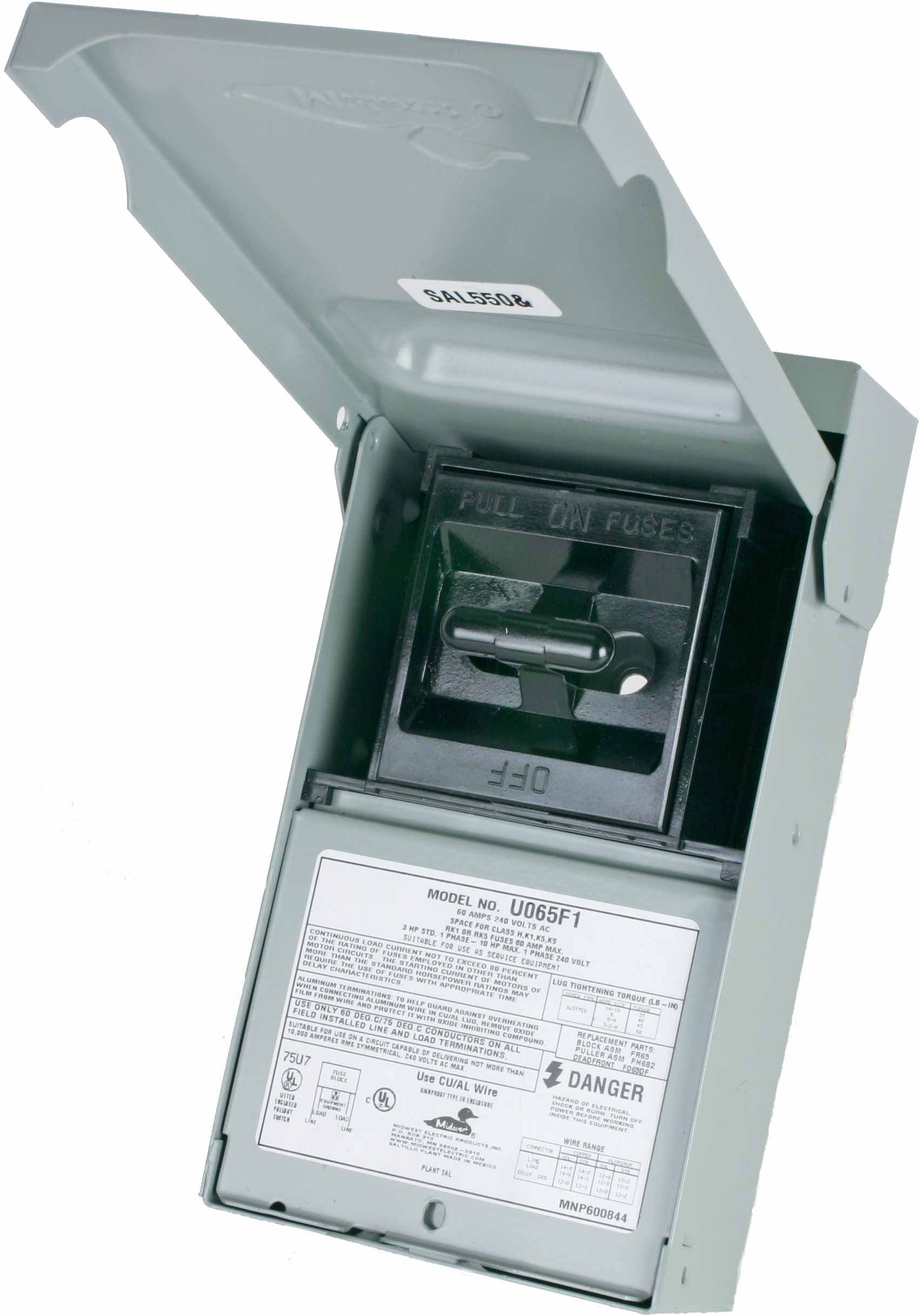

The MIDWEST ELECTRIC PRODUCTS U065F1 is a reliable fused pull-out AC disconnect switch. It operates at 120/240 VAC, with a 60 A amperage rating and a maximum load capacity of 10 hp. The enclosure is designed to meet NEMA 3R standards, suitable for outdoor applications. Its compact dimensions are nine inches high, five inches wide, and two and one-eighth inches deep, constructed from durable steel and finished with a galvanized/powder coating.

• Removable pullers for enhanced safety during maintenance.
• Padlock provisions in the door to ensure security.
• Three-piece construction allows for easier mounting and wiring.

Product Highlights

This switch is listed for use as a service entrance. The design includes multiple knockouts for quicker installation and wiring options.

Product Information

Standard Information

• Manufacturer: MIDWEST ELECTRIC PRODUCTS
• UPC: 784567300055

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Horsepower: 10 hp
• Dimensions: 9 in H x 5 in W x 2-1/8 in D
• Enclosure Type: NEMA 3R
• Material: Steel
• Short Circuit Rating: 10 kA
• Phase: 1
