MIDWEST ELECTRIC PRODUCTS T1240UL TERMINAL BOX 400A 16X29 1PH

Product Description

The MIDWEST ELECTRIC PRODUCTS T1240UL Terminal Box is designed for efficient electrical distribution. This unit is ideal for 1-phase installations and handles a maximum electrical rating of 400 Amps at 240 Volts AC. The box measures twenty-nine and one-half inches in height, sixteen inches in width, and five inches in depth. It features a knockout cable entry and is constructed from durable steel with a zinc-coated electro-deposition paint finish.

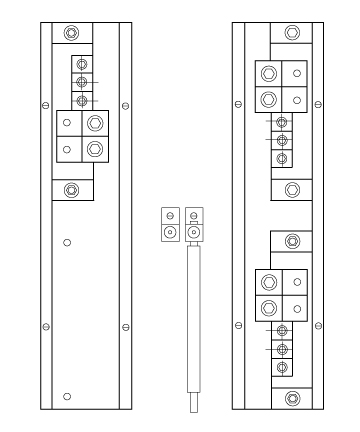

• Terminals accept copper or aluminum wire with factory installed terminal bars.
• Features extensive concentric knockouts for flexible cable entry options.
• Constructed for both indoor and outdoor applications.

Product Highlights

This terminal box is suitable for converting overhead to underground services, multi-circuit wiring, and is compliant with ARRA and Buy American Act standards.

Product Information

Standard Information

• Brand: MIDWEST ELECTRIC PRODUCTS
• MPN: T1240UL

Technical Specifications

• Type: 1-Phase
• Electrical Ratings: 400 A, 240 VAC
• Height: 29-1/2 inches
• Width: 16 inches
• Depth: 5 inches
• Material: Steel
• Finish: Zinc Coated/Electro-Deposition Paint
• NEMA Rating: NEMA 1/3R
• Panel Size: 16 x 29 inches
• Cable Entry Size: Knockout
