MIDWEST ELECTRIC PRODUCTS P065P1 MW 60A ACD NF 10HP NON-METAL N3R

Product Description

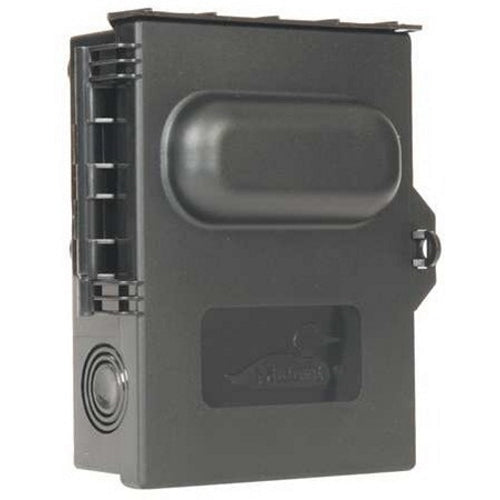

The MIDWEST ELECTRIC PRODUCTS P065P1 is a 60 amp AC disconnect switch designed for non-fused pull-out applications. It operates at 120/240 VAC and supports up to 10 horsepower. This switch is equipped with a NEMA 3R enclosure suitable for surface mounting. The dimensions are seven inches high, five inches wide, and two and one-eighth inches deep.

• Non-fused pull-out type for quick disconnection
• Rated for 60 A with a 10 kA short circuit rating
• Constructed from Noryl thermoplastic for durability

Product Highlights

This disconnect switch provides reliable performance for electrical applications with its corrosion-resistant enclosure and safety features.

Product Information

Standard Information

• Manufacturer: MIDWEST ELECTRIC PRODUCTS
• UPC: 784567301007

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Horsepower: 10 hp
• Number of Poles: 2
• Phase: 1
• Enclosure Type: NEMA 3R
• Material: Noryl/Thermoplastic
• Mounting Type: Surface
• Short Circuit Current Rating: 10 kA
• Dimensions: 7 in H x 5 in W x 2-1/8 in D
• Type: Non-Fused Pull-Out
