MIDWEST ELECTRIC PRODUCTS P035F MIDWEST 30A GD ACD F 3HP PLASTIC N3R

Product Description

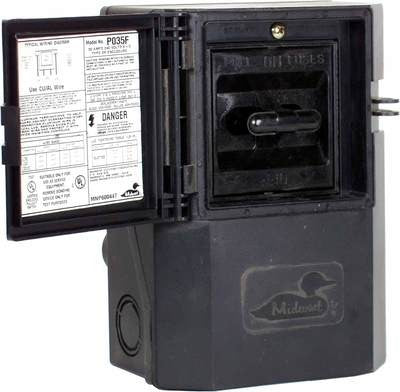

The MIDWEST ELECTRIC PRODUCTS P035F is a fused pull-out AC disconnect switch designed for safety and durability. This product operates at 120/240 VAC with a rating of 30 amperes and is suitable for a three horsepower motor. It is intended for surface mounting and comes with a NEMA 3R enclosure.

• Removable pullers for safe maintenance
• Corrosion-resistant Noryl enclosure
• Listed for use as a service entrance

Product Highlights

This disconnect switch features a three-piece construction that simplifies installation and enhances wiring access. Its numerous knockouts allow for efficient wiring, saving time and costs during setup.

Product Information

Standard Information

• Brand: MIDWEST ELECTRIC PRODUCTS
• Type: Fused Pull-Out

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120/240 VAC
• Horsepower: 3 hp
• Enclosure Type: NEMA 3R
• Number of Poles: 2
• Phase: 1
• Material: Noryl/Thermoplastic
• Short Circuit Current Rating: 10 kA
• Dimensions: 8 in H x 5-3/4 in W x 3-1/8 in D
• Mounting Type: Surface
